Broilmaster R3B-1 Grill Parts

Broilmaster logo

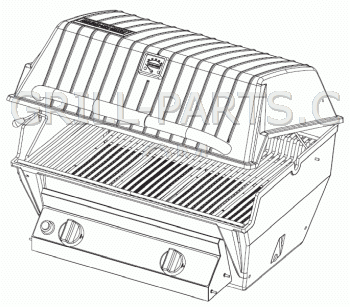

Broilmaster R3B-1



Highest quality replacement parts for your Broilmaster R3B-1 - Free USA shipping $49 or more* - No Sales Tax*



Broilmaster R3B-1 owners manual and diagrams
Diagrams & owners manual not available for grill model# R3B-1. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!




Replacement grill parts to fit Broilmaster model: R3B-1
On this page you'll find all of the parts that fit model Broilmaster R3B-1. If the part you're shopping for isn't included below, you might find it using the category buttons on the right side of the page. For example, if your looking for a warming rack and there are none here, click the warming rack button to see all of the racks we have for Broilmaster grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Broilmaster R3B-1 BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Broilmaster model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



R3B-1 Burners

B101030
Click for photos
T3 Burner, sold individually, (2 required), fits T3 all for Broilmaster model R3B-1.

Part Number: B101030
Dimensions: 14 5/16” x 7 3/8”
Weight: 1.15

$68.88

Qty


B102180
Click for photos
Infrared burner, with removable screen for Broilmaster model R3B-1. Includes B101271 electrode and connecting wire. Used in R3, two required and used in R3B, one required.

Part Number: B102180
Weight: 5.7

$229.35

Qty


B102181
Click for photos
Infrared burner removable screen for infrared burner B102180 for Broilmaster model R3B-1.

Part Number: B102181
Weight: 1.0

$19.45

Qty


==> All Broilmaster Burners.






R3B-1 Cooking Grids

DPA111
Click for photos
Stainless steel rod cooking grids for size 3 grill head (set of 2) for Broilmaster model R3B-1.
  • Heavy gauge 8mm rod construction
  • Restaurant quality stainless steel
  • 2 piece set
  • Fits: P3, D3, DU3, R3, U3, S3, G3, and R3.

Note: This is the same as part# B101281. Also replaces cast iron grid DPP103, which is no longer available.

Part Number: DPA111
Dimension Front-to-Back: 17 1/8”
Dimension Side-to-Side: 25 1/2”
Material: Stainless steel
Weight: 15.8

$161.33

Qty


62503
Click for photos
Cast iron ”water fall style/mutliple level” cooking grids (set of 3) for Broilmaster model R3B-1. Porcelain enameled, glossy finish.

Part Number: 62503
Dimension Front-to-Back: 16 13/16”
Dimension Side-to-Side: 25 1/8”
Material: gloss cast iron
Weight: 21.10

$157.30

Qty


==> All Broilmaster Cooking Grids.






R3B-1 Rock/Briquette Grates

B101369
Click for photos
Briquet Rack for R3B Only - Covers Blue Flame Burner Side.

Part Number: B101369
Dimension Front-to-Back: 12 1/4”
Dimension Side-to-Side: 13 5/16”
Material: porcelain steel
Weight: 3.45

$40.32

Qty


==> All Broilmaster Rock/Briquette Grates.






R3B-1 Heat Plates

B101154
Click for photos
Burner Shield for T3 for Broilmaster model R3B-1.

Part Number: B101154
Weight: 1.0

$10.65

Qty


DPP106
Click for photos
Stainless steel heat shield for Broilmaster model R3B-1. Fits T3 (all). Also replaces part# B101045.
AKA part# B101104.

Part Number: DPP106
Dimension Front-to-Back: 8”
Dimension Side-to-Side: 16 3/4”
Material: Stainless steel
Weight: 1.0

$57.57

Qty


==> All Broilmaster Heat Plates.






R3B-1 Igniter Components

B101212
Click for photos
Collector Box Ass. (Single Piece, 2 required), fits all T3. Also replaces part# B101031.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: B101212
Weight: 0.1

$28.68

Qty


B101082
Click for photos
Ignitor aluminum tube spacer 1/2” x 1 5/8”.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: B101082
Weight: 0.01

$2.78

Qty


B101271
Click for photos
Electrode and wire for infrared burner Ignitor (2 req for R3, 1 req for R3B) fits R3, R3B).

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: B101271
Weight: 0.05

$15.60

Qty


B072218
Click for photos
Electronic ignitor head with two (2) male spade connectors. Fits 3/P4/P5/D3/D4
  • Uses 1 AA battery (not included)
  • Requires 7/8” mounting hole

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: B072218
Weight: 0.2

$31.52

Qty


==> All Broilmaster Igniter Components.






R3B-1 Knobs and Handles

R3918
Click for photos
Knob-Burners-Main and Side, Fits SSG-36-1, T3 (all).
  • Off position D-Value: 12 o'clock
  • Knob diameter: 2 1/2”
  • Socket diameter: 5/16”
  • Knob shaft: None (flat)


Part Number: R3918
Weight: 0.2

$14.56

Qty


==> All Broilmaster Knobs and Handles.






R3B-1 Heat indicators and Meat Thermometers

TG-2B
Click for photos
Universal bolt-on heat indicator replaces most factory installed indicators with 1 1/2” bolt centers. Stainless steel case.

Part Number: TG-2B
Weight: 0.2

$11.37

Qty


==> All Broilmaster Heat indicators and Meat Thermometers.






R3B-1 Accessories

45887
Click for photos
Natural lava rock processed and screened for uniformity. 7 lb. bag is enough for all full sized grills. Click the photo to find easy steps for installing lava rocks.

Part Number: 45887
Material: pummise
Weight: 7.0

$24.48

Qty


BQ-5
Click for photos
Durable 2 5/16” round briquettes
  • Self-cleaning
  • Control flare-ups while holding an even heat pattern.
  • About 53 pieces, covers approximately 275 sq. inches.
  • Fits all gas grills


Part Number: BQ-5
Weight: 7.2

$31.19

Qty


SSST
Click for photos
Stainless steel smoker box with cover. For use with all grills. Insert moistened wood chips (not included) for your favorite smoke flavor, 8 3/4” x 3 1/2” x 1 1/2”.


Part Number: SSST
Material: stainless steel
Weight: 1.5

$24.00
SALE  $19.49
Qty


SF-1
Click for photos
Stainless steel flipper. The ultimate spatula tool, specially curved for perfect flips every time. 18” overall.

Part Number: SF-1
Dimensions: 18
Material: stainless steel
Weight: 0.4

$15.90

Qty


WB-7
Scrub brushes. Plastic grill scrubber. Cleans all types of cooking grids. Plastic grip handle.

Part Number: WB-7
Dimensions: 6” x 3 1/2”
Weight: 0.2

$5.96

Qty


==> All R3B-1 Accessories.
