Charbroil 466720509

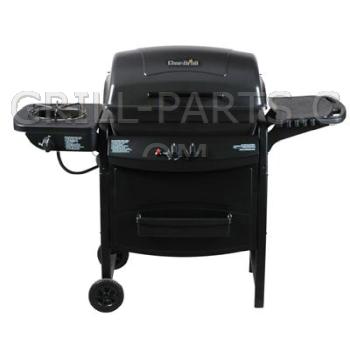

Char-Broil LP gas outdoor BBQ grill with side burner



Highest quality replacement parts for your Charbroil 466720509 - Free USA shipping $49 or more* - No Sales Tax*



Charbroil 466720509 owners manual and diagrams
Click the small images on the right to view Charbroil 466720509 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!



Charbroil 466720509-463324949030-PartsExpS1.jpg

Replacement grill parts for the Charbroil model: 466720509
All of the parts we have for Charbroil 466720509 are shown on this page. We might not show the part you need here but we may still have it, or a functional equivalent. In this case, try the category buttons on the right. For example, if your looking for a heat indicator and there are none here, click the heat indicator button to see all we have for Charbroil grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct Charbroil 466720509 BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Charbroil model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



466720509 Venturis

Universal Spider Guards. Helps prevent dangerous flashback fires caused by spider webs in venturi tubes.Stainless steel spider guards slip over the air shutter on most venturi tubes to help keep the spiders out. For 3/4” venturi tubes.

Part Number: SG-B
Material: stainless steel
Weight: 0.1

$7.62

Qty








466720509 Cooking Grids

Porcelain steel cooking grid for Charbroil model 466720509. Porcelain enameled, glossy finish. Sold individually.

Part Number: 51051 (Replaces Charbroil 80017446)
Dimension Front-to-Back: 13 3/4”
Dimension Side-to-Side: 25 1/4”
Material: porcelain steel wire
Weight: 3.4

$61.45

Qty








466720509 Heat Plates

Porcelain enameled steel heat plate for Charbroil model 466720509.

Part Number: 98401 (Replaces Charbroil 80009840)
Dimension Front-to-Back: 6 1/8”
Dimension Side-to-Side: 23 13/16”
Material: porcelain steel
Weight: 1.13

$33.75

Qty








466720509 Igniter Components

Universal 2 3/4” adaptor wire with a round female end and a male spade end that has a protective cover.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 03199C
Weight: 0.05

$4.37

Qty


Universal push-button igniter. Round male connector. Includes locking nut.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: UP-4B (Replaces Charbroil 80008490)
Weight: 0.3

$8.84

Qty


Collector Box and electrode for Charbroil top ported TBBC & TLBBC burners.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-28B (Replaces Charbroil 80012227)
Weight: 0.2

$9.60

Qty


20” igniter wire with female spade and round connector.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-7B
Weight: 0.02

$4.75

Qty


46” Wire with female spade connectors and square plastic connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-30B
Dimensions: 46
Weight: 0.1

$7.10

Qty


16” Universal Ignitor Wire

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-48B
Dimensions: 16
Weight: 0.05

$6.00

Qty


Ignitor electrode and collector box assembly. Fits all grills equiped with the Charbroil Masterflame and MasterFlame II burner systems, including grill brands Charbroil, Coleman, Kenmore, and Thermos. Fits on our burner part numbers BBC, LBBC, TBBC, and TLBBC.
    Includes:
  • Gas collector box
  • Ceramic electrode and wire
  • Mounting hardware

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-11B
Weight: 0.3

$9.34

Qty








466720509 Knobs and Handles

Universal black control knob. Counter-clockwise bezel.
  • Off position D-Value: Selectable
  • Knob diameter: 2 1/16”
  • Socket diameter: 8mm
  • Knob shaft: None


Part Number: 01800
Dimensions: 2 1/16” x 2 1/16”
Material: plastic
Weight: 0.05

$6.55

Qty


Black control knob for Fire Magic Custom, Regal, and Gourmet grills.
  • Off position D-Value: 6 o'clock
  • Knob diameter: 2”
  • Socket diameter: 8mm
  • Knob shaft: None


Part Number: 01700 (Replaces Charbroil 80000035)
Dimensions: 2” x 2”
Material: plastic
Weight: 0.1

$10.84

Qty








466720509 Accessories

Stainless steel smoker box with cover. For use with all grills. Insert moistened wood chips (not included) for your favorite smoke flavor, 8 3/4” x 3 1/2” x 1 1/2”.


Part Number: SSST
Material: stainless steel
Weight: 1.5

$24.00
SALE  $27.05
Qty


WB-1
12” long wood handle brass bristle grid brush with scraper and leather hang strap.

Part Number: WB-1
Dimensions: 12
Weight: 0.4

$10.90

Qty
