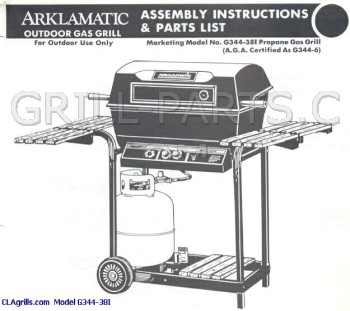

Arkla G344-38I Grill Parts

Stainless steel burner and venturi assembly kit for Arkla model G344-38I. Contains one standard EDSB SS H burner and two V-12 adjustable universal venturis.

Part Number: EDSB+V-12
Dimensions: 7 1/4” x 15 1/2”
Material: stainless steel
Weight: 2.0

Standard stainless steel burner with adjustable legs for Arkla model G344-38I. Comes with gasket and scews.

Part Number: EDSB
Dimensions: 7 1/4” x 15 1/2”
Material: stainless steel
Weight: 1.5

Deluxe stainless steel twin-venturi burner and venturi assembly for Arkla model G344-38I. Includes:

• DSB stainless steel H burner.
• Deluxe burners have a special spot-welded mounting bracket for optional IG-5B universal tongue-style collector box and electrode. The IG-5B can be used in applications where the factory ignition system is irrepairable, non existant, or otherwise unusable.
• Two (2) V-12 stainless steel single venturi.
• Venturi gasket and mounting nuts (venturi mounts with nuts and bolts, not screws).
• 5 year MHP limited warranty.
• Click here for features of MHP deluxe SS burner.

Part Number: DSB+V-12
Dimensions: 8 1/8” x 16”
Material: stainless steel
Weight: 2.0

Deluxe stainless steel twin-venturi burner for Arkla model G344-38I. Includes:

• DSB stainless steel H burner (venturi not included).
• Deluxe burners have a special spot-welded mounting bracket for optional IG-5B universal tongue-style collector box and electrode. The IG-5B can be used in applications where the factory ignition system is irrepairable, non existant, or otherwise unusable.
• Venturi gasket and mounting nuts (venturi mounts with nuts and bolts, not screws).
• 5 year MHP limited warranty.
• Click here for features of MHP deluxe SS burner.

Part Number: DSB
Dimensions: 8 1/8” x 16”
Material: stainless steel
Weight: 1.5

Cast iron burner and venturi assembly kit for Arkla model G344-38I. Comes with all necessary gaskets and screws.

Part Number: 20502-72401
Dimensions: 15 7/8” x 8”
Material: cast iron
Weight: 8.0

cast iron burner head for Arkla model G344-38I.

Part Number: 20502
Dimensions: 15 7/8” x 8”
Material: cast iron
Weight: 7.7

two venturi gaskets with screws

Part Number: 00400
Dimensions: 3 1/16” x 1 1/4”
Weight: 0.05

Stainless steel single venturi. Flexible and adjustable from 8” to 11”. Gasket & screws not included, see part # SHK4. Sold individually.

Part Number: V-12
Dimensions: 11
Material: stainless steel
Weight: .3

Single Gasket Kit Economy Burners

Part Number: SHK4
Weight: 0.01

Universal stainless venturi flexible and adjustable from 8” to 11” and sold individually. Used to replace venturis for virtually any grill model for which no exact fit venturi is available. Gasket & screws not included, see part numbers 00400 or SHK4.

Part Number: 72401
Dimensions: 7 1/2” x 11”
Material: zinc plated steel
Weight: 0.3

Universal Spider Guards. Helps prevent dangerous flashback fires caused by spider webs in venturi tubes.Stainless steel spider guards slip over the air shutter on most venturi tubes to help keep the spiders out. For 3/4” venturi tubes.

Part Number: SG-B
Material: stainless steel
Weight: 0.1

Chrome plated cooking grid for Arkla model G344-38I. Made in USA.

Part Number: CG-18
Dimension Front-to-Back: 14”
Dimension Side-to-Side: 22 1/4”
Material: Chrome steel
Weight: 2.5

Chrome plated cooking grid for Arkla model G344-38I. Made in USA.

Part Number: CG-6
Dimension Front-to-Back: 13 3/4”
Dimension Side-to-Side: 20”
Material: Chrome steel
Weight: 2.9

Rock grate for holding lava rock or ceramic briquettes.

Part Number: BG-4
Dimension Front-to-Back: 11 5/8”
Dimension Side-to-Side: 19”
Material: Carbon steel
Weight: 2.7

Heat Plate/ Flame Tamer not known for Arkla model G344-38I. Our parts information for this grill model is incomplete, and we really don't know with certainty which heat plate fits this model. It may be that we have the part but don't show it here due to data or other error.

If you know the original OEM part number, try searching for it in the search box at the top of this page.

You can also browse through all of the heat plates we carry for your brand grill. If we don't have the exact fit for your grill, we may have a suitable replacement part. Measure your existing part so you'll know exactly what size is needed.

If you have this grill model and know the number and dimensions of your original heat plates, click here to send an email to our GrillDr that includes this information. We greatly appreciate your help.

Part Number: HP-DUMMY
Weight: 1.0

20” Ignitor adapter wire with female spade connector and male round connector. Used primarily on Ducane models 7100 and 7200 to extend the wire from the 03758 collector box and electrode to the electronic spark generator (igniter).

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03750
Dimensions: 1/16
Weight: 0.05

Universal adapter wire with male round and female spade connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03751
Weight: 0.05

Tongue style collector box for burner mounted applications. Includes preinstalled electrode with round female connector end and 20” wire. Fits on all of our Deluxe stainless H burners (LB, SB, DLB, DSB) using special mounting bracket on these burners. Will not fit on cast iron burners (see part IG-15B for cast iron burner applications).

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-5B
Weight: 0.3

Universal collector box with electrode and wire. Fits most H burners, cast iron and stainless. Mounts to burner using venturi screws. Slotted construction allow universal adjustment of electrode position.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-15B
Weight: 0.3

Brass spud orifice with 5/16” x 32 thread size. Has #70 starter hole. Must be drilled to proper drill size.

If you would like us to drill the orifice(s) for you, there is a single $15 fee for this service, which will be added to the order when processed. Please tell us the number of burners in your grill and the total BTUs of your grill (less side burner and rotisserie burner, if any). BTU rating information can usually be found on the grill's CSA certification tag, located somewhere on the grill. Please furnish this, along with any other information you deem relevant, in the Message to CLA box during checkout.

Part Number: 31600
Dimensions: 0 3/8” x 0 7/16”
Material: brass
Weight: 0.01

Dual brass LP valve assembly. Includes left and right control valves and valve manifold. Fits Arkla up-front control grills and others requiring 45 degree angle valves.

• For use with LP gas
• Includes two orifices drilled to #57 drill size
• Includes pre-assembled 45 degree angle fitting, not shown in photo

Part Number: VLV-28
Material: brass
Weight: 1.1

Durable 2 5/16” round briquettes

• Self-cleaning
• Control flare-ups while holding an even heat pattern.
• About 53 pieces, covers approximately 275 sq. inches.
• Fits all gas grills

Part Number: BQ-5
Weight: 7.2

Ultimate ceramic grill bricks. 18 ceramic bricks covers 165 sq. inches. Designed to replace existing lava rock and ceramic briquettes.

• Self cleaning
• Reduces flare-ups
• Eliminates cold spots
• Lasts longer
• Stays hotter longer
• Each brick measures 3” x 3” x3/8”

Part Number: 43118
Weight: 2.7

Natural lava rock processed and screened for uniformity. 7 lb. bag is enough for all full sized grills. Click the photo to find easy steps for installing lava rocks.

Part Number: 45887
Material: pummise
Weight: 7.0

Cast iron smoker box with six oblong venting holes. Designed to release wood smoke. Make sure this part will fit into your grill before ordering 8 3/8” x 5 1/4” x 1 3/8”.

Part Number: 00150
Dimensions: 5 1/4” x 8 3/8”
Material: cast iron
Weight: 3.90

Chrome plated rib/potatoe rack. Spaces up to 6 racks of ribs and 6 potatoes. Fits all grills. 12” x 7 1/4”.


Part Number: RR-2
Material: chrome steel
Weight: 1.0

Replacement brass bristle brush head for WB-8 brush. Screws included.

Part Number: WB-8RH
Dimensions: 18 1/2
Material: stainless steel
Weight: 0.2
