Brinkmann Elite Series 4685 810-4685-0 Grill Parts

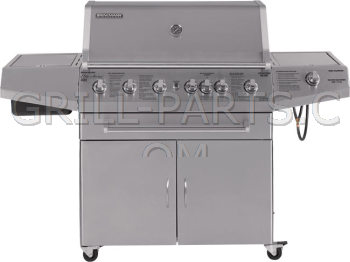

Brinkmann Elite Series 4685 - 6 Burner Gas Grill

Highest quality replacement parts for your Brinkmann Elite Series 4685 810-4685-0 - Free USA shipping $49 or more* - No Sales Tax*

Brinkmann 810-4685-0 owners manual and diagrams

Click the small images on the right to view Brinkmann 810-4685-0 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Brinkmann 810-4685-0-31899631449839-PartsExpS1.gif

Replacement grill parts to fit Brinkmann Elite Series 4685 810-4685-0

This page shows all of the parts we know fit model Brinkmann 810-4685-0. If the part you need is not shown below, try clicking the appropriate category button on the right side of the page. For example, if your looking for a burner and there are none here, click the burner button to see all the burners we have for Brinkmann grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Brinkmann 810-4685-0 BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Brinkmann model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

810-4685-0 Burners

Click for photos

154-2500-0-R-X6 Cast iron burners for Brinkmann model 810-4685-0. Set of six (6). Fits some Brinkman and Grill Zone 6-Burner gas grills. May fit other grill models. This aftermarket burner replaces original burner part# 154-2500-0.

This a 6-pack of burners.

Part Number: 154-2500-0-R-X6 (Replaces Brinkmann 154-2500-0-X6)
Dimensions: 12 7/8” x 2 1/8”
Material: cast iron
Weight: 13.2

Click for photos

154-2500-0-R Cast iron burner for some Brinkmann and Grill Zone 3, 4, and 6 burner grills for Brinkmann model 810-4685-0. Sold individually.

This aftermarket part replaces original Brinkmann part# 154-2500-0.

Part Number: 154-2500-0-R (Replaces Brinkmann 154-2500-0)
Dimensions: 12 7/8” x 2 1/8”
Material: cast iron
Weight: 2.2

==> All Brinkmann Burners.

810-4685-0 Burner Brackets and Carryovers

Click for photos

Main burner support bracket with carryovers; made of stainless steel. Replaces Brinkmann OEM part# 600-4600-0. Made in USA.

Part Number: CLA-MS0069 (Replaces Brinkmann 600-4600-0)
Dimensions: 36 1/4
Material: stainless steel
Weight: 1.3

==> All Brinkmann Burner Brackets and Carryovers.

810-4685-0 Cooking Grids

Click for photos

Cast iron cooking grid for Brinkmann model 810-4685-0. Porcelain treated, matte finish. Sold individually, number required varies by grill model.

Part Number: CG-63P-CI (Replaces Brinkmann 115-4425-B)
Dimension Front-to-Back: 16 15/16”
Dimension Side-to-Side: 11 3/4”
Material: cast iron
Weight: 7.15

==> All Brinkmann Cooking Grids.

810-4685-0 Heat Plates

Heat Plate/ Flame Tamer not known for Brinkmann model 810-4685-0. Our parts information for this grill model is incomplete, and we really don't know with certainty which heat plate fits this model. It may be that we have the part but don't show it here due to data or other error.

If you know the original OEM part number, try searching for it in the search box at the top of this page.

You can also browse through all of the heat plates we carry for your brand grill. If we don't have the exact fit for your grill, we may have a suitable replacement part. Measure your existing part so you'll know exactly what size is needed.

If you have this grill model and know the number and dimensions of your original heat plates, click here to send an email to our GrillDr that includes this information. We greatly appreciate your help.

Part Number: HP-DUMMY
Weight: 1.0

==> All Brinkmann Heat Plates.

810-4685-0 Igniter Components

Click for photos

46” Wire with female spade connectors and square plastic connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-30B
Dimensions: 46
Weight: 0.1

Click for photos

16” Universal Ignitor Wire

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-48B
Dimensions: 16
Weight: 0.05

==> All Brinkmann Igniter Components.

810-4685-0 Heat indicators and Meat Thermometers

Click for photos

heat indicator

Part Number: 02351 (Replaces Brinkmann 072-2400-0)
Dimensions: 2 5/8” x 2 5/8”
Weight: 0.2

==> All Brinkmann Heat indicators and Meat Thermometers.

810-4685-0 Accessories

Click for photos

Stainless steel smoker box with cover. For use with all grills. Insert moistened wood chips (not included) for your favorite smoke flavor, 8 3/4” x 3 1/2” x 1 1/2”.

Part Number: SSST
Material: stainless steel
Weight: 1.5

Click for photos

15” Stainless steel tong.

Soft comfort grip
Locking mechanism

Part Number: 40259
Dimensions: 15
Material: stainless steel
Weight: 0.14

Click for photos

EZ Check Gas level indicator. Accurate from -22° to 104°F. Magnetic back. Works on all sizes of tanks.

Part Number: 00030
Weight: 0.1

Click for photos

8” Plastic grill brush with scraper.

Part Number: 77330
Weight: 0.3

==> All 810-4685-0 Accessories.
