Brinkmann 810-7420-F Grill Parts

Brinkmann logo



Brinkmann 810-7420-F

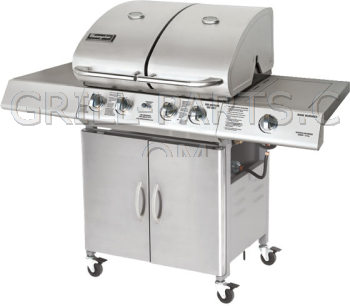

Charmglow 4-Burner Stainless Steel Gas Grill



Highest quality replacement parts for your Brinkmann 810-7420-F - Free USA shipping $49 or more* - No Sales Tax*



Brinkmann 810-7420-F owners manual and diagrams
Diagrams & owners manual not available for grill model# 810-7420-F. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!




Replacement grill parts to fit Brinkmann model: 810-7420-F
On this page you'll find all of the parts that fit model Brinkmann 810-7420-F. If the part you need is not shown below, try clicking the appropriate category button on the right side of the page. For example, if your looking for a warming rack and there are none here, click the warming rack button to see all of the racks we have for Brinkmann grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Brinkmann 810-7420-F BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Brinkmann model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



810-7420-F Burners

FP-BR1001
Click for photos
Adjustable universal front-to-back tube burner with top-ported flame holes for Brinkmann model 810-7420-F. This burner may not work with existing ignition electrodes and back burner cross-overs.
  • Variable length burner adjusts from 13 1/2” to 17 1/2”.
  • Includes extra hardware and mounting brackets to accommodate almost all grills.
  • Comes with complete installation instructions and diagrams.

WARNING: Before ordering this universal burner, please verify that it will work in your grill per the specifications above. If you order this universal burner and it does not work in your grill, please review our Return Policy for ”Ordered Wrong Part.” You will be responsible for all shipping fees.


Part Number: FP-BR1001
Material: stainless steel
Weight: 0.7

SALE  $19.99
Qty


CTB2
Click for photos
stainless steel burner for Brinkmann model 810-7420-F.

Part Number: CTB2
Dimensions: 16 1/4
Material: stainless steel
Weight: 1.0

$38.24

Qty


154-6430-0 / CTB3
Click for photos
Premium grade 304 stainless burner for Brinkmann model 810-7420-F.


Part Number: CTB3 (Replaces Brinkmann 154-6430-0)
Dimensions: 15 7/8
Material: stainless steel
Weight: 1.0

$36.60
SALE  $19.99
Qty


==> All Brinkmann Burners.






810-7420-F Burner Brackets and Carryovers

CLA-MS0296
Click for photos
SET OF 2 stainless steel rear burner bracket. Made in USA

Part Number: CLA-MS0296
Dimensions: 11 1/4
Material: stainless steel
Weight: 0.25

$29.68

Qty


==> All Brinkmann Burner Brackets and Carryovers.






810-7420-F Cooking Grids

115-7231-2 / CG-73P-CI-X3
Click for photos
Cast iron cooking grids for Brinkmann model 810-7420-F. SET OF THREE (3).
  • Porcelain treated, matte finish
  • 3 panels, each 17 5/8” x 8 3/4”
  • Total width: 26 1/4”


Part Number: CG-73P-CI-X3 (Replaces Brinkmann 115-7231-2)
Dimension Front-to-Back: 17 5/8”
Dimension Side-to-Side: 26 1/4”
Material: cast iron
Weight: 16.65

$117.87

Qty


==> All Brinkmann Cooking Grids.






810-7420-F Heat Plates

CLA-TS0156-X3
Click for photos
SET OF THREE/3 PACK Stainless steel Heat Distribution Plates/Flame Tamers for Brinkmann model 810-7420-F. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.e.

Part Number: CLA-TS0156-X3
Dimension Front-to-Back: 16 15/16”
Dimension Side-to-Side: 3 15/16”
Material: stainless steel
Weight: 2.1

$58.41

Qty


CLA-TS0156-X4
Click for photos
SET OF FOUR/4 PACK Stainless steel Heat Distribution Plates/Flame Tamers for Brinkmann model 810-7420-F. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.e.

Part Number: CLA-TS0156-X4
Dimension Front-to-Back: 16 15/16”
Dimension Side-to-Side: 3 15/16”
Material: stainless steel
Weight: 2.8

$74.84

Qty


BMHP1
Click for photos
Stainless steel heat distribution plate for Brinkmann model 810-7420-F.

Part Number: BMHP1
Dimension Front-to-Back: 16 3/4”
Dimension Side-to-Side: 3 7/8”
Material: stainless steel
Weight: 0.7

$21.09

Qty


==> All Brinkmann Heat Plates.






810-7420-F Igniter Components

119-4400-5 / TS-IG3007
Click for photos
Push-button electronic igniter with three (3) spade connectors. Comes with sliver or black cap per availability. Needs (1) AA battery (not included); requires 7/8” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: TS-IG3007 (Replaces Brinkmann 119-4400-5)
Weight: 0.2

$35.57

Qty


600-7541-B / IG-21B
Click for photos
Collector box with ceramic igniter electrode and wire.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-21B (Replaces Brinkmann 600-7541-B)
Weight: 0.2

$15.42

Qty


==> All Brinkmann Igniter Components.






810-7420-F Heat indicators and Meat Thermometers

072-7310-0 / 22551
Click for photos
Oval lid heat indicator. Three-hole mount with two threaded studs 1 1/2” offset on center. Requires 3/8” center hole for temperature sensor probe.

Part Number: 22551 (Replaces Brinkmann 072-7310-0)
Dimensions: 2 15/16” x 1 7/8”
Weight: 0.2

$14.85

Qty


==> All Brinkmann Heat indicators and Meat Thermometers.






810-7420-F Accessories

00150
Click for photos
Cast iron smoker box with six oblong venting holes. Designed to release wood smoke. Make sure this part will fit into your grill before ordering 8 3/8” x 5 1/4” x 1 3/8”.

Part Number: 00150
Dimensions: 5 1/4” x 8 3/8”
Material: cast iron
Weight: 3.90

$25.40

Qty


40240
Click for photos
16” Stainless Steel Tong/Turner Combination. 16” multi-use tool with red soft grip rubber inserts. Can be used as a turner, tong or both. Manual lock saves on storage space.

Part Number: 40240
Material: chrome steel
Weight: 0.9

$16.59

Qty


BB-5
Click for photos
Basting brush with angled oak handle. 18” overall length.

Part Number: BB-5
Dimensions: 18
Weight: 0.8

$8.84

Qty


RR-2
Click for photos
Chrome plated rib/potatoe rack. Spaces up to 6 racks of ribs and 6 potatoes. Fits all grills. 12” x 7 1/4”.


Part Number: RR-2
Material: chrome steel
Weight: 1.0

$13.30
SALE  $14.99
Qty


WB-8RH
Click for photos
Replacement brass bristle brush head for WB-8 brush. Screws included.

Part Number: WB-8RH
Dimensions: 18 1/2
Material: stainless steel
Weight: 0.2

$9.45

Qty


==> All 810-7420-F Accessories.
