Brinkmann 810-8401-F Grill Parts

Brinkmann logo

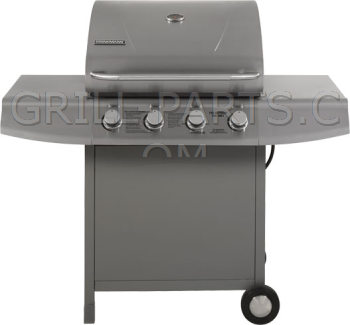

Brinkmann 810-8401-F

Charmglow 4 Burner Gas Grill



Highest quality replacement parts for your Brinkmann 810-8401-F - Free USA shipping $49 or more* - No Sales Tax*



Brinkmann 810-8401-F owners manual and diagrams
Diagrams & owners manual not available for grill model# 810-8401-F. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!




Replacement BBQ grill parts for Brinkmann model: 810-8401-F
All of the parts we have for Brinkmann 810-8401-F are shown on this page. If the part you're shopping for isn't included below, you might find it using the category buttons on the right side of the page. For example, if your looking for a Flame Tamer/Heat Plate and there are none here, click the Heat Plate button to see all of the Heat Plates we have for Brinkmann grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Brinkmann 810-8401-F BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Brinkmann model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



810-8401-F Burners

FP-BR1001
Click for photos
Adjustable universal front-to-back tube burner with top-ported flame holes for Brinkmann model 810-8401-F. This burner may not work with existing ignition electrodes and back burner cross-overs.
  • Variable length burner adjusts from 13 1/2” to 17 1/2”.
  • Includes extra hardware and mounting brackets to accommodate almost all grills.
  • Comes with complete installation instructions and diagrams.

WARNING: Before ordering this universal burner, please verify that it will work in your grill per the specifications above. If you order this universal burner and it does not work in your grill, please review our Return Policy for ”Ordered Wrong Part.” You will be responsible for all shipping fees.


Part Number: FP-BR1001
Material: stainless steel
Weight: 0.7

SALE  $19.99
Qty


CTB2
Click for photos
stainless steel burner for Brinkmann model 810-8401-F.

Part Number: CTB2
Dimensions: 16 1/4
Material: stainless steel
Weight: 1.0

$38.24

Qty


==> All Brinkmann Burners.






810-8401-F Cooking Grids

22005-181-R
Click for photos
Cast iron cooking grid for Brinkmann model 810-8401-F.
  • Sold individually
  • Number required varies, check your grill
  • Porcelain enameled, glossy finish


Part Number: 22005-181-R
Dimension Front-to-Back: 19 1/16”
Dimension Side-to-Side: 12 1/2”
Material: Cast iron
Weight: 7.5

$46.44

Qty


CG-58P-CI
Click for photos
Cast iron cooking grid for Brinkmann model 810-8401-F. Porcelain treated, matte finish. Sold individually, number required varies by grill model.

Part Number: CG-58P-CI
Dimension Front-to-Back: 19 1/8”
Dimension Side-to-Side: 12 3/8”
Material: cast iron
Weight: 8.35

$69.50

Qty


CG-58P-CI-X2
Click for photos
Cast iron cooking grids for Brinkmann model 810-8401-F. SET OF TWO (2) panels.
  • Porcelain treated, matte finish
  • Each panel measures 19 1/8” x 12 3/8”
  • Overall dimensions: 19 1/8” x 24 3/4”


Part Number: CG-58P-CI-X2
Dimension Front-to-Back: 19 1/8”
Dimension Side-to-Side: 12 3/8”
Material: cast iron
Weight: 16.7

$124.96

Qty


CLA-GS0190
Click for photos

Premium quality heavy duty stainless steel cooking grid for Brinkmann model 810-8401-F. Our USA-made premium stainless grids are simply the best obtainable. We have them manufactured here in the USA to our specifications and standards, which are high. Of course, they're not available anywhere else.

Unlike the standard issue stainless grids generally found today, which are typically low grade stainless and sometimes hollow, or coated carbon steel, our premium grids are made from solid high quality stainless steel rods. If you're looking for the best, you've found it. Just look at the weight of one of these grids, over 8 pounds of solid stainless each.

  • 304 commercial grade stainless steel
  • Large diameter 5/16” solid stainless rods
  • Dimensions: 19 1/4” x 12 1/2”
  • Made in USA.
  • Sold individually.


Part Number: CLA-GS0190
Dimension Front-to-Back: 19 1/4”
Dimension Side-to-Side: 12 1/2”
Material: stainless steel
Weight: 8.0

$77.54

Qty


==> All Brinkmann Cooking Grids.






810-8401-F Heat Plates

CLA-TS0156-X3
Click for photos
SET OF THREE/3 PACK Stainless steel Heat Distribution Plates/Flame Tamers for Brinkmann model 810-8401-F. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.e.

Part Number: CLA-TS0156-X3
Dimension Front-to-Back: 16 15/16”
Dimension Side-to-Side: 3 15/16”
Material: stainless steel
Weight: 2.1

$58.41

Qty


CLA-TS0156-X4
Click for photos
SET OF FOUR/4 PACK Stainless steel Heat Distribution Plates/Flame Tamers for Brinkmann model 810-8401-F. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.e.

Part Number: CLA-TS0156-X4
Dimension Front-to-Back: 16 15/16”
Dimension Side-to-Side: 3 15/16”
Material: stainless steel
Weight: 2.8

$74.84

Qty


BMHP1
Click for photos
Stainless steel heat distribution plate for Brinkmann model 810-8401-F.

Part Number: BMHP1
Dimension Front-to-Back: 16 3/4”
Dimension Side-to-Side: 3 7/8”
Material: stainless steel
Weight: 0.7

$21.09

Qty


==> All Brinkmann Heat Plates.






810-8401-F Igniter Components

600-8401-B / IG-22B
Click for photos
Collector box with ceramic electrode and wire.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-22B (Replaces Brinkmann 600-8401-B)
Weight: 0.3

$14.68

Qty


==> All Brinkmann Igniter Components.






810-8401-F Regulators and Hoses

155-7600-0 / HR-4B
Click for photos

Type 1 LP Regulator with 22” Pressure Hose and 3/8” Female Flare Fitting.FITS: Up to 60,000 BTUs



Part Number: HR-4B (Replaces Brinkmann 155-7600-0)
Dimensions: 22
Weight: 0.8

$34.71

Qty


==> All Brinkmann Regulators and Hoses.






810-8401-F Accessories

WB-1
12” long wood handle brass bristle grid brush with scraper and leather hang strap.

Part Number: WB-1
Dimensions: 12
Weight: 0.4

$10.90

Qty


==> All 810-8401-F Accessories.
