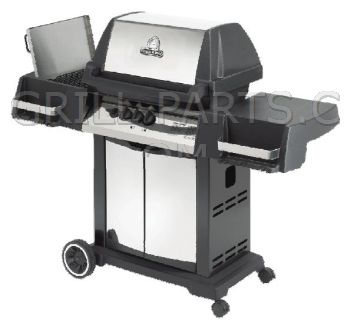

Broil King 9159-67



Highest quality replacement parts for your Broil King Crown 40C NG 9159-67 - Free USA shipping $49 or more* - No Sales Tax*



Broil King 9159-67 owners manual and diagrams
Click the small images on the right to view Broil King 9159-67 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!



Broil King 9159-67-3084003232-PartsExpS1.gif  Broil King 9159-67-3084003232-PartsLstS1.gif  Broil King 9159-67-3084003232-PartsLstS2.gif

Replacement grill parts for Broil King Crown 40C NG (9159-67)
This page shows all of the parts we know fit model Broil King 9159-67. We might not show the part you need here but we may still have it, or a functional equivalent. In this case, try the category buttons on the right. For example, if your looking for an ignitor, or other ignition components, and there are none here, click the ignition button to see what we have for Broil King grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct Broil King 9159-67 BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Broil King model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



9159-67 Burners

S10017
Click for photos
Genuine OEM Broil King stainless steel burner and venturi assembly for Broil King model 9159-67. Includes burner-mounted igniter electrode and wire part# S15500. Fully assembled.

Part Number: S10017
Dimensions: 8” x 20 1/2”
Material: Stainless steel
Weight: 3.5

$76.25

Qty


10390-E10
Click for photos
Genuine OEM Broil King Side Burner for Broil King model 9159-67. Use air shutter to adjust for LP (less air flow) or natural gas (more air flow).

Part Number: 10390-E10
Weight: 0.4

$14.96

Qty


==> All Broil King Burners.






9159-67 Cooking Grids

38170121
Click for photos
Genuine OEM Broil King cast iron cooking grid, single panel for Broil King model 9159-67.
  • Sold individually.
  • Number required varies.
  • Porcelain treated matte finish.


Part Number: 38170121
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 12 3/4”
Material: Cast Iron
Weight: 5.55

$50.64

Qty


10225-T10
Click for photos
Genuine OEM Broil King side burner grid for Broil King model 9159-67.

Part Number: 10225-T10
Dimension Front-to-Back: 14 1/4”
Dimension Side-to-Side: 8 3/8”
Weight: 2.4

$25.62

Qty


10225-E404
Click for photos
Genuine OEM Broil King stainless steel cooking grid for Broil King model 9159-67. SOLD INDIVIDUALLY. Number required varies, check your grill to be sure.

Part Number: 10225-E404
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 12 3/4”
Material: Stainless steel
Weight: 5.10

$84.73

Qty


10225-T436
Click for photos
Genuine OEM Broil King reversible heavy cast iron cooking grid SOLD INDIVIDUALLY for Broil King model 9159-67.
  • Sold individually
  • Number required varies, check your grill
  • Porcelain treated, flat matte finish
  • Pointed side is designed for perfect sear marks
  • Grooved side captures juices for continuous basting

Note: See part 10225-E404 for a stainless steel version of this grid.



Part Number: 10225-T436
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 12 3/4”
Material: Cast iron
Weight: 7.6

$49.30

Qty


CG-52SS
Click for photos
Stainless steel steel cooking grid for Broil King model 9159-67. Made in USA.

Part Number: CG-52SS
Dimension Front-to-Back: 15 1/16”
Dimension Side-to-Side: 25 1/4”
Material: stainless steel
Weight: 6.9

$74.15

Qty


==> All Broil King Cooking Grids.






9159-67 Heat Plates

10222-T425
Click for photos
Genuine OEM Broil King stainless steel Flav-R-Wave heat plate for Broil King model 9159-67. Also replaces porcelain-steel part# 10222-T424, which has been discontinued by the manufacturer.

Part Number: 10222-T425
Dimension Front-to-Back: 11 1/4”
Dimension Side-to-Side: 23”
Material: Stainless steel
Weight: 3.0

$49.60

Qty


==> All Broil King Heat Plates.






9159-67 Heat Shields

10184-R80
Click for photos
Radiation shield.

Part Number: 10184-R80
Dimensions: 9 1/4” x 20 3/4”
Material: stainless steel
Weight: 1.72

$19.68

Qty


==> All Broil King Heat Shields.






9159-67 Igniter Components

10342-245
Click for photos
Genuine OEM Broil King electronic push-button 2-spade igniter.
  • Uses AAA battery (not included)
  • .Requires 3/4” mounting hole
  • Also replaces part# 10342-242 and 10342-249

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 10342-245
Weight: 0.3

$16.46

Qty


S15504
Click for photos
Genuine OEM Broil King electrode.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: S15504
Weight: 0.2

$3.81

Qty


10342-T16
Click for photos
Genuine OEM Broil King 28” wire for side burner. One female spade connector, one female round connector..

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 10342-T16
Dimensions: 28
Weight: 0.05

$4.50

Qty


==> All Broil King Igniter Components.






9159-67 Grease Trays

S15115
Click for photos
Genuine OEM Broil King disposable grease pans. Package of 10. Each measures 4.75”x6”x1”.

Part Number: S15115
Dimensions: 4 3/4” x 6”
Material: aluminum
Weight: 0.25

$15.13

Qty


==> All Broil King Grease Trays.






9159-67 Grill Covers

67488
Click for photos
Broil King 64” premium grill cover 67488. Broil King Select Series covers are crafted from durable and weather resistant PVC / 500 x 300 denier polyester lining. These durable covers feature:
  • Hook-and-loop tabs that secure the cover around the grill
  • Polyester handles for easy removal
  • Hanging loops for convenient storage
  • The Broil King brand logo on the front


Exact fit for models:
  • Baron 540, 590 Series grills
  • Crown 20, 40 Series grills, post model
  • Signet 20 Series grills
  • Sovereign 20, 70, 90 grills
Dimensions:
  • Side-to-Side: 64”
  • Height: 45.5”
  • Front-to-Back: 23”


Part Number: 67488
Weight: 6.0

$94.50

Qty


68488
Click for photos
Broil King 64” premium grill cover 68488. Broil King premium covers are crafted of durable water resistant PVC with heavy woven 900D polyester backing.

Exact fit for Broil King models:
  • Baron™ 500 Series
  • Signet™ Series ( Prior to 2013 )
  • Signet™ 20 ( 2013 to 2015 )
  • Sovereign™ 20,70,90 ( Prior to 2013 )
  • Crown™ 20, 40 ( After 2012 )
Features:
  • Mesh venting for enhanced air flow and moisture resistance
  • Hook-and-loop closures for a superior fit
  • Blue baseball stitching adds style to the extra-reinforced seams
  • Molded rubber handles make the cover easy to remove
Dimensions:
  • Side-to-Side: 64”
  • Height: 47.5”
  • Front-to-Back: 23”


Part Number: 68488
Weight: 6.0

$97.38

Qty


==> All Broil King Grill Covers.






9159-67 Knobs and Handles

10472-K431
Click for photos
CONTROL KNOB RESIN LRG BLACK -- W/SS BA STRIP

Part Number: 10472-K431
Weight: 0.1

$5.15

Qty


PB20-60
Click for photos
S/B LID HANDLE WAGON ENCLOSER*

Part Number: PB20-60
Weight: 1.0

$1.95

Qty


10239-390
Click for photos
Phenolic handle stand-off for left hand side.

Part Number: 10239-390
Weight: 0.1

$2.23

Qty


10239-391
Click for photos
Phenolic handle stand-off for right hand side.

Part Number: 10239-391
Weight: 0.1

$2.23

Qty


==> All Broil King Knobs and Handles.






9159-67 Regulators and Hoses

10111-K45
Click for photos
Genuine OEM Broil King NG gas hose.

Part Number: 10111-K45
Weight: 2.1

$88.64

Qty


==> All Broil King Regulators and Hoses.






9159-67 Wheels and Castors

10892-7G
Click for photos
Genuine OEM Broil King 7” cart wheel with 3/8” axel hole. Mini hub cap is # 00400251, sold separately.

Part Number: 10892-7G
Weight: .45

$13.19

Qty


10892-15
Click for photos
Genuine OEM Broil King caster wheel; approximately 2 3/8” diameter.

Part Number: 10892-15
Weight: 0.35

$7.23

Qty


==> All Broil King Wheels and Castors.






9159-67 Warming Racks

10225-E390
Click for photos
Genuine OEM Broil King chrome steel warming rack.

Part Number: 10225-E390
Dimensions: 10 1/4” x 23 5/8”
Material: Nickel/Chrome
Weight: 3.10

$51.12

Qty


==> All Broil King Warming Racks.






9159-67 Heat indicators and Meat Thermometers

10571-6
Click for photos
Genuine OEM Broil King Heat indicator. About 2 3/8” wide and 2” high. The threaded stem is about 5 /16” diameter and 1 1/8” long.

Part Number: 10571-6
Weight: 0.12

$17.76

Qty


==> All Broil King Heat indicators and Meat Thermometers.






9159-67 Miscellaneous Repair Parts

S21233
Click for photos
Hinge pin clip.

Part Number: S21233
Weight: 0.01

$1.08

Qty


Y-11230
Click for photos
Cotter pin

Part Number: Y-11230
Weight: 0.01

$1.08

Qty


ALIGNMENT, BRACKET BLACK

Part Number: 10184-E691
Weight: 1.0

$6.96

Qty


S21420
Click for photos
Push nut 3/8

Part Number: S21420
Weight: 0.1

$2.23

Qty


10393-K40
Click for photos
Genuine OEM Broil King Cover, side burner.

Part Number: 10393-K40
Dimensions: 14 7/8” x 11”
Material: stainless steel
Weight: 1.9

$18.73

Qty


==> All Broil King Miscellaneous Repair Parts.






9159-67 Hardware

SCREW-PHCP 6-32X1/4 TY-F JS500

Part Number: Y-12835
Weight: 1.0

$0.70

Qty


==> All Broil King Hardware.






9159-67 Cart Parts

10184-E78A
Click for photos
Genuine OEM Broil King End Cap, door. Left hand side, with magnet.

Part Number: 10184-E78A
Weight: 0.36

$6.15

Qty


10184-E76
Click for photos
END CAP DOOR BOTTOM LEFT A

Part Number: 10184-E76
Weight: .25

$5.73

Qty


10184-E79A
Click for photos
Genuine OEM Broil King End Cap, door. RIght hand side, with magnet.

Part Number: 10184-E79A
Weight: 0.36

$6.15

Qty


10184-E77
Click for photos
END CAP DOOR BOTTOM RIGHT A

Part Number: 10184-E77
Weight: .25

$5.73

Qty


==> All Broil King Cart Parts.






9159-67 Accessories

WB-8RH
Click for photos
Replacement brass bristle brush head for WB-8 brush. Screws included.

Part Number: WB-8RH
Dimensions: 18 1/2
Material: stainless steel
Weight: 0.2

$9.45

Qty


==> All 9159-67 Accessories.
