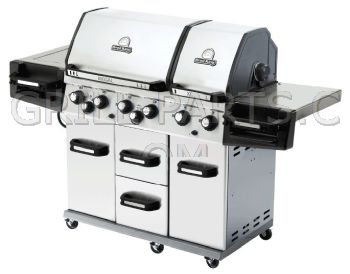

Broil King Regal 690 LP 9776-44 Grill Parts

Genuine OEM Broil King stainless steel Dual-Tube burner for Broil King model 9776-44. This part has been slightly changed by the manufacturer to include a small bend at the end that does not affect the fit on existing grills that use this part.

Note: The adjustable air shutter on this burner should be set to 1/3 open for LP grills, 2/3 open for natural gas grills. The burner ships with the air shutter set 1/3 open for LP grills.

This burner is the same part as 22909-104NG and 22909-104LP. There is no difference in the parts, 22909-104NG has the air shutter set to 2/3 open for natural gas, 22909-104LP has the air shutter set to 1/3 open for LP.

Part Number: 22909-104
Dimensions: 17 1/8” x 1 1/4”
Material: Stainless steel
Weight: 1.0

Side burner lid IR stainless steel for Broil King model 9776-44. Sometimes shipped with vinyl peel-off coating; remove before use.

Part Number: 23000-253
Dimensions: 14 1/4” x 11 3/16”
Material: stainless steel
Weight: 1.6

Premium quality heavy duty stainless steel cooking grid SOLD INDIVIDUALLY for Broil King model 9776-44.

• High quality stainless steel
• 5/16” solid stainless rods
• Sold individually

Part Number: 22005-284
Dimension Front-to-Back: 19 3/16”
Dimension Side-to-Side: 6 3/16”
Material: stainless steel
Weight: 5.30

Genuine OEM Broil King stainless steel Flav-R-Wave heat plate / Vaporizer for Broil King model 9776-44. The manufacturer has redesigned this Flav-R-Wave. It is still the functional OEM Broil King replacement part, and it is sometimes marketed as part number 18433.

Part Number: 22209-904
Dimension Front-to-Back: 17 1/2”
Dimension Side-to-Side: 5 7/8”
Material: Stainless steel
Weight: 1.15

Genuine OEM Broil King front collector box, top & bottom combo. Includes top 22215-014 and bottom 22225-014. This part has been redesigned by the manufacturer and is now a little shorter but still fully functional in the original grills. Fits 4-Burner grills.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 22225-014A
Dimensions: 21 5/8
Material: stainless steel
Weight: 1.2

Genuine OEM Broil King 32” wire for side burner and other applications. Both ends are female spade connector.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-T18
Dimensions: 32
Weight: 0.05

Genuine OEM Broil King electrode with 14 3/8” connector wire that has a spade female end; use with AA or AAA battery powered ignitors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-E13
Weight: 0.05

Genuine OEM Broil King electronic push-button 4-spade igniter.

• Uses AAA battery (not included)
• Requires 3/4” mounting hole

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-247
Weight: 0.5

Electronic push-button 1-spade igniter.

• Uses AAA battery (not included)
• Requires 3/4” mounting hole
• Also replaces part 10342-248

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-244
Weight: 0.3

Small grease shield used in-between each burner. Four of these replaces one grease shield # 27245-904. Four of these also replaces one grease shield # 22245-901and five of these replaces one grease shield # 27246-904. Refer to your model number and owner's manual. SOLD INDIVIDUALLY

Part Number: 27249-904
Dimensions: 6 1/2” x 6”
Material: stainless steel
Weight: .35

Genuine OEM Broil King Porcelain Grease Pan.

Part Number: 22009-901
Dimensions: 6 1/2” x 5 1/8”
Weight: .45

Genuine OEM Broil King large control knob.

• Off position D-Value: 6 o'clock
• Knob diameter: 2 1/4”
• Socket diameter: 5/16”
• Knob shaft: 1/2”

Part Number: 22001-768
Weight: 0.2

Genuine OEM Broil King small control knob.

• Off position D-Value: 6 o'clock
• Knob diameter: 1 7/8”
• Socket diameter: 5/16”
• Knob shaft: 1/2”

Part Number: 22001-668
Weight: 0.1

LID HANDLE RESIN W/REGAL STRAP

Part Number: 26003-34A
Weight: 1.0

HANDLE INSERT-REGAL 440/500 *

Part Number: 26005-305
Weight: 1.0

DOOR HANDLE RESIN *

Part Number: 21475-138
Weight: 1.0

Type 1 LP Regulator with 22” Pressure Hose and 3/8” Female Flare Fitting.FITS: Up to 60,000 BTUs

Part Number: HR-4B
Dimensions: 22
Weight: 0.8

CASTER BRACKET 21 3/4” LONG

Part Number: 21039-911
Weight: 2.05

Rubber castor, 3” w/plate, locking.

Part Number: 10892-23
Weight: 0.66

Genuine OEM Broil King warming rack. Porcelain enameled, glossy finish.

Part Number: 22005-991
Dimensions: 26 1/8” x 8 5/8”
Material: Porcelain steel
Weight: 3.10

WARMING RACK (SMALLER SIDE) PORCELAIN STEEL

Part Number: 22003-991
Dimensions: 8 5/8” x 12 1/2”
Weight: 1.65

Genuine OEM Broil King Heat indicator. About 2 3/8” wide and 2” high. The threaded stem is about 5 /16” diameter and 1 1/8” long.

Part Number: 10571-6
Weight: 0.12

Cotter pin

Part Number: Y-11230
Weight: 0.01

TUBE-REAR BURNER-COMPR.FITTING -- ASSY

Part Number: 20809-957
Dimensions: 22”
Weight: .15

SHELF STRAP BLK RESIN

Part Number: 23009-608
Weight: 1.0

Hinge pin clip.

Part Number: S21233
Weight: 0.01

REAR BURNER SPRING

Part Number: S21362
Weight: 1.0

Washer

Part Number: S21255
Weight: 0.01

LID BUMPER

Part Number: Y-11231
Weight: 0.01

SCREW-PHCP 6-32X1/4 TY-F JS500

Part Number: Y-12835
Weight: 1.0

12” long wood handle brass bristle grid brush with scraper and leather hang strap.

Part Number: WB-1
Dimensions: 12
Weight: 0.4
