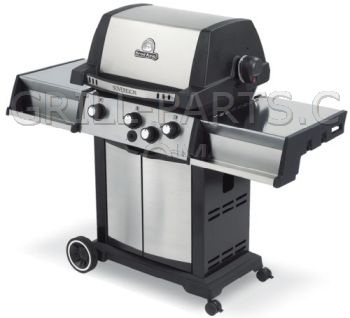

Broil King Sovereign 70 9877-77 Grill Parts

Broil King logo



Broil King 9877-77



Highest quality replacement parts for your Broil King Sovereign 70 9877-77 - Free USA shipping $49 or more* - No Sales Tax*



Broil King 9877-77 owners manual and diagrams
Click the small images on the right to view Broil King 9877-77 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!



Broil King 9877-77-3012222232-PartsExpS1.gif  Broil King 9877-77-3012222232-PartsExpS1.jpg  Broil King 9877-77-3012222232-PartsExpS2.gif  Broil King 9877-77-3012222232-PartsLstS1.gif  Broil King 9877-77-3012222232-PartsLstS1.jpg  Broil King 9877-77-3012222232-PartsLstS2.gif

Replacement gas grill parts for Broil King Sovereign 70 9877-77
This page shows all of the parts we know fit model Broil King 9877-77. If you can't find the part you need below, click on the appropriate category button on the right side of the page. For example, if your looking for an ignitor, or other ignition components, and there are none here, click the ignition button to see what we have for Broil King grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct Broil King 9877-77 BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Broil King model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



9877-77 Burners

10390-E20
Click for photos
Genuine OEM Broil King stainless steel Dual-Tube burner for Broil King model 9877-77. Use air shutter to control flow of air for LP gas, less air, and for natural gas, more air. NOTE: Manufacturer changed back mounting to a 90 degree bend.

Part Number: 10390-E20
Dimensions: 14 3/8” x 1 1/4”
Material: Stainless steel
Weight: 0.75

$26.94

Qty


==> All Broil King Burners.






9877-77 Cooking Grids

10225-T536
Click for photos
Genuine OEM Broil King cast iron cooking grid, SOLD INDIVIDUALLY for Broil King model 9877-77.
  • Sold individually.
  • Number required varies.
  • Porcelain enameled cast iron, flat matte finish.


Part Number: 10225-T536
Dimension Front-to-Back: 17”
Dimension Side-to-Side: 8 1/4”
Material: Cast iron
Weight: 7.6

$56.52

Qty


66124-1PC
Click for photos
Cast iron cooking grid for Broil King model 9877-77. Porcelain treated, matte finish. Sold individually, number required varies.

Part Number: 66124-1PC
Dimension Front-to-Back: 16 15/16”
Dimension Side-to-Side: 8 5/16”
Material: cast iron
Weight: 3.75

$37.52

Qty


CG-74P-CI
Click for photos
Cast iron cooking grid for Broil King model 9877-77. Porcelain treated, matte finish. FIts Kenmore And Other Import Grills. Sold individually, number required varies.

Part Number: CG-74P-CI
Dimension Front-to-Back: 16 7/8”
Dimension Side-to-Side: 8 1/4”
Material: cast iron
Weight: 8.90

$43.61

Qty


CG-74P-CI-X3
Click for photos
Cast iron cooking grids for Broil King model 9877-77. SET OF THREE (3) panels.
  • Porcelain treated, matte finish
  • Each panel measures 16 7/8” x 8 1/4”
  • Overall dimensions: 16 7/8 x 23 3/4”


Part Number: CG-74P-CI-X3
Dimension Front-to-Back: 16 7/8”
Dimension Side-to-Side: 24 3/4”
Material: cast iron
Weight: 26.7

$113.25

Qty


==> All Broil King Cooking Grids.






9877-77 Heat Plates

10222-E400
Click for photos
Genuine OEM Broil King stainless steel Flav-R-Wave for Broil King model 9877-77.

Part Number: 10222-E400
Dimension Front-to-Back: 13 3/4”
Dimension Side-to-Side: 6 1/4”
Material: Stainless steel
Weight: 1.25

$25.55

Qty


==> All Broil King Heat Plates.






9877-77 Heat Shields

10222-E402-R
Click for photos
Replacement for stainless steele baffle. Fits Signet/Sovereign.

Part Number: 10222-E402-R
Dimensions: 9” x 7 7/8”
Material: stainless steel
Weight: 0.76

$19.32

Qty


10184-E92
Click for photos
RADIATION SHIELD 390/400

Part Number: 10184-E92
Dimensions: 13” x 22 3/4”
Material: stainless steel
Weight: 2.58

$35.41

Qty


==> All Broil King Heat Shields.






9877-77 Igniter Components

10342-245
Click for photos
Genuine OEM Broil King electronic push-button 2-spade igniter.
  • Uses AAA battery (not included)
  • .Requires 3/4” mounting hole
  • Also replaces part# 10342-242 and 10342-249

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 10342-245
Weight: 0.3

$16.46

Qty


10342-E12
Click for photos
Genuine OEM Broil King electrode with 11” connector wire that has a flat/spade female end; use with AA or AAA battery powered ignitors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 10342-E12
Weight: 0.05

$3.70

Qty


10342-E400A
Click for photos
Genuine OEM Broil King collector box, complete. Replaces parts 10342-E400 and 10342-E401, which have been discontinued as separate parts.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 10342-E400A
Dimensions: 20 1/2
Weight: 0.75

$19.67

Qty


==> All Broil King Igniter Components.






9877-77 Grease Trays

S15115
Click for photos
Genuine OEM Broil King disposable grease pans. Package of 10. Each measures 4.75”x6”x1”.

Part Number: S15115
Dimensions: 4 3/4” x 6”
Material: aluminum
Weight: 0.25

$15.13

Qty


==> All Broil King Grease Trays.






9877-77 Grill Covers

67487
Click for photos
Broil King 58” Select grill cover 67487. Broil King Select Series covers are crafted from durable and weather resistant PVC / 500 x 300 denier polyester lining. These durable covers feature:
  • Hook-and-loop tabs that secure the cover around the grill
  • Polyester handles for easy removal
  • Hanging loops for convenient storage
  • The Broil King brand logo on the front


Exact fit for models:
  • Baron 440, 490 Series grills
  • Crown 10, 90 Series grills, post model
  • Signet 70, 90 Series grills
  • Sovereign 20, 40, 70, and 90 Series grills
Dimensions:
  • Side-to-Side: 58”
  • Height: 46”
  • Front-to-Back: 21.5”


Part Number: 67487
Weight: 3.0

$91.81

Qty


68487
Click for photos
Broil King 58” premium grill cover 68487. Broil King premium covers are crafted of durable water resistant PVC with heavy woven 900D polyester backing.

Exact fit for models:
  • Baron 440, 490 Series grills
  • Crown 10, 90 Series grills, post model
  • Signet 70, 90 Series grills
  • Sovereign 20, 40, 70, and 90 Series grills
Features:
  • Mesh venting for enhanced air flow and moisture resistance
  • Hook-and-loop closures for a superior fit
  • Blue baseball stitching adds style to the extra-reinforced seams
  • Molded rubber handles make the cover easy to remove
Dimensions:
  • Side-to-Side: 58”
  • Height: 46”
  • Front-to-Back: 21.5”


Part Number: 68487
Weight: 5.0

$112.70

Qty


==> All Broil King Grill Covers.






9877-77 Knobs and Handles

22001-768
Click for photos
Genuine OEM Broil King large control knob.
  • Off position D-Value: 6 o'clock
  • Knob diameter: 2 1/4”
  • Socket diameter: 5/16”
  • Knob shaft: 1/2”


Part Number: 22001-768
Weight: 0.2

$6.00

Qty


CONTROL KNOB - BEZEL BLK

Part Number: 10472-E38
Weight: 0.1

$5.15

Qty


HANDLE W/STRAP SOVEREIGN 400

Part Number: 10184-E703A
Weight: 1.0

$27.98

Qty


==> All Broil King Knobs and Handles.






9877-77 Regulators and Hoses

HR-4B
Click for photos

Type 1 LP Regulator with 22” Pressure Hose and 3/8” Female Flare Fitting.FITS: Up to 60,000 BTUs



Part Number: HR-4B
Dimensions: 22
Weight: 0.8

$34.71

Qty


10111-K45
Click for photos
Genuine OEM Broil King NG gas hose.

Part Number: 10111-K45
Weight: 2.1

$88.64

Qty


==> All Broil King Regulators and Hoses.






9877-77 Wheels and Castors

10892-7G
Click for photos
Genuine OEM Broil King 7” cart wheel with 3/8” axel hole. Mini hub cap is # 00400251, sold separately.

Part Number: 10892-7G
Weight: .45

$13.19

Qty


10892-15
Click for photos
Genuine OEM Broil King caster wheel; approximately 2 3/8” diameter.

Part Number: 10892-15
Weight: 0.35

$7.23

Qty


==> All Broil King Wheels and Castors.






9877-77 Heat indicators and Meat Thermometers

10571-6
Click for photos
Genuine OEM Broil King Heat indicator. About 2 3/8” wide and 2” high. The threaded stem is about 5 /16” diameter and 1 1/8” long.

Part Number: 10571-6
Weight: 0.12

$17.76

Qty


==> All Broil King Heat indicators and Meat Thermometers.






9877-77 Miscellaneous Repair Parts

S21233
Click for photos
Hinge pin clip.

Part Number: S21233
Weight: 0.01

$1.08

Qty


ALIGNMENT, BRACKET BLACK

Part Number: 10184-E691
Weight: 1.0

$6.96

Qty


S21362
Click for photos
REAR BURNER SPRING

Part Number: S21362
Weight: 1.0

$1.08

Qty


S21420
Click for photos
Push nut 3/8

Part Number: S21420
Weight: 0.1

$2.23

Qty


S21255
Click for photos
Washer

Part Number: S21255
Weight: 0.01

$1.08

Qty


==> All Broil King Miscellaneous Repair Parts.






9877-77 Cart Parts

10184-E78A
Click for photos
Genuine OEM Broil King End Cap, door. Left hand side, with magnet.

Part Number: 10184-E78A
Weight: 0.36

$6.15

Qty


10184-E76
Click for photos
END CAP DOOR BOTTOM LEFT A

Part Number: 10184-E76
Weight: .25

$5.73

Qty


10184-E79A
Click for photos
Genuine OEM Broil King End Cap, door. RIght hand side, with magnet.

Part Number: 10184-E79A
Weight: 0.36

$6.15

Qty


10184-E77
Click for photos
END CAP DOOR BOTTOM RIGHT A

Part Number: 10184-E77
Weight: .25

$5.73

Qty


==> All Broil King Cart Parts.






9877-77 Shelves

END CAP SIDE SHELF RHS

Part Number: 10711-E47
Weight: 1.0

$6.96

Qty


==> All Broil King Shelves.






9877-77 Accessories

40269
Click for photos
20” Professional Extra Long Tong.
20” Stainless steel tong with red soft grip rubber inserts. Grip your food on the grill with ease. Manual lock saves on storage space.


Part Number: 40269
Material: stainless steel
Weight: 0.14

SALE  $14.99
Qty


==> All 9877-77 Accessories.
