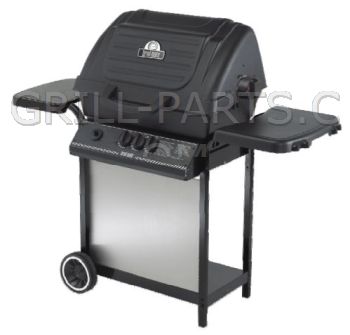

Broil-Mate 1551-74 Grill Parts

Genuine OEM Broil-Mate stainless steel burner and venturi assembly for Broil-Mate model 1551-74. Includes burner-mounted igniter electrode and wire part# S15500. Fully assembled.

Part Number: S10017
Dimensions: 8” x 20 1/2”
Material: Stainless steel
Weight: 3.5

Genuine OEM Broil-Mate stainless steel rotisserie burner assembly for Broil-Mate model 1551-74.

Includes:
• 26 3/16” SS rotisserie burner with deflector (part# S13005)
• Burner-mounted electrode, gas collector box, and 45” wire
• Completely assembled

Part Number: S13005A
Dimensions: 26 3/16”
Weight: 1.10

Genuine OEM Broil-Mate cast iron cooking grid, single panel for Broil-Mate model 1551-74.

• Sold individually.
• Number required varies.
• Porcelain treated matte finish.

Part Number: 38170121
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 12 3/4”
Material: Cast Iron
Weight: 5.55

Genuine OEM Broil-Mate stainless steel cooking grid for Broil-Mate model 1551-74. SOLD INDIVIDUALLY. Number required varies, check your grill to be sure.

Part Number: 10225-E404
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 12 3/4”
Material: Stainless steel
Weight: 5.10

Genuine OEM Broil-Mate reversible heavy cast iron cooking grid SOLD INDIVIDUALLY for Broil-Mate model 1551-74.

• Sold individually
• Number required varies, check your grill
• Porcelain treated, flat matte finish
• Pointed side is designed for perfect sear marks
• Grooved side captures juices for continuous basting

Note: See part 10225-E404 for a stainless steel version of this grid.

Part Number: 10225-T436
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 12 3/4”
Material: Cast iron
Weight: 7.6

Stainless steel steel cooking grid for Broil-Mate model 1551-74. Made in USA.

Part Number: CG-52SS
Dimension Front-to-Back: 15 1/16”
Dimension Side-to-Side: 25 1/4”
Material: stainless steel
Weight: 6.9

Genuine OEM Broil-Mate stainless steel Flav-R-Wave heat plate for Broil-Mate model 1551-74. Also replaces porcelain-steel part# 10222-T424, which has been discontinued by the manufacturer.

Part Number: 10222-T425
Dimension Front-to-Back: 11 1/4”
Dimension Side-to-Side: 23”
Material: Stainless steel
Weight: 3.0

Genuine OEM Broil-Mate electronic push-button 2-spade igniter.

• Uses AAA battery (not included)
• .Requires 3/4” mounting hole
• Also replaces part# 10342-242 and 10342-249

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-245
Weight: 0.3

Genuine OEM Broil-Mate collector box and electrode assembly. Includes

• burner mounted collector box (clip on)
• ceramic electrode and 18” wire with round connector and protective sleeve.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: S15500
Weight: 0.1

Stainless steel wire grease cup holder for mini bucket #S15112 which has been discontinued and replaced with mini bucket # 4673-FC. This wire holder can also be used with tin cans for easy disposal of grease.

Part Number: S15111
Material: stainless steel
Weight: 0.02

Type 1 LP Regulator with 22” Pressure Hose and 3/8” Female Flare Fitting.FITS: Up to 60,000 BTUs

Part Number: HR-4B
Dimensions: 22
Weight: 0.8

Genuine OEM Broil-Mate 7” cart wheel with 3/8” axel hole. Mini hub cap is # 00400251, sold separately.

Part Number: 10892-7G
Weight: .45

Wheel bolt 3.25” long; uses one hinge pin part number S21233 not included.

Part Number: 10240-13
Weight: .10

Genuine OEM Broil-Mate Heat indicator. About 1 7/8” wide and 1 7/16” high. The threaded stem is about 5/16” diameter and 1 1/8” long.

Part Number: 10571-5
Dimensions: 1 7/8” x 1 7/16”
Weight: 0.1

Hinge pin clip.

Part Number: S21233
Weight: 0.01

REAR BURNER SPRING

Part Number: S21362
Weight: 1.0

Cap stepped end leg plug.

Part Number: S21350
Weight: 0.1

Washer

Part Number: S21255
Weight: 0.01

Cast iron smoker box with six oblong venting holes. Designed to release wood smoke. Make sure this part will fit into your grill before ordering 8 3/8” x 5 1/4” x 1 3/8”.

Part Number: 00150
Dimensions: 5 1/4” x 8 3/8”
Material: cast iron
Weight: 3.90

Fish Spatula. Stainless steel fish spatula with genuine rosewood handle. 18 1/2”. 10” spatula width.

Part Number: FS-1
Dimensions: 18 1/2
Material: stainless steel
Weight: 1.0

Universal Grid Lifting Tool

Part Number: BRGG
Weight: 1.0

Chrome plated rib/potatoe rack. Spaces up to 6 racks of ribs and 6 potatoes. Fits all grills. 12” x 7 1/4”.


Part Number: RR-2
Material: chrome steel
Weight: 1.0

18” long wood handle brass bristle grid brush with scraper and leather hang strap.

Part Number: WB-3
Dimensions: 18
Weight: 0.59
