Broil-Mate 3369-7 Grill Parts

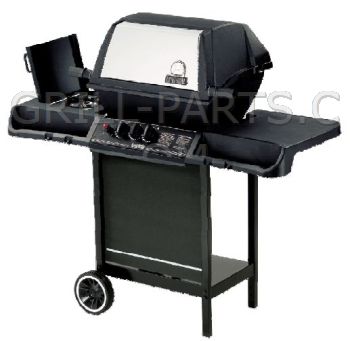

Broil-Mate 3369-7

Highest quality replacement parts for your Broil-Mate 3369-7 - Free USA shipping $49 or more* - No Sales Tax*

Broil-Mate 3369-7 owners manual and diagrams

Click the small images on the right to view Broil-Mate 3369-7 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Broil-Mate 3369-7-455300233-PartsExpS1.jpg

Broil-Mate 3369-7-455300233-PartsLstS1.gif

Broil-Mate 3369-7-455300233-PartsLstS2.gif

Replacement BBQ grill parts for Broil-Mate model: 3369-7

On this page you'll find all of the parts that fit model Broil-Mate 3369-7. If the part you need is not shown below, try clicking the appropriate category button on the right side of the page. For example, if your looking for a warming rack and there are none here, click the warming rack button to see all of the racks we have for Broil-Mate grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Broil-Mate 3369-7 BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Broil-Mate model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

3369-7 Burners

S10077

Click for photos

Genuine OEM Broil-Mate stainless steel burner and venturi assembly for Broil-Mate model 3369-7. Includes burner-mounted igniter electrode and wire part# S15500. Fully assembled.

Part Number: S10077
Dimensions: 8” x 16”
Material: Stainless steel
Weight: 2.5

10390-E10

Click for photos

Genuine OEM Broil-Mate Side Burner for Broil-Mate model 3369-7. Use air shutter to adjust for LP (less air flow) or natural gas (more air flow).

Part Number: 10390-E10
Weight: 0.4

==> All Broil-Mate Burners.

3369-7 Cooking Grids

10225-T350

Click for photos

Genuine OEM Broil-Mate cooking grid for Broil-Mate model 3369-7.

Sold individually
Number required varies, check your grill
Porcelain enameled steel, glossy finish

Part Number: 10225-T350
Dimension Front-to-Back: 15 1/8”
Dimension Side-to-Side: 11”
Material: Porcelain steel
Weight: 3.7

==> All Broil-Mate Cooking Grids.

3369-7 Heat Plates

10222-T325

Click for photos

Genuine OEM Broil-Mate stainless steel Flav-R-Wave SS heat plate for Broil-Mate model 3369-7.

Part Number: 10222-T325
Dimension Front-to-Back: 10 3/8”
Dimension Side-to-Side: 18”
Material: Stainless steel
Weight: 2.4

==> All Broil-Mate Heat Plates.

3369-7 Igniter Components

10342-245

Click for photos

Genuine OEM Broil-Mate electronic push-button 2-spade igniter.

Uses AAA battery (not included)
.Requires 3/4” mounting hole
Also replaces part# 10342-242 and 10342-249

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-245
Weight: 0.3

S15500

Click for photos

Genuine OEM Broil-Mate collector box and electrode assembly. Includes

burner mounted collector box (clip on)
ceramic electrode and 18” wire with round connector and protective sleeve.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: S15500
Weight: 0.1

10342-T12

Click for photos

Genuine OEM Broil-Mate 21” wire for side burner or other applications. Both ends are female spade connector.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-T12
Dimensions: 21
Weight: 0.05

==> All Broil-Mate Igniter Components.

3369-7 Grease Trays

S15111

Click for photos

Stainless steel wire grease cup holder for mini bucket #S15112 which has been discontinued and replaced with mini bucket # 4673-FC. This wire holder can also be used with tin cans for easy disposal of grease.

Part Number: S15111
Material: stainless steel
Weight: 0.02

==> All Broil-Mate Grease Trays.

3369-7 Knobs and Handles

10239-7

Click for photos

Triangular handle washer. 1/8 in thick. Made of heat resistant compressed material.

Part Number: 10239-7
Dimensions: 1 1/2” x 1 1/4”
Weight: 0.05

PB20-60

Click for photos

S/B LID HANDLE WAGON ENCLOSER*

Part Number: PB20-60
Weight: 1.0

==> All Broil-Mate Knobs and Handles.

3369-7 Regulators and Hoses

S13467-132

NG side burner hose no longer available separately.
Now sold only as entire valve assembly. Please verify your model number per the certification tag on your gas grill.

Part Number: S13467-132
Weight: 2.8

HR-4B

Click for photos

Type 1 LP Regulator with 22” Pressure Hose and 3/8” Female Flare Fitting.FITS: Up to 60,000 BTUs

Part Number: HR-4B
Dimensions: 22
Weight: 0.8

10111-K45

Click for photos

Genuine OEM Broil-Mate NG gas hose.

Part Number: 10111-K45
Weight: 2.1

==> All Broil-Mate Regulators and Hoses.

3369-7 Wheels and Castors

10892-7G

Click for photos

Genuine OEM Broil-Mate 7” cart wheel with 3/8” axel hole. Mini hub cap is # 00400251, sold separately.

Part Number: 10892-7G
Weight: .45

10240-13

Click for photos

Wheel bolt 3.25” long; uses one hinge pin part number S21233 not included.

Part Number: 10240-13
Weight: .10

==> All Broil-Mate Wheels and Castors.

3369-7 Heat indicators and Meat Thermometers

10571-6

Click for photos

Genuine OEM Broil-Mate Heat indicator. About 2 3/8” wide and 2” high. The threaded stem is about 5 /16” diameter and 1 1/8” long.

Part Number: 10571-6
Weight: 0.12

==> All Broil-Mate Heat indicators and Meat Thermometers.

3369-7 Miscellaneous Repair Parts

S21233

Click for photos

Hinge pin clip.

Part Number: S21233
Weight: 0.01

Y-11230

Click for photos

Cotter pin

Part Number: Y-11230
Weight: 0.01

Y-6616

Click for photos

Bolt

Part Number: Y-6616
Weight: 0.02

Y-12665

Click for photos

Leg plug extension.

Part Number: Y-12665
Weight: 0.1

S21255

Click for photos

Washer

Part Number: S21255
Weight: 0.01

==> All Broil-Mate Miscellaneous Repair Parts.

3369-7 Hardware

SCREW-PHCP 6-32X1/4 TY-F JS500

Part Number: Y-12835
Weight: 1.0

==> All Broil-Mate Hardware.

3369-7 Shelves

10184-E461

Click for photos

SHELF SUPPORT LH BLK

Part Number: 10184-E461
Weight: 1.0

SHELF SB EZ-BILT W/O BRACKET

Part Number: 10711-E563
Weight: 1.0

==> All Broil-Mate Shelves.

3369-7 Accessories

FS-1

Click for photos

Fish Spatula. Stainless steel fish spatula with genuine rosewood handle. 18 1/2”. 10” spatula width.

Part Number: FS-1
Dimensions: 18 1/2
Material: stainless steel
Weight: 1.0

BB-5

Click for photos

Basting brush with angled oak handle. 18” overall length.

Part Number: BB-5
Dimensions: 18
Weight: 0.8

WB-3

18” long wood handle brass bristle grid brush with scraper and leather hang strap.

Part Number: WB-3
Dimensions: 18
Weight: 0.59

==> All 3369-7 Accessories.
