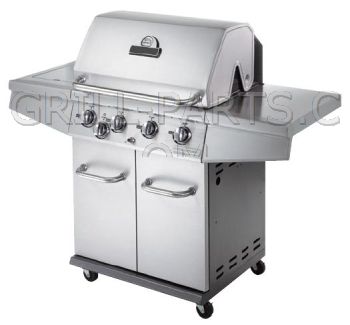

Broil-Mate 746164 Grill Parts

Highest quality replacement parts for your Broil-Mate 746164 - Free USA shipping $49 or more* - No Sales Tax*

Broil-Mate 746164 owners manual and diagrams

Click the small images on the right to view Broil-Mate 746164 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Broil-Mate 746164-326383633-PartsExpS1.gif

Broil-Mate 746164-326383633-PartsExpS2.gif

Broil-Mate 746164-326383633-PartsLstS1.gif

Replacement grill parts for Broil-Mate model: 746164

This page shows all of the parts we know fit model Broil-Mate 746164. We might not show the part you need here but we may still have it, or a functional equivalent. In this case, try the category buttons on the right. For example, if your looking for an ignitor, or other ignition components, and there are none here, click the ignition button to see what we have for Broil-Mate grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct Broil-Mate 746164 BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Broil-Mate model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

746164 Burners

Click for photos

Genuine OEM Broil-Mate stainless steel Dual-Tube burner for Broil-Mate model 746164. This part has been slightly changed by the manufacturer to include a small bend at the end that does not affect the fit on existing grills that use this part.

Note: The adjustable air shutter on this burner should be set to 1/3 open for LP grills, 2/3 open for natural gas grills. The burner ships with the air shutter set 1/3 open for LP grills.

This burner is the same part as 22909-104NG and 22909-104LP. There is no difference in the parts, 22909-104NG has the air shutter set to 2/3 open for natural gas, 22909-104LP has the air shutter set to 1/3 open for LP.

Part Number: 22909-104
Dimensions: 17 1/8” x 1 1/4”
Material: Stainless steel
Weight: 1.0

==> All Broil-Mate Burners.

746164 Cooking Grids

Click for photos

Cast iron cooking grid for Broil-Mate model 746164.

Sold individually
Number required varies, check your grill
Porcelain enameled, glossy finish

Part Number: 22005-181-R
Dimension Front-to-Back: 19 1/16”
Dimension Side-to-Side: 12 1/2”
Material: Cast iron
Weight: 7.5

==> All Broil-Mate Cooking Grids.

746164 Heat Plates

Click for photos

Genuine OEM Broil-Mate stainless steel Flav-R-Wave heat plate / Vaporizer for Broil-Mate model 746164. The manufacturer has redesigned this Flav-R-Wave. It is still the functional OEM Broil-Mate replacement part, and it is sometimes marketed as part number 18433.

Part Number: 22209-904
Dimension Front-to-Back: 17 1/2”
Dimension Side-to-Side: 5 7/8”
Material: Stainless steel
Weight: 1.15

==> All Broil-Mate Heat Plates.

746164 Igniter Components

Click for photos

Genuine OEM Broil-Mate electronic push-button 4-spade igniter.

Uses AAA battery (not included)
Requires 3/4” mounting hole

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-247
Weight: 0.5

Click for photos

Genuine OEM Broil-Mate electrode with 11” connector wire that has a flat/spade female end; use with AA or AAA battery powered ignitors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-E12
Weight: 0.05

==> All Broil-Mate Igniter Components.

746164 Warming Racks

Click for photos

Genuine OEM Broil-Mate porcelain coated warming rack.

Part Number: 22006-991
Dimensions: 32 5/8” x 8 1/2”
Material: porcelain steel
Weight: 6.0

==> All Broil-Mate Warming Racks.

746164 Accessories

Click for photos

Cast iron smoker box with six oblong venting holes. Designed to release wood smoke. Make sure this part will fit into your grill before ordering 8 3/8” x 5 1/4” x 1 3/8”.

Part Number: 00150
Dimensions: 5 1/4” x 8 3/8”
Material: cast iron
Weight: 3.90

Click for photos

Chrome plated rib/potatoe rack. Spaces up to 6 racks of ribs and 6 potatoes. Fits all grills. 12” x 7 1/4”.

Part Number: RR-2
Material: chrome steel
Weight: 1.0

Click for photos

Replacement brass bristle brush head for WB-8 brush. Screws included.

Part Number: WB-8RH
Dimensions: 18 1/2
Material: stainless steel
Weight: 0.2

==> All 746164 Accessories.
