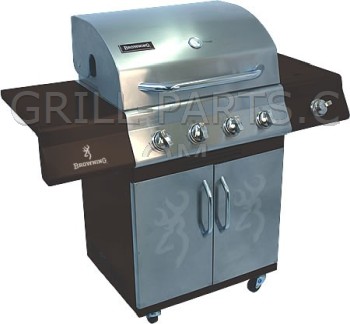

Browning BR4GRILL Grill Parts

Stainless steel tube burner for Browning model BR4GRILL.

Includes
• SS tube burner
• Electrode mounting bracket (not all models use bracket)
• Spider exclusion screen
• Adjustable air shutter.

NOTE: Some earlier versions of this burner, which are no longer available, were a bit larger in diameter. Some models may not need the electrode tab.


Part Number: 12411
Dimensions: 16 1/2” x 1”
Material: stainless steel
Weight: 0.6

Cast iron cooking grids for Browning model BR4GRILL. SET OF TWO (2) panels.

• Porcelain treated, matte finish
• Each panel measures 17 3/4” x 11 1/2”
• Overall dimensions: 17 3/4” x 23”

Part Number: CG-101PCI-X2
Dimension Front-to-Back: 17 3/4”
Dimension Side-to-Side: 23”
Material: cast iron
Weight: 11.6

SET OF FOUR/4 PACK Stainless steel Heat Distribution Plates for Browning model BR4GRILL. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.

Part Number: CLA-TS0147-X4
Dimension Front-to-Back: 15 5/16”
Dimension Side-to-Side: 3 5/8”
Material: stainless steel
Weight: 2.16

SET OF FIVE/5 PACK Stainless steel Heat Distribution Plates for Browning model BR4GRILL. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.

Part Number: CLA-TS0147-X5
Dimension Front-to-Back: 15 5/16”
Dimension Side-to-Side: 3 5/8”
Material: stainless steel
Weight: 2.7

Stainless steel Heat Tent/ Flame Tamer for Browning model BR4GRILL. Sold individually, number required varies.

Part Number: BMHP8
Dimension Front-to-Back: 15 3/8”
Dimension Side-to-Side: 3 9/16”
Material: stainless steel
Weight: 0.5

Burner-mounted ceramic igniter electrode with mounting bracket and hardware.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-20B
Weight: 0.05

Premium quality polyester lined vinyl cover, E-Z on velcro tabs. For large grills, full length.

• 65” left to right
• 23” front to back
• 42” top to bottom

Please measure your grill to determine which cover fits best. Avoid too snug a fit as a slightly oversized cover is easier to take off and put back on.

Part Number: CV-5PREM
Material: Vinyl
Weight: 3.5

Universal 2 5/16” knob.

• Selectable D-Value
• Selectable socket diameter - 6mm or 8mm.
• Selectable shaft length - flush, 1/4”, or 1 5/8”. Shafts can also be trimmed to desired length.
• Includes 6 shaft inserts and set screw.
• Fits any grill with inside bezel diameter greater than 2 5/16” (the knob diameter).

Part Number: 02342
Dimensions: 2 5/16” x 2 5/16”
Material: plastic
Weight: 0.20

Universal premium quality stainless steel warming rack. You simply can't buy a better quality warming rack than this, which weighs in at almost 5lbs of solid 304 grade stainless steel. This super heavy-duty warming rack was made to replace the porcelain coated steel racks found on BBQ grills made by The Great Outdoors Grill Company, but can be used in many other different grills.

• Far superior to the original porcelain coated steel rack
• Rests on your existing cooking grids.
• Solid 1/4” 304 stainless steel rods.
• Stands 3.75 inches tall.
• Made in USA.

WARNING: Before ordering this universal rack, please verify your grill has enough space to accommodate it. If you need to return, you will be responsible for return shipping, and the original out bound shipping fee will be deducted from the refund. What's required?

• Your grill needs to be at least 24” wide on the inside . The warming rack is 6.25” front to back and stands 3.75” tall.
• Notice the shape of the warming rack. Determine if the lid of your grill can easily close with the warming rack inside along with food placed on top of the rack.

  Part Number: CLA-WS0040
  Dimensions: 6 1/4” x 22 7/8”
  Material: stainless steel
  Weight: 4.8

Round heat indicator.

• Single 1 5/8” probe
• 2 1/8” diameter
• Requires 1/4” mounting hole

Part Number: 00015
Weight: 0.10

12” long wood handle brass bristle grid brush with scraper and leather hang strap.

Part Number: WB-1
Dimensions: 12
Weight: 0.4
