Charbroil 463234511 Grill Parts

Charbroil logo



Charbroil 463234511

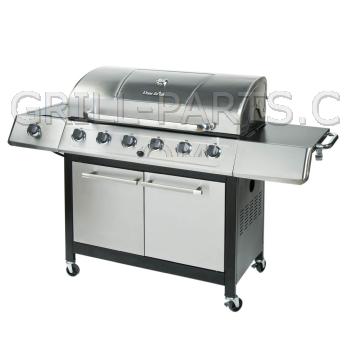

Char-Broil 6-Burner Gas Grill With Side Burner & Sear Burner



Highest quality replacement parts for your Charbroil 463234511 - Free USA shipping $49 or more* - No Sales Tax*



Charbroil 463234511 owners manual and diagrams
Click the small images on the right to view Charbroil 463234511 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!



Charbroil 463234511-463545648830-PartsExpS1.jpg

Replacement BBQ grill parts for Charbroil model: 463234511
On this page you'll find all of the parts that fit model Charbroil 463234511. We might not show the part you need here but we may still have it, or a functional equivalent. In this case, try the category buttons on the right. For example, if your looking for a cooking grid and there are none here, click the cooking grids button to see all of the cooking grids we have for Charbroil grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct Charbroil 463234511 BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Charbroil model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



463234511 Burners

G431-0300-W2 / NGKT1
Click for photos
Stainless steel burner for Charbroil model 463234511.

Part Number: NGKT1 (Replaces Charbroil G431-0300-W2)
Dimensions: 14 7/8” x 1”
Material: stainless steel
Weight: 1.0

$33.61

Qty


CBP6
Click for photos
Stainless steel burner for Charbroil model 463234511.

Part Number: CBP6
Dimensions: 14 3/8” x 1”
Material: stainless steel
Weight: 1.0

$35.43

Qty


==> All Charbroil Burners.






463234511 Burner Brackets and Carryovers

G501-0015-W1 / CBCO1
Click for photos
Stainless steel cross over tube. Channels gas between burners.

Part Number: CBCO1 (Replaces Charbroil G501-0015-W1)
Dimensions: 7
Material: stainless steel
Weight: 0.05

$15.90

Qty


CBCO2
Click for photos
Stainless steel cross over tube. Channels gas between burners.

Part Number: CBCO2
Dimensions: 6 7/16
Material: stainless steel
Weight: 0.08

$17.36

Qty


==> All Charbroil Burner Brackets and Carryovers.






463234511 Cooking Grids

CG-97P-CI
Click for photos
Cast Iron Cooking Grid - Charbroil for Charbroil model 463234511.

Part Number: CG-97P-CI
Dimension Front-to-Back: 16 7/8”
Dimension Side-to-Side: 9 5/16”
Material: cast iron
Weight: 4.65

$31.88

Qty


G438-0020-W1 / CG-97P-CI-X4
Click for photos
Cast Iron Cooking Grids for Charbroil model 463234511. SET OF FOUR (4).

Part Number: CG-97P-CI-X4 (Replaces Charbroil G438-0020-W1)
Dimension Front-to-Back: 16 7/8”
Dimension Side-to-Side: 9 5/16”
Material: cast iron
Weight: 18.6

$106.20

Qty


==> All Charbroil Cooking Grids.






463234511 Heat Plates

G430-0005-W1 / CBHP6
Click for photos
Stainless steel vented heat plate/Flame Tamer for Charbroil model 463234511.

Part Number: CBHP6 (Replaces Charbroil G430-0005-W1)
Dimension Front-to-Back: 14 5/8”
Dimension Side-to-Side: 4 1/4”
Material: stainless steel
Weight: 0.7

$23.47

Qty


==> All Charbroil Heat Plates.






463234511 Igniter Components

TS-IG3007
Click for photos
Push-button electronic igniter with three (3) spade connectors. Comes with sliver or black cap per availability. Needs (1) AA battery (not included); requires 7/8” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: TS-IG3007
Weight: 0.2

$35.57

Qty


03750
Click for photos
20” Ignitor adapter wire with female spade connector and male round connector. Used primarily on Ducane models 7100 and 7200 to extend the wire from the 03758 collector box and electrode to the electronic spark generator (igniter).

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 03750
Dimensions: 1/16
Weight: 0.05

$6.01

Qty


04432
Click for photos
Electrode with 24.5” wire that has a female spade/flat end. To lengthen the wire use adapter # 03198 and extension wire # 03750.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 04432
Dimensions: 4”
Material: ceramic
Weight: 0.1

$10.35

Qty


IG-30B
Click for photos
46” Wire with female spade connectors and square plastic connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-30B
Dimensions: 46
Weight: 0.1

$7.10

Qty


G501-0010-W2 / 04430
Click for photos
Burner mounted electrode for use with 15591 and 15491 burners.
  • 39” wire with female spade connector
  • Includes adapter wire part 03198 for applications needing male spade connector on electrode.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 04430 (Replaces Charbroil G501-0010-W2)
Material: ceramic
Weight: 0.1

$12.47

Qty


G651-1300-W1 / IGEIB6-B
Click for photos
Battery powered push button igniter.
  • Has six (6) spade type male connectors.
  • Uses 1 AA battery (not supplied)
  • Requires 7/8” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IGEIB6-B (Replaces Charbroil G651-1300-W1)
Weight: 0.3

$31.52

Qty


G651-5103-W1 / 05223
Click for photos
electrode

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 05223 (Replaces Charbroil G651-5103-W1)
Material: ceramic
Weight: 0.1

$9.42

Qty


IG-46B
Click for photos
Universal extention wire, male spade end & female round end.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-46B
Dimensions: 2 1/2
Weight: 0.10

$4.37

Qty


03333
Click for photos
Universal three-outlet battery powered push button ignitor.
  • 1.5 volt
  • Has three (3) terminals (male spade connector)
  • Uses a single AA battery (not included)
  • 03610 and 03620 wires are commonly used with this igniter (not included)
  • Requires 7/8” mounting hole

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 03333
Dimensions: 2 9/16” x 2”
Weight: 0.5

$35.57

Qty


IG-19B
Click for photos
Burner-mounted ceramic electrode, wire, and mounting bracket.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-19B
Weight: 0.1

$12.93

Qty


IG-48B
Click for photos
16” Universal Ignitor Wire

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-48B
Dimensions: 16
Weight: 0.05

$6.00

Qty


==> All Charbroil Igniter Components.






463234511 Heat indicators and Meat Thermometers

G431-0020-W2 / 00018
Click for photos
Round heat indicator.
  • Single probe
  • 1 13/16” diameter
  • Requires 3/8” mounting hole


Part Number: 00018 (Replaces Charbroil G431-0020-W2)
Dimensions: 1 13/16” x 1 13/16”
Weight: 0.1

$15.82

Qty


==> All Charbroil Heat indicators and Meat Thermometers.






463234511 Accessories

FS-1
Click for photos
Fish Spatula. Stainless steel fish spatula with genuine rosewood handle. 18 1/2”. 10” spatula width.

Part Number: FS-1
Dimensions: 18 1/2
Material: stainless steel
Weight: 1.0

$17.27

Qty


BB-5
Click for photos
Basting brush with angled oak handle. 18” overall length.

Part Number: BB-5
Dimensions: 18
Weight: 0.8

$8.84

Qty


WB-3
18” long wood handle brass bristle grid brush with scraper and leather hang strap.

Part Number: WB-3
Dimensions: 18
Weight: 0.59

$12.50

Qty


==> All 463234511 Accessories.
