Charbroil 463269806 Grill Parts

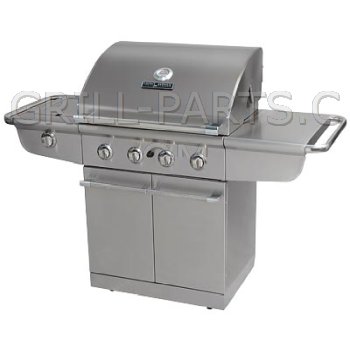

Front Avenue 4-Burner LP gas grill with side burner

Highest quality replacement parts for your Charbroil 463269806 - Free USA shipping $49 or more* - No Sales Tax*

Charbroil 463269806 owners manual and diagrams

Click the small images on the right to view Charbroil 463269806 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Charbroil 463269806-463543019330-PartsExpS1.gif

Replacement grill parts to fit Charbroil model: 463269806

On this page you'll find all of the parts that fit model Charbroil 463269806. We might not show the part you need here but we may still have it, or a functional equivalent. In this case, try the category buttons on the right. For example, if your looking for a cooking grid and there are none here, click the cooking grids button to see all of the cooking grids we have for Charbroil grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct Charbroil 463269806 BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Charbroil model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

463269806 Burners

Click for photos

Stainless steel burner for Charbroil model 463269806. Includes screw in venturi for adjusting air flow.

Part Number: 15591 (Replaces Charbroil 80006502)
Dimensions: 15 7/8” x 1”
Material: stainless steel
Weight: 0.8

==> All Charbroil Burners.

463269806 Cooking Grids

Cooking grid not known for Charbroil model 463269806. Our parts information for this grill model is incomplete, and we really don't know with certainty which cooking grid fits this model. It may be that we have the part but don't show it here due to data or other error.

If you know the original OEM part number, try searching for it in the search box at the top of this page.

You can also browse through all of the Charbroil cooking grids we carry. If we don't have the exact fit grid for your grill, we may have a suitable replacement part. Measure your existing part as well as the the grid support area of the grill so you'll know exactly what size grids will fit.

If you have this grill model and know the number and dimensions of your original cooking grids, please share this information with us. Click here to send an email to our GrillDr that includes this information. We greatly appreciate your help.

Part Number: CG-DUMMY
Weight: 1.0

==> All Charbroil Cooking Grids.

463269806 Heat Plates

Click for photos

SET OF FOUR/4 PACK Flame Tamer, stainless steel for Charbroil model 463269806. Made in USA.

NOTE: Sometimes shipped with protective vinyl peel-off coating. Remove before use.

Part Number: CLA-TS0141-X4
Dimension Front-to-Back: 16”
Dimension Side-to-Side: 3 3/4”
Material: stainless steel
Weight: 3.92

Click for photos

Stainless steel heat plate/Flame Tamer for Charbroil model 463269806.

Part Number: CBHP2 (Replaces Charbroil 80006357)
Dimension Front-to-Back: 16”
Dimension Side-to-Side: 3 3/4”
Material: stainless steel
Weight: 0.7

==> All Charbroil Heat Plates.

463269806 Igniter Components

Click for photos

Burner mounted electrode for use with 15591 and 15491 burners.

39” wire with female spade connector
Includes adapter wire part 03198 for applications needing male spade connector on electrode.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 04430
Material: ceramic
Weight: 0.1

==> All Charbroil Igniter Components.

463269806 Heat indicators and Meat Thermometers

Click for photos

Semi-circular, snap in heat indicator with 2 3/4” heat prob.

Part Number: 00473 (Replaces Charbroil 80004030)
Dimensions: 1 3/4” x 1 3/16”
Material: stainless steel
Weight: 0.1

==> All Charbroil Heat indicators and Meat Thermometers.

463269806 Accessories

Click for photos

Cast iron smoker box with six oblong venting holes. Designed to release wood smoke. Make sure this part will fit into your grill before ordering 8 3/8” x 5 1/4” x 1 3/8”.

Part Number: 00150
Dimensions: 5 1/4” x 8 3/8”
Material: cast iron
Weight: 3.90

Click for photos

Basting brush with angled oak handle. 18” overall length.

Part Number: BB-5
Dimensions: 18
Weight: 0.8

Click for photos

Chrome plated rib/potatoe rack. Spaces up to 6 racks of ribs and 6 potatoes. Fits all grills. 12” x 7 1/4”.

Part Number: RR-2
Material: chrome steel
Weight: 1.0

Click for photos

Replacement brass bristle brush head for WB-8 brush. Screws included.

Part Number: WB-8RH
Dimensions: 18 1/2
Material: stainless steel
Weight: 0.2

==> All 463269806 Accessories.

BBQ Part Categories

Charbroil 463269806 -Sunday, Jan 26 2025
