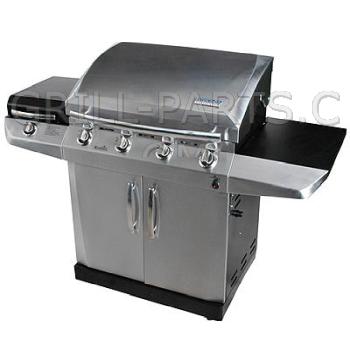

Charbroil Quantum Infrared 463271309 Grill Parts

Stainless steel burner for Charbroil model 463271309.

Part Number: CBP5 (Replaces Charbroil 80017579)
Dimensions: 15 7/8” x 1”
Material: stainless steel
Weight: 1.0

stainless steel cross-over burner

Part Number: 05595 (Replaces Charbroil 80017662)
Dimensions: 7 7/16” x 0 3/4”
Material: stainless steel
Weight: 0.1

Cast iron cooking grates for Charbroil model 463271309. SET OF FOUR (4). Porcelain treated, flat matte finish. For some grill models, these cast iron grates sit atop stainless grate such as our part# 5S574.

Each panel measures:

• 18 5/16” Front-To-Back
• 7 3/16” Side-To-Side

Part Number: 61134
Dimension Front-to-Back: 18 5/16”
Dimension Side-to-Side: 28 3/4”
Material: matte cast iron
Weight: 22.9

Cast Iron Cooking Grid - Charbroil, Kenmore for Charbroil model 463271309.

Part Number: CG-100PCI
Dimension Front-to-Back: 18 1/8”
Dimension Side-to-Side: 10”
Material: cast iron
Weight: 8.40

Grate Emitter Housing tray Charbroil with Cooking grid for Charbroil model 463271309.

Part Number: CG-91SET (Replaces Charbroil G507-2300-W1)
Dimension Front-to-Back: 18 3/8”
Dimension Side-to-Side: 7 1/16”
Material: stainless steel
Weight: 4.5

Cast iron cooking grids for Charbroil model 463271309. SET OF THREE (3) panels.

• Porcelain treated, matte finish
• Each panel measures 18 1/8” x 10”
• Overall dimensions: 18 1/8” x 30”

Part Number: CG-100PCI-X3
Dimension Front-to-Back: 18 1/8”
Dimension Side-to-Side: 30”
Material: cast iron
Weight: 25.2

SET OF FOUR/4 PACK Flame Tamer, stainless steel for Charbroil model 463271309. Made in USA.

NOTE: Sometimes shipped with protective vinyl peel-off coating. Remove before use.

Part Number: CLA-TS0141-X4
Dimension Front-to-Back: 16”
Dimension Side-to-Side: 3 3/4”
Material: stainless steel
Weight: 3.92

Stainless steel heat plate/Flame Tamer for Charbroil model 463271309.

Part Number: CBHP2 (Replaces Charbroil 80003332)
Dimension Front-to-Back: 16”
Dimension Side-to-Side: 3 3/4”
Material: stainless steel
Weight: 0.7

Ignition module switch for spark generators that accept wired remote (button) trigger switches. Fits our spark generator part numbers 03322, 03332, 03344, 03352, 03356, 03387 and 03388.
Includes:

• Push-button ignition module switch with two male spade connectors on back
• Two 20” wires with female spade connectors
• One plastic mounting nut

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03152
Dimensions: 17 3/4” x 1”
Weight: 0.1

Universal 2 3/4” adaptor wire with a round female end and a male spade end that has a protective cover.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03199C
Weight: 0.05

Ground wire required when replacing spark generator for a valve-triggered electrode with a remote switch-triggered spark generator. 03621 plugs into one switch inlet; ring connects to generator neck; switch wire plugs into the other generator switch inlet

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03621
Dimensions: 1 1/8” x 1 1/8”
Weight: 0.1

Electrode, gas collector box, and wire. The connecting wire has a flat female spade connector, which is typically used with electronic (battery operated) ignitors (see Ignition 101 in our help center).

NOTE: This electrode is also sometimes used with push-button or rotary piezo ignitors, such as our part# 03100 and 03120, which have round connectors. When connecting 01472 electrode to ignitors with round connectors, use short wire part# 03199C to convert the electrode wire from a femal spade connector to a female round connector.

Part Number: 01472 (Replaces Charbroil 80007512)
Material: ceramic
Weight: 0.1

Battery powered ignitor/spark generator for Surefire electronic ignition systems using remote button/trigger.

• 1.5 volt
• Has six (6) spark outlets (male spade connector)
• Has two (2) male spade connectors for trigger (button) part #03152 (sold separately)
• Uses a single AA battery (not included)
• Requires 7/8” mounting hole
• Overall dimensions: 2” x 3 3/8” x 2 5/8”

NOTE: The battery cap is not a push button. The ignitor is fired by a remote button/switch.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03356 (Replaces Charbroil 80018306)
Dimensions: 3 3/8” x 2”
Weight: 0.7

Battery powered push button igniter.

• Has six (6) spade type male connectors.
• Uses 1 AA battery (not supplied)
• Requires 7/8” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IGEIB6-B
Weight: 0.3

46” Wire with female spade connectors and square plastic connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-30B
Dimensions: 46
Weight: 0.1

16” Universal Ignitor Wire

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-48B
Dimensions: 16
Weight: 0.05

Semi-circular, snap in heat indicator with 2 3/4” heat prob.

Part Number: 00473 (Replaces Charbroil 80007563)
Dimensions: 1 3/4” x 1 3/16”
Material: stainless steel
Weight: 0.1

Universal Grid Lifting Tool

Part Number: BRGG
Weight: 1.0

Venturi Tube 12” Brush. Recommended by all grill manufacturers. Specially designed flexible brush to clean venturis of spider webs and other obstructions that can cause flashback fires. Stainless steel.

Part Number: VTC-B
Material: stainless steel
Weight: 0.3
