Charbroil 463440109

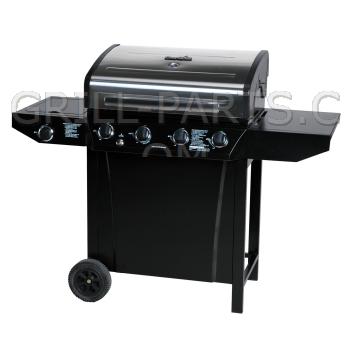

Char-Broil LP gas outdoor BBQ grill with side burner



Highest quality replacement parts for your Charbroil 463440109 - Free USA shipping $49 or more* - No Sales Tax*



Charbroil 463440109 owners manual and diagrams
Click the small images on the right to view Charbroil 463440109 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!



Charbroil 463440109-463566989030-PartsExpS1.jpg

Replacement grill parts to fit Charbroil model: 463440109
This page shows all of the parts we know fit model Charbroil 463440109. If the part you're shopping for isn't included below, you might find it using the category buttons on the right side of the page. For example, if your looking for a burner and there are none here, click the burner button to see all the burners we have for Charbroil grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Charbroil 463440109 BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Charbroil model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



463440109 Burners

80009947 / CBP6
Click for photos
Stainless steel burner for Charbroil model 463440109.

Part Number: CBP6 (Replaces Charbroil 80009947)
Dimensions: 14 3/8” x 1”
Material: stainless steel
Weight: 1.0

$35.43

Qty


==> All Charbroil Burners.






463440109 Burner Brackets and Carryovers

80009028 / CBCO1
Click for photos
Stainless steel cross over tube. Channels gas between burners.

Part Number: CBCO1 (Replaces Charbroil 80009028)
Dimensions: 7
Material: stainless steel
Weight: 0.05

$15.90

Qty


==> All Charbroil Burner Brackets and Carryovers.






463440109 Cooking Grids

80018559 / 50193
Click for photos
Channel formed U-shaped porcelain steel cooking grids for Charbroil model 463440109. Channel formed means rolled steel stamped into a U-shape; is not solid round rods. Porcelain enameled, glossy finish. Sold as a set of three (3).

Part Number: 50193 (Replaces Charbroil 80018559)
Dimension Front-to-Back: 16 13/16”
Dimension Side-to-Side: 28 5/16”
Material: porcelain steel channels
Weight: 6.7

$85.71

Qty


CG-97P-CI
Click for photos
Cast Iron Cooking Grid - Charbroil for Charbroil model 463440109.

Part Number: CG-97P-CI
Dimension Front-to-Back: 16 7/8”
Dimension Side-to-Side: 9 5/16”
Material: cast iron
Weight: 4.65

$31.88

Qty


CG-97P-CI-X3
Click for photos
Cast Iron Cooking Grids for Charbroil model 463440109. SET OF THREE (3).

Part Number: CG-97P-CI-X3
Dimension Front-to-Back: 16 7/8”
Dimension Side-to-Side: 9 5/16”
Material: cast iron
Weight: 13.95

$84.90

Qty


==> All Charbroil Cooking Grids.






463440109 Heat Plates

80008530 / CBHP6
Click for photos
Stainless steel vented heat plate/Flame Tamer for Charbroil model 463440109.

Part Number: CBHP6 (Replaces Charbroil 80008530)
Dimension Front-to-Back: 14 5/8”
Dimension Side-to-Side: 4 1/4”
Material: stainless steel
Weight: 0.7

$23.47

Qty


==> All Charbroil Heat Plates.






463440109 Igniter Components

80009029 / 04430
Click for photos
Burner mounted electrode for use with 15591 and 15491 burners.
  • 39” wire with female spade connector
  • Includes adapter wire part 03198 for applications needing male spade connector on electrode.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 04430 (Replaces Charbroil 80009029)
Material: ceramic
Weight: 0.1

$12.47

Qty


80019100 / IGEIB4-B
Click for photos
Battery powered push button igniter.
  • Has four (4) spade type male connectors.
  • Uses 1 AAA battery (not supplied)
  • Requires 3/4” or 13/16” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IGEIB4-B (Replaces Charbroil 80019100)
Weight: 0.3

$34.08

Qty


TS-IG2006
Click for photos
Push-button electronic igniter with two (2) spade connectors. Black cap. 1 AAA battery (not included).

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: TS-IG2006
Weight: 0.2

$16.46

Qty


TS-IG4010
Click for photos
Push-button electronic igniter with four (4) spade connectors. Black cap. Uses one AAA battery (not included). Requires a 3/4” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: TS-IG4010
Weight: 0.2

$18.48

Qty


IG-30B
Click for photos
46” Wire with female spade connectors and square plastic connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-30B
Dimensions: 46
Weight: 0.1

$7.10

Qty


IGEIB2-B
Click for photos
Battery powered push button igniter.
  • Has two (2) spade type male connectors.
  • Uses 1 AAA battery (not supplied)
  • Requires 3/4” or 13/16” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IGEIB2-B
Weight: 0.3

$34.08

Qty


IG-19B
Click for photos
Burner-mounted ceramic electrode, wire, and mounting bracket.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-19B
Weight: 0.1

$12.93

Qty


IG-48B
Click for photos
16” Universal Ignitor Wire

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-48B
Dimensions: 16
Weight: 0.05

$6.00

Qty


==> All Charbroil Igniter Components.






463440109 Valves, Orifices, and Manifolds

31500
Click for photos
Small 7mm brass spud orifice. #72 starter hole. Must be drilled to proper drill size.

If you would like us to drill the orifice(s) for you, there is a single $15 fee for this service, which will be added to the order when processed. Please tell us the number of burners in your grill and the total BTUs of your grill (less side burner and rotisserie burner, if any). BTU rating information can usually be found on the grill's CSA certification tag, located somewhere on the grill. Please furnish this, along with any other information you deem relevant, in the Message to CLA box during checkout.

Part Number: 31500
Material: brass
Weight: 0.01

$7.54

Qty


3730C
Click for photos
Clamp-on brass gas valve for Charbroil.
  • D-Value: 6 o'clock
  • Stem diameter: 8mm
  • Blank orifice included (with starter hole) or use original orifice.

This part is currently out of stock, but more are already on the way and expected to arrive mid January

Part Number: 3730C
Material: brass
Weight: 0.3

$28.50

Qty


==> All Charbroil Valves, Orifices, and Manifolds.






463440109 Heat indicators and Meat Thermometers

4157171 / 00018
Click for photos
Round heat indicator.
  • Single probe
  • 1 13/16” diameter
  • Requires 3/8” mounting hole


Part Number: 00018 (Replaces Charbroil 4157171)
Dimensions: 1 13/16” x 1 13/16”
Weight: 0.1

$15.82

Qty


==> All Charbroil Heat indicators and Meat Thermometers.






463440109 Accessories

00030
Click for photos
EZ Check Gas level indicator. Accurate from -22° to 104°F. Magnetic back. Works on all sizes of tanks.

Part Number: 00030
Weight: 0.1

$7.60

Qty


WB-1
12” long wood handle brass bristle grid brush with scraper and leather hang strap.

Part Number: WB-1
Dimensions: 12
Weight: 0.4

$10.90

Qty


==> All 463440109 Accessories.
