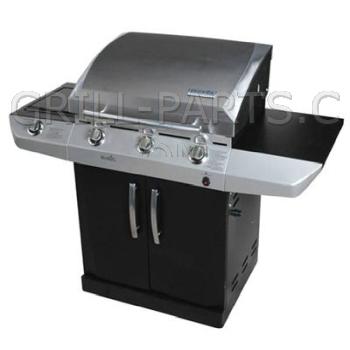

Charbroil Quantum Infrared 466270909 Grill Parts

Stainless steel burner for Charbroil model 466270909.

Part Number: CBP5 (Replaces Charbroil 80017579)
Dimensions: 15 7/8” x 1”
Material: stainless steel
Weight: 1.0

Stainless steel cross-over burner.

Part Number: 05596 (Replaces Charbroil 80017669)
Dimensions: 8 1/2” x 0 3/4”
Material: stainless steel
Weight: 0.1

Grate Emitter Housing tray Charbroil with Cooking grid for Charbroil model 466270909. Includes ONLY TWO PIECES (1) grate emitter housing tray and (1) cooking grid that fits into the tray. Number required varies, check your grill to be sure.

Part Number: CG-90SET
Dimension Front-to-Back: 18 3/8”
Dimension Side-to-Side: 8 11/16”
Material: stainless steel
Weight: 6.1

Infrared slotted stamped stainless steel cooking grid set that features slotted grease drain holes for improved performance for Charbroil model 466270909.

• SET OF TWO (2)
• Each panel measures 18 7/16” x 8 7/8”
• Overall dimensions: 18 7/16” x 17 3/4”

Part Number: CG-97SS-X2 (Replaces Charbroil G515-4700-W1)
Dimension Front-to-Back: 18 7/16”
Dimension Side-to-Side: 17 3/4”
Material: stamped stainless steel
Weight: 5.10

Infrared slotted stamped stainless steel cooking grid set that features slotted grease drain holes for improved performance for Charbroil model 466270909.

• SET OF THREE (3)
• Each panel measures 18 7/16” x 8 7/8”
• Overall dimensions: 18 7/16” x 26 5/8”

Part Number: CG-97SS-X3 (Replaces Charbroil G515-4800-W1)
Dimension Front-to-Back: 18 7/16”
Dimension Side-to-Side: 26 5/8”
Material: stamped stainless steel
Weight: 7.65

SET OF FOUR/4 PACK Flame Tamer, stainless steel for Charbroil model 466270909. Made in USA.

NOTE: Sometimes shipped with protective vinyl peel-off coating. Remove before use.

Part Number: CLA-TS0141-X4
Dimension Front-to-Back: 16”
Dimension Side-to-Side: 3 3/4”
Material: stainless steel
Weight: 3.92

Stainless steel heat plate/Flame Tamer for Charbroil model 466270909.

Part Number: CBHP2 (Replaces Charbroil 80003332)
Dimension Front-to-Back: 16”
Dimension Side-to-Side: 3 3/4”
Material: stainless steel
Weight: 0.7

Ignition module switch for spark generators that accept wired remote (button) trigger switches. Fits our spark generator part numbers 03322, 03332, 03344, 03352, 03356, 03387 and 03388.
Includes:

• Push-button ignition module switch with two male spade connectors on back
• Two 20” wires with female spade connectors
• One plastic mounting nut

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03152
Dimensions: 17 3/4” x 1”
Weight: 0.1

Universal 2 3/4” adaptor wire with a round female end and a male spade end that has a protective cover.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03199C
Weight: 0.05

46” Wire with female spade connectors and square plastic connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-30B
Dimensions: 46
Weight: 0.1

Electrode, gas collector box, and wire. The connecting wire has a flat female spade connector, which is typically used with electronic (battery operated) ignitors (see Ignition 101 in our help center).

NOTE: This electrode is also sometimes used with push-button or rotary piezo ignitors, such as our part# 03100 and 03120, which have round connectors. When connecting 01472 electrode to ignitors with round connectors, use short wire part# 03199C to convert the electrode wire from a femal spade connector to a female round connector.

Part Number: 01472 (Replaces Charbroil 80007512)
Material: ceramic
Weight: 0.1

Battery powered push button igniter.

• Has six (6) spade type male connectors.
• Uses 1 AA battery (not supplied)
• Requires 7/8” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IGEIB6-B (Replaces Charbroil 80018343)
Weight: 0.3

Semi-circular, snap in heat indicator with 2 3/4” heat prob.

Part Number: 00473 (Replaces Charbroil 80007563)
Dimensions: 1 3/4” x 1 3/16”
Material: stainless steel
Weight: 0.1

Wundersmoke Hickory Chips. These unique hickory wood smoking chips add distinctive hickory wood flavoring to your food. For use will all grills. Comes with reusable puck. One 1lb bag.

Part Number: BP-6
Weight: 1.0

Stainless steel flipper. The ultimate spatula tool, specially curved for perfect flips every time. 18” overall.

Part Number: SF-1
Dimensions: 18
Material: stainless steel
Weight: 0.4

EZ Check Gas level indicator. Accurate from -22° to 104°F. Magnetic back. Works on all sizes of tanks.

Part Number: 00030
Weight: 0.1

Aluminum foil grilling trays. Package of three.

• Heavy duty aluminum foil
• Re-usable
• Great for grilling delicate foods like fish and veggies

Part Number: 50426
Dimensions: 9” x 13”
Weight: 0.4

Scrub brushes. Plastic grill scrubber. Cleans all types of cooking grids. Plastic grip handle.

Part Number: WB-7
Dimensions: 6” x 3 1/2”
Weight: 0.2
