Charbroil 466471109 Grill Parts

Charbroil logo



Charbroil 466471109

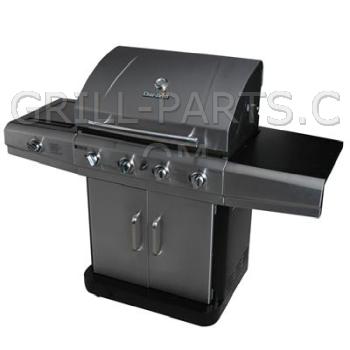

Char-Broil 4-Burner LP gas outdoor BBQ grill with side burner



Highest quality replacement parts for your Charbroil 466471109 - Free USA shipping $49 or more* - No Sales Tax*



Charbroil 466471109 owners manual and diagrams
Click the small images on the right to view Charbroil 466471109 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!



Charbroil 466471109-463362889030-PartsExpS1.jpg

Replacement grill parts for the Charbroil model: 466471109
On this page you'll find all of the parts that fit model Charbroil 466471109. If you can't find the part you need below, click on the appropriate category button on the right side of the page. For example, if your looking for a cooking grid and there are none here, click the cooking grids button to see all of the cooking grids we have for Charbroil grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct Charbroil 466471109 BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Charbroil model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



466471109 Burners

80009947 / CBP6
Click for photos
Stainless steel burner for Charbroil model 466471109.

Part Number: CBP6 (Replaces Charbroil 80009947)
Dimensions: 14 3/8” x 1”
Material: stainless steel
Weight: 1.0

$35.43

Qty


==> All Charbroil Burners.






466471109 Burner Brackets and Carryovers

80009949 / CBCO1
Click for photos
Stainless steel cross over tube. Channels gas between burners.

Part Number: CBCO1 (Replaces Charbroil 80009949)
Dimensions: 7
Material: stainless steel
Weight: 0.05

$15.90

Qty


==> All Charbroil Burner Brackets and Carryovers.






466471109 Cooking Grids

CG-DUMMY
Cooking grid not known for Charbroil model 466471109. Our parts information for this grill model is incomplete, and we really don't know with certainty which cooking grid fits this model. It may be that we have the part but don't show it here due to data or other error.

If you know the original OEM part number, try searching for it in the search box at the top of this page.

You can also browse through all of the Charbroil cooking grids we carry. If we don't have the exact fit grid for your grill, we may have a suitable replacement part. Measure your existing part as well as the the grid support area of the grill so you'll know exactly what size grids will fit.

If you have this grill model and know the number and dimensions of your original cooking grids, please share this information with us. Click here to send an email to our GrillDr that includes this information. We greatly appreciate your help.

Part Number: CG-DUMMY
Weight: 1.0
==> All Charbroil Cooking Grids.






466471109 Heat Plates

80008074 / CBHP5
Click for photos
Stainless steel heat plate/Flame Tamer for Charbroil model 466471109.

Part Number: CBHP5 (Replaces Charbroil 80008074)
Dimension Front-to-Back: 14 5/8”
Dimension Side-to-Side: 4 5/8”
Material: stainless steel
Weight: 0.7

$32.07

Qty


==> All Charbroil Heat Plates.






466471109 Igniter Components

TS-IG2006
Click for photos
Push-button electronic igniter with two (2) spade connectors. Black cap. 1 AAA battery (not included).

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: TS-IG2006
Weight: 0.2

$16.46

Qty


IG-30B
Click for photos
46” Wire with female spade connectors and square plastic connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-30B
Dimensions: 46
Weight: 0.1

$7.10

Qty


80000030 / IGEIB2-B
Click for photos
Battery powered push button igniter.
  • Has two (2) spade type male connectors.
  • Uses 1 AAA battery (not supplied)
  • Requires 3/4” or 13/16” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IGEIB2-B (Replaces Charbroil 80000030)
Weight: 0.3

$34.08

Qty


80009948 / 04430
Click for photos
Burner mounted electrode for use with 15591 and 15491 burners.
  • 39” wire with female spade connector
  • Includes adapter wire part 03198 for applications needing male spade connector on electrode.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 04430 (Replaces Charbroil 80009948)
Material: ceramic
Weight: 0.1

$12.47

Qty


IG-19B
Click for photos
Burner-mounted ceramic electrode, wire, and mounting bracket.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-19B
Weight: 0.1

$12.93

Qty


IG-48B
Click for photos
16” Universal Ignitor Wire

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-48B
Dimensions: 16
Weight: 0.05

$6.00

Qty


==> All Charbroil Igniter Components.






466471109 Knobs and Handles

01800
Click for photos
Universal black control knob. Counter-clockwise bezel.
  • Off position D-Value: Selectable
  • Knob diameter: 2 1/16”
  • Socket diameter: 8mm
  • Knob shaft: None


Part Number: 01800
Dimensions: 2 1/16” x 2 1/16”
Material: plastic
Weight: 0.05

$6.55

Qty


80008675 / 01700
Click for photos
Black control knob for Fire Magic Custom, Regal, and Gourmet grills.
  • Off position D-Value: 6 o'clock
  • Knob diameter: 2”
  • Socket diameter: 8mm
  • Knob shaft: None


Part Number: 01700 (Replaces Charbroil 80008675)
Dimensions: 2” x 2”
Material: plastic
Weight: 0.1

$10.84

Qty


==> All Charbroil Knobs and Handles.






466471109 Heat indicators and Meat Thermometers

80007690 / 00012
Click for photos
Round 2 3/8” diameter heat indicator, includes one wing nut and one locking nut.
  • Requires minimum 3/8” mounting hole
  • Single 1 3/8” probe
  • Threaded portion of probe stops at 1/2” from base
  • See photo for details


Part Number: 00012 (Replaces Charbroil 80007690)
Dimensions: 2 3/8” x 2 3/8”
Weight: 0.1

$15.90

Qty


==> All Charbroil Heat indicators and Meat Thermometers.






466471109 Accessories

40269
Click for photos
20” Professional Extra Long Tong.
20” Stainless steel tong with red soft grip rubber inserts. Grip your food on the grill with ease. Manual lock saves on storage space.


Part Number: 40269
Material: stainless steel
Weight: 0.14

SALE  $14.99
Qty


BB-5
Click for photos
Basting brush with angled oak handle. 18” overall length.

Part Number: BB-5
Dimensions: 18
Weight: 0.8

$8.84

Qty


==> All 466471109 Accessories.
