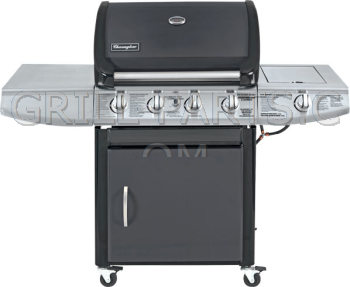

Charmglow 810-7400-F Grill Parts

Adjustable universal front-to-back tube burner with top-ported flame holes for Charmglow model 810-7400-F. This burner may not work with existing ignition electrodes and back burner cross-overs.

• Variable length burner adjusts from 13 1/2” to 17 1/2”.
• Includes extra hardware and mounting brackets to accommodate almost all grills.
• Comes with complete installation instructions and diagrams.

WARNING: Before ordering this universal burner, please verify that it will work in your grill per the specifications above. If you order this universal burner and it does not work in your grill, please review our Return Policy for ”Ordered Wrong Part.” You will be responsible for all shipping fees.


Part Number: FP-BR1001
Material: stainless steel
Weight: 0.7

Premium grade 304 stainless burner for Charmglow model 810-7400-F.


Part Number: CTB3 (Replaces Charmglow 154-6430-0)
Dimensions: 15 7/8
Material: stainless steel
Weight: 1.0

Cast iron cooking grid for Charmglow model 810-7400-F. Porcelain treated, matte finish. Sold individually, number required varies by grill model.

Part Number: CG-58P-CI (Replaces Charmglow 115-2300-0)
Dimension Front-to-Back: 19 1/8”
Dimension Side-to-Side: 12 3/8”
Material: cast iron
Weight: 8.35

SET OF THREE/3 PACK Stainless steel Heat Distribution Plates/Flame Tamers for Charmglow model 810-7400-F. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.e.

Part Number: CLA-TS0156-X3
Dimension Front-to-Back: 16 15/16”
Dimension Side-to-Side: 3 15/16”
Material: stainless steel
Weight: 2.1

SET OF FOUR/4 PACK Stainless steel Heat Distribution Plates/Flame Tamers for Charmglow model 810-7400-F. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.e.

Part Number: CLA-TS0156-X4
Dimension Front-to-Back: 16 15/16”
Dimension Side-to-Side: 3 15/16”
Material: stainless steel
Weight: 2.8

Stainless steel heat distribution plate for Charmglow model 810-7400-F.

Part Number: BMHP1 (Replaces Charmglow 600-7310-T)
Dimension Front-to-Back: 16 3/4”
Dimension Side-to-Side: 3 7/8”
Material: stainless steel
Weight: 0.7

Lower heat shield. Made in USA

Part Number: CLA-MS0273 (Replaces Charmglow 600-7400-F)
Dimensions: 12 3/16” x 22 1/16”
Material: stainless steel
Weight: 2.30

Universal battery powered push button ignitor.

• 1.5 volt
• Has five (5) terminals (male spade connector)
• Uses a single AA battery (not included))
• 03610 and 03620 wires are commonly used with this igniter (not included)
• Requires 7/8” mounting hole
• Overall dimensions: 2” x 3 3/8” x 3”
• Some original igniters had an integrated ground wire. Use wire part# 03620 for this purpose.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03380
Dimensions: 3 5/16” x 2”
Weight: 0.7

46” Wire with female spade connectors and square plastic connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-30B
Dimensions: 46
Weight: 0.1

16” Universal Ignitor Wire

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-48B
Dimensions: 16
Weight: 0.05

Push-button electronic igniter with three (3) spade connectors. Comes with sliver or black cap per availability. Needs (1) AA battery (not included); requires 7/8” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: TS-IG3007 (Replaces Charmglow 119-4400-5)
Weight: 0.2

Collector box with ceramic electrode and wire.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-23B (Replaces Charmglow 600-7419-B)
Weight: 0.3

Stainless steel grease tray. Includes handle, grease shield and hardware; unassembled. Made in USA.

Part Number: CLA-DS0275 (Replaces Charmglow 600-7503-0)
Dimensions: 20 1/4” x 23 1/4”
Material: stainless steel
Weight: 8.10

Oval lid heat indicator. Three-hole mount with two threaded studs 1 1/2” offset on center. Requires 3/8” center hole for temperature sensor probe.

Part Number: 22551 (Replaces Charmglow 072-7310-0)
Dimensions: 2 15/16” x 1 7/8”
Weight: 0.2

Basting brush with angled oak handle. 18” overall length.

Part Number: BB-5
Dimensions: 18
Weight: 0.8

Venturi Tube 12” Brush. Recommended by all grill manufacturers. Specially designed flexible brush to clean venturis of spider webs and other obstructions that can cause flashback fires. Stainless steel.

Part Number: VTC-B
Material: stainless steel
Weight: 0.3
