Charmglow 810-8401-F Grill Parts

Charmglow logo



Charmglow 810-8401-F

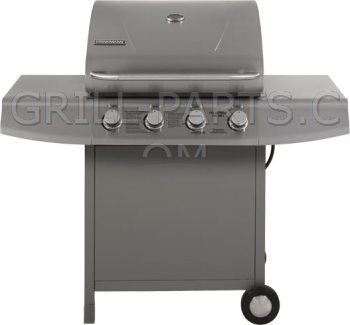

Charmglow 4 Burner Gas Grill



Highest quality replacement parts for your Charmglow 810-8401-F - Free USA shipping $49 or more* - No Sales Tax*



Charmglow 810-8401-F owners manual and diagrams
Diagrams & owners manual not available for grill model# 810-8401-F. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!




Replacement grill parts for the Charmglow model: 810-8401-F
All of the parts we have for Charmglow 810-8401-F are shown on this page. We might not show the part you need here but we may still have it, or a functional equivalent. In this case, try the category buttons on the right. For example, if your looking for a heat indicator and there are none here, click the heat indicator button to see all we have for Charmglow grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct Charmglow 810-8401-F BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Charmglow model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



810-8401-F Burners

FP-BR1001
Click for photos
Adjustable universal front-to-back tube burner with top-ported flame holes for Charmglow model 810-8401-F. This burner may not work with existing ignition electrodes and back burner cross-overs.
  • Variable length burner adjusts from 13 1/2” to 17 1/2”.
  • Includes extra hardware and mounting brackets to accommodate almost all grills.
  • Comes with complete installation instructions and diagrams.

WARNING: Before ordering this universal burner, please verify that it will work in your grill per the specifications above. If you order this universal burner and it does not work in your grill, please review our Return Policy for ”Ordered Wrong Part.” You will be responsible for all shipping fees.


Part Number: FP-BR1001
Material: stainless steel
Weight: 0.7

SALE  $19.99
Qty


CTB2
Click for photos
stainless steel burner for Charmglow model 810-8401-F.

Part Number: CTB2
Dimensions: 16 1/4
Material: stainless steel
Weight: 1.0

$38.24

Qty


==> All Charmglow Burners.






810-8401-F Cooking Grids

22005-181-R
Click for photos
Cast iron cooking grid for Charmglow model 810-8401-F.
  • Sold individually
  • Number required varies, check your grill
  • Porcelain enameled, glossy finish


Part Number: 22005-181-R
Dimension Front-to-Back: 19 1/16”
Dimension Side-to-Side: 12 1/2”
Material: Cast iron
Weight: 7.5

$46.44

Qty


CG-58P-CI
Click for photos
Cast iron cooking grid for Charmglow model 810-8401-F. Porcelain treated, matte finish. Sold individually, number required varies by grill model.

Part Number: CG-58P-CI
Dimension Front-to-Back: 19 1/8”
Dimension Side-to-Side: 12 3/8”
Material: cast iron
Weight: 8.35

$69.50

Qty


CG-58P-CI-X2
Click for photos
Cast iron cooking grids for Charmglow model 810-8401-F. SET OF TWO (2) panels.
  • Porcelain treated, matte finish
  • Each panel measures 19 1/8” x 12 3/8”
  • Overall dimensions: 19 1/8” x 24 3/4”


Part Number: CG-58P-CI-X2
Dimension Front-to-Back: 19 1/8”
Dimension Side-to-Side: 12 3/8”
Material: cast iron
Weight: 16.7

$124.96

Qty


CLA-GS0190
Click for photos

Premium quality heavy duty stainless steel cooking grid for Charmglow model 810-8401-F. Our USA-made premium stainless grids are simply the best obtainable. We have them manufactured here in the USA to our specifications and standards, which are high. Of course, they're not available anywhere else.

Unlike the standard issue stainless grids generally found today, which are typically low grade stainless and sometimes hollow, or coated carbon steel, our premium grids are made from solid high quality stainless steel rods. If you're looking for the best, you've found it. Just look at the weight of one of these grids, over 8 pounds of solid stainless each.

  • 304 commercial grade stainless steel
  • Large diameter 5/16” solid stainless rods
  • Dimensions: 19 1/4” x 12 1/2”
  • Made in USA.
  • Sold individually.


Part Number: CLA-GS0190
Dimension Front-to-Back: 19 1/4”
Dimension Side-to-Side: 12 1/2”
Material: stainless steel
Weight: 8.0

$77.54

Qty


==> All Charmglow Cooking Grids.






810-8401-F Heat Plates

CLA-TS0156-X3
Click for photos
SET OF THREE/3 PACK Stainless steel Heat Distribution Plates/Flame Tamers for Charmglow model 810-8401-F. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.e.

Part Number: CLA-TS0156-X3
Dimension Front-to-Back: 16 15/16”
Dimension Side-to-Side: 3 15/16”
Material: stainless steel
Weight: 2.1

$58.41

Qty


CLA-TS0156-X4
Click for photos
SET OF FOUR/4 PACK Stainless steel Heat Distribution Plates/Flame Tamers for Charmglow model 810-8401-F. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.e.

Part Number: CLA-TS0156-X4
Dimension Front-to-Back: 16 15/16”
Dimension Side-to-Side: 3 15/16”
Material: stainless steel
Weight: 2.8

$74.84

Qty


BMHP1
Click for photos
Stainless steel heat distribution plate for Charmglow model 810-8401-F.

Part Number: BMHP1
Dimension Front-to-Back: 16 3/4”
Dimension Side-to-Side: 3 7/8”
Material: stainless steel
Weight: 0.7

$21.09

Qty


==> All Charmglow Heat Plates.






810-8401-F Igniter Components

600-8401-B / IG-22B
Click for photos
Collector box with ceramic electrode and wire.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-22B (Replaces Charmglow 600-8401-B)
Weight: 0.3

$14.68

Qty


==> All Charmglow Igniter Components.






810-8401-F Regulators and Hoses

155-7600-0 / HR-4B
Click for photos

Type 1 LP Regulator with 22” Pressure Hose and 3/8” Female Flare Fitting.FITS: Up to 60,000 BTUs



Part Number: HR-4B (Replaces Charmglow 155-7600-0)
Dimensions: 22
Weight: 0.8

$34.71

Qty


==> All Charmglow Regulators and Hoses.






810-8401-F Accessories

BRGG
Click for photos
Universal Grid Lifting Tool

Part Number: BRGG
Weight: 1.0

$20.11

Qty


WB-8RH
Click for photos
Replacement brass bristle brush head for WB-8 brush. Screws included.

Part Number: WB-8RH
Dimensions: 18 1/2
Material: stainless steel
Weight: 0.2

$9.45

Qty


==> All 810-8401-F Accessories.
