Coleman Even Heat G52230 Grill Parts

Coleman logo



Coleman G52230

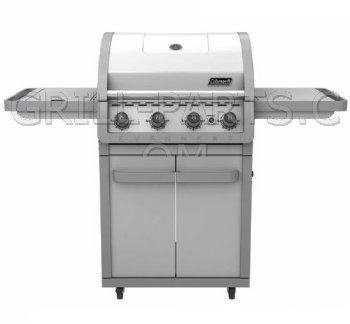

Coleman EVEN HEAT™ 4-Burner Natural Gas Barbecue



Highest quality replacement parts for your Coleman Even Heat G52230 - Free USA shipping $49 or more* - No Sales Tax*



Coleman G52230 owners manual and diagrams
Click the small images on the right to view Coleman G52230 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!



Coleman G52230-4E4445933-PartsExpS1.jpg  Coleman G52230-4E4445933-PartsLstS1.gif

Replacement grill parts for the Coleman Even Heat G52230
All of the parts we have for Coleman G52230 are shown on this page. If the part you need is not shown below, try clicking the appropriate category button on the right side of the page. For example, if your looking for a Flame Tamer/Heat Plate and there are none here, click the Heat Plate button to see all of the Heat Plates we have for Coleman grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Coleman G52230 BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Coleman model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



G52230 Cooking Grids

65253
Click for photos
Cast iron cooking grids for Coleman model G52230. Porcelain treated, flat matte finish. Sold as a set of three (3).

Part Number: 65253
Dimension Front-to-Back: 18 3/8”
Dimension Side-to-Side: 26 7/16”
Material: matte cast iron
Weight: 16.5

$124.81

Qty


==> All Coleman Cooking Grids.






G52230 Heat Plates

93331
Click for photos
Porcelain steel Heat Distribution Plate for Coleman model G52230. Sold individually.

Part Number: 93331
Dimension Front-to-Back: 16”
Dimension Side-to-Side: 5 13/16”
Material: porcelain steel
Weight: 1.4

$19.44

Qty


==> All Coleman Heat Plates.






G52230 Igniter Components

03152
Click for photos
Ignition module switch for spark generators that accept wired remote (button) trigger switches. Fits our spark generator part numbers 03322, 03332, 03344, 03352, 03356, 03387 and 03388.
Includes:
  • Push-button ignition module switch with two male spade connectors on back
  • Two 20” wires with female spade connectors
  • One plastic mounting nut

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 03152
Dimensions: 17 3/4” x 1”
Weight: 0.1

$20.78

Qty


03153
Click for photos
round trigger switch for AA and AAA spark generators; use original wires

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 03153
Dimensions: 17 3/4” x 1”
Weight: 0.1

$10.87

Qty


03352
Click for photos
Battery powered ignitor/spark generator for Surefire electronic ignition systems using remote button/trigger switch.

Note: Some original ignitors (spark generators) that 03352 replaces had an integrated/built-in ground wire which is not present on this part (03352). If the ignitor you are replacing has an integrated/built-in ground wire, you will also need our ground wire part 03621. Inspect your system.
  • 1.5 volt
  • Has five (5) spark outlets (male spade connector)
  • Has two (2) male spade connectors for the button/trigger switch part 03152 (sold separately)
  • Uses a single AA battery (not included)
  • Requires 7/8” mounting hole
  • Overall dimensions: 2” x 3 3/8” x 2 5/8”
NOTE: The battery cap is not a push button. The ignitor is fired by a remote button/trigger switch.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 03352
Dimensions: 3 3/8” x 2”
Weight: 0.7

$39.86

Qty


05223
Click for photos
electrode

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 05223
Material: ceramic
Weight: 0.1

$9.42

Qty


==> All Coleman Igniter Components.






G52230 Heat indicators and Meat Thermometers

00012
Click for photos
Round 2 3/8” diameter heat indicator, includes one wing nut and one locking nut.
  • Requires minimum 3/8” mounting hole
  • Single 1 3/8” probe
  • Threaded portion of probe stops at 1/2” from base
  • See photo for details


Part Number: 00012
Dimensions: 2 3/8” x 2 3/8”
Weight: 0.1

$15.90

Qty


==> All Coleman Heat indicators and Meat Thermometers.






G52230 Accessories

40259
Click for photos
15” Stainless steel tong.
  • Soft comfort grip
  • Locking mechanism


Part Number: 40259
Dimensions: 15
Material: stainless steel
Weight: 0.14

$9.92

Qty


77330
Click for photos
8” Plastic grill brush with scraper.

Part Number: 77330
Weight: 0.3

$3.53

Qty


==> All G52230 Accessories.
