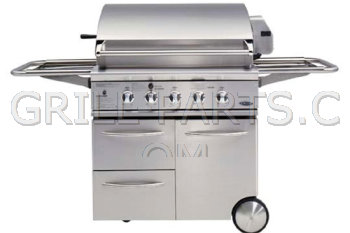

DCS BGA36-BQAR (pre 2006) Grill Parts

30639-1-R Smoker burner for DCS model BGA36-BQAR (pre 2006).
Stainless steel replacement smoker burner.

Fits DCS BG36, BG48, BGGA36, BGA48, BGB36, and BGB48 Professional Series grills. Replaces original DCS part# 30639-1.

.

Part Number: DCS-30639-1-R1 (Replaces DCS DCS-30639-1)
Dimensions: 18” x 1”
Material: stainless steel
Weight: 1.0

18408-R Tube burner for DCS model BGA36-BQAR (pre 2006).
Stainless steel replacement ”U” burner.

Fits BGA36, BGA48, BGB36, BGB48 Professional Series grills by Dynamic Cooking Systems.

• Replaces original DCS part# 18408.
• Premium 304 grade stainless steel
• Sold individually

Part Number: DCS-18408-R (Replaces DCS DCS-18408)
Dimensions: 19 1/4” x 6”
Material: stainless steel
Weight: 3.9

304 Stainless steel 15,000 BTU infrared rotissierie burner for DCS model BGA36-BQAR (pre 2006). For use with both liquid propane (LP) and natural gas grills. Orifice not included. Use old orifice or purchase our orifice part# CLA-VL0251 for LP, or part# CLA-VB0246 for natural gas applications.

Dimensions:

• Maximum overall length, including mounting tab on one end: 20 7/8”
• Maximum width: 3 3/8”

Part Number: CLA-BS0250 (Replaces DCS DCS-12021-2)
Dimensions: 3 3/8” x 20”
Material: stainless steel and ceramic
Weight: 3.50

18369-GRID-SS Stainless steel Cooking Grid for DCS model BGA36-BQAR (pre 2006). Made for early 36” and 48” DCS grills, these Stainless round rod grids are a perfect replacement for the original channeled grates. Fits BGA36-BQAR, BGA48-BQR Professional Series DCS grills by Dynamic Cooking Systems.

• One grid replaces two 18369 grates.
• Commercial 304 grade stainless steel
• Large 5/16” diameter round stainless rods
• Measures 20 1/2” x 10 3/8”
• Sold individually

Part Number: 18369-GRID-SS (Replaces DCS DCS-18369)
Dimension Front-to-Back: 20 1/2”
Dimension Side-to-Side: 10 3/8”
Material: stainless steel
Weight: 10.2

18369-GRID-PC Porcelain coated steel cooking grid for DCS model BGA36-BQAR (pre 2006). Made for early 36” and 48” DCS grills, these Stainless round rod grids are a perfect replacement for the original channeled grates. Fits BGA36-BQAR, BGA48-BQR Professional Series DCS grills by Dynamic Cooking Systems.

• One grid replaces two 18369 grates.
• Large 5/16” diameter round rods
• Measures 20 1/2” x 10 7/16”
• Sold individually

Part Number: 18369-GRID-PC
Dimension Front-to-Back: 20 1/2”
Dimension Side-to-Side: 10 7/16”
Material: porcelain steel
Weight: 10.11

32291-02-R Radiant Assembly BGA/BGB or RADIANT>
Stainless steel Housing Radiant housing/Tray assembly. Fits BGA27, BGA36, BGA48, BGB36, and BGB48 Professional Series grills grills by Fisher & Paykel.

Includes:
• 32264-01 Radiant Cap
• 32218-02 Radiant

• Replaces factory part# 32291-02
• Premium grade 304 stainless steel
• Holds 18 ceramic rods (not included)
• Sold individually

NOTE: Part# 32291-02 is shown on some BGA27 models as the Radiant only, not an assembly, but is the same.

Part Number: DCS-32291-02-R (Replaces DCS DCS-32291-02)
Dimensions: 18 5/8” x 9 7/8”
Material: stainless steel
Weight: 3.3

32224-R Ceramic Radiant Rods. Sometimes called CERAMIC ROD 9.50 (PKD).
Ceramic rods for radiant tray. 18 count. Fits many DCS Professional Series grills by Dynamic Cooking Systems.

• Replaces factory part# 32224
• Round ceramic rods are 9.5” long and 9/16” in diameter
• Sold as a package of 18 rods

Also available in a package of three. See part# CLA-MC0357.

Part Number: DCS-32224-R (Replaces DCS DCS-32224)
Dimensions: 9 1/2” x 9/16”
Material: ceramic
Weight: 2.3

Ceramic radiant rods, package of three.

Part Number: CLA-MC0357
Dimensions: 9 1/2” x 9/16”
Material: ceramic
Weight: 0.6

Gas collector box assembly. Includes collector box, ceramic electrode, and wire. Fits both left and right hand side.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-33B (Replaces DCS DCS-32801)
Weight: .05

18351-R Ignition Module 6 Outputs (36-BQAR,48-BQR) or Battery Igniter.
9 volt spark generator with remote push button. Fits BG36, BG48, BGA36, BGA48, BGB36, and BGB48 series Professional grills that require a 6 outlet igniter.

• Replaces factory part 18351
• Includes 18353 ignition button
• Requires 9V battery (not included)
• Sold individually

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: DCS-18351-R (Replaces DCS DCS-18351)
Weight: 0.7

46” Wire with female spade connectors and square plastic connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-30B
Dimensions: 46
Weight: 0.1

Type 1 LP Regulator with 22” Pressure Hose and 3/8” Female Flare Fitting.FITS: Up to 60,000 BTUs

Part Number: HR-4B (Replaces DCS DCS-13230)
Dimensions: 22
Weight: 0.8

Brass valve for DCS.

• For LP and natural gas grills (see below)
• Off position D-Value: 12 o'clock
• Stem diameter: 8mm
• Orifice not included

NOTE: There is a set screw in the stem that allows this valve to be used in both LP or natural gas grills. The valve is shipped with the screw set in LP position. Turn the screw counterclockwise about seven turns for natural gas use.

Part Number: 30171 (Replaces DCS DCS-13017-01)
Dimensions: 3 7/16” x 1 5/16”
Material: brass
Weight: 0.3

#59 brass orifice for rotisserie burner. Fits liquid propane (LP) gas grills. Includes brass elbow with 1/4” compression fitting.

Part Number: CLA-VL0251 (Replaces DCS DCS-18193)
Material: brass
Weight: 0.15

#55 orifice for infrared burners use on natural Gas grills. Includes brass elbow with 1/4” compression fitting.

Part Number: CLA-VB0246
Dimensions: 3 3/8” x 17 1/4”
Material: stainless steel and ceramic
Weight: 0.3

32957-R Chip Tray.
Stainless steel wood chip tray for smoker.

Fits DCS BGA36, BGA48, BGB36 and BGB48 Professional Series grills. Replaces original DCS part# 32957.

.


Part Number: DCS-32957-R (Replaces DCS DCS-32957)
Material: stainless steel
Weight: 0.40

Cast iron smoker box with six oblong venting holes. Designed to release wood smoke. Make sure this part will fit into your grill before ordering 8 3/8” x 5 1/4” x 1 3/8”.

Part Number: 00150
Dimensions: 5 1/4” x 8 3/8”
Material: cast iron
Weight: 3.90

20” Professional Extra Long Tong.
20” Stainless steel tong with red soft grip rubber inserts. Grip your food on the grill with ease. Manual lock saves on storage space.


Part Number: 40269
Material: stainless steel
Weight: 0.14

Chrome plated rib/potatoe rack. Spaces up to 6 racks of ribs and 6 potatoes. Fits all grills. 12” x 7 1/4”.


Part Number: RR-2
Material: chrome steel
Weight: 1.0
