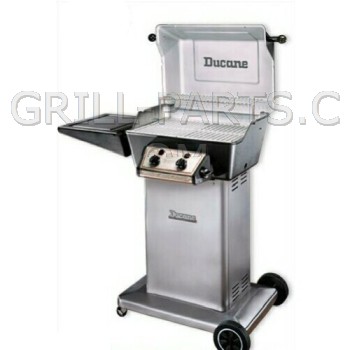

Ducane 1204SHLPE Grill Parts

Stainless steel right side P burner for Ducane model 1204SHLPE. Requires DUCHS holdown strap when used with models 1205 and 2005. Use with IG-9B igniter

Part Number: DUC-2RSS (Replaces Ducane G4263633)
Dimensions: 13 3/4” x 7”
Material: 304 stainless steel
Weight: 3.0

Stainless steel left side P burner for Ducane model 1204SHLPE. Requires DUCHS holdown strap when used with models 1205 and 2005. Use with IG-9B igniter.

Part Number: DUC-2LSS (Replaces Ducane G4263599)
Dimensions: 13 3/4” x 7”
Material: 304 stainless steel
Weight: 3.0

U burner support bracket for Ducane model 1204SHLPE. Replaces OEM# 20175501. Sold indivually. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.

Part Number: CLA-MS0057
Material: stainless steel
Weight: 0.05

C burner support bracket for Ducane model 1204SHLPE. Replaces OEM# G4162359. Sold indivually. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.

Part Number: CLA-MS0058
Material: stainless steel
Weight: 0.05

Stainless steel burner kit for Ducane model 1204SHLPE. Includes left-hand P burner 123L1, 03758 electrode, wire, and collector box.

Part Number: 12011
Dimensions: 13 5/8” x 6 5/8”
Material: stainless steel
Weight: 1.0

Stainless steel burner kit for Ducane model 1204SHLPE. Includes right-hand P burner 123R1, 03758 electrode, wire, and collector box.

Part Number: 12021
Dimensions: 13 5/8” x 6 5/8”
Material: stainless steel
Weight: 1.0

Stainless steel Sear Grid set for Ducane model 1204SHLPE. Replaces Ducane OEM part 20172301.

The stainless steel SEAR GRID is a 2-piece die formed part with domed runners. Each runner traps and collects the heat of the briquettes thus making your grill 30% more effective than other cooking grids. The trapped heat within each runner produces wide sear marks on the meat, thus sealing in the meat’s juices.

The SEAR GRID is made of a high quality stainless steel. Due to the heat of cooking, a discoloration of the SEAR GRID is normal and will not affect the SEAR GRID in any manner.


Part Number: 532S2 (Replaces Ducane 20172301)
Dimension Front-to-Back: 15 1/8”
Dimension Side-to-Side: 20 1/2”
Material: stamped stainless steel
Weight: 4.4

20172201 Ducane Pyromid® briquettes. Bag of 59 high quality pyromid-shaped, flat-top ceramic pieces. These are the same OEM factory briquettes that came with your new Ducane grill

Fits Ducane 800, 1000, 1200, and 2000 series grills, and all models using La-Va-Grate part# 20172501.

Part Number: 20172201
Dimension Front-to-Back: 2”
Dimension Side-to-Side: 2”
Material: ceramic
Weight: 7.65

20172501-R LA-VA-GRATE. Stainless steel rack for supporting ceramic briquettes and lava rock.

Fits 800, 802, 804, 805, 1000, 1005, 1200, 1202, 1204, 1205, 2004 and 2005 series grill heads by Ducane. May fit other models.

• Replaces original part# 20172501
• Also known as part# G4313454 and Kit# B29E
• Commercial grade stainless steel

The function of the 20172501-R Lava Grate is to catch and vaporize the juices which are not absorbed by the briquettes while grilling, therefore eliminating the need for a messy and unsightly grease container.

See part# 20172201 for genuine Ducane Pyromid Briquettes for this Lava Grate.

Part Number: 20172501-R (Replaces Ducane 20172501)
Dimension Front-to-Back: 14 1/8”
Dimension Side-to-Side: 20 1/8”
Material: stainless steel
Weight: 4.0

20172501-KIT LA-VA-GRATE and Pyromid® Briquettes.

Kit includes:
• 20172501-R Stainless steel Lava Grate for supporting ceramic briquettes and lava rock.

  Fits 800, 802, 804, 805, 1000, 1005, 1200, 1202, 1204, 1205, 2004 and 2005 series grill heads by Ducane.

  • Replaces original part# 20172501
  • Also known as part# G4313454
  • Commercial grade stainless steel

• 20172201 Ducane Pyromid® briquettes. Bag of 59 high quality pyromid-shaped, flat-top ceramic pieces. These are the same OEM factory briquettes that came with your new Ducane grill

  Fits Ducane 800, 1000, 1200, and 2000 series grills, and all models using Lava Grate part# 20172501.



  Part Number: 20172501-KIT
  Dimension Front-to-Back: 14 1/8”
  Dimension Side-to-Side: 20 1/8”
  Material: stainless steel
  Weight: 11.65

Heat Plate/ Flame Tamer not known for Ducane model 1204SHLPE. Our parts information for this grill model is incomplete, and we really don't know with certainty which heat plate fits this model. It may be that we have the part but don't show it here due to data or other error.

If you know the original OEM part number, try searching for it in the search box at the top of this page.

You can also browse through all of the heat plates we carry for your brand grill. If we don't have the exact fit for your grill, we may have a suitable replacement part. Measure your existing part so you'll know exactly what size is needed.

If you have this grill model and know the number and dimensions of your original heat plates, click here to send an email to our GrillDr that includes this information. We greatly appreciate your help.

Part Number: HP-DUMMY
Weight: 1.0

Universal two outlet rotary spark generator. Includes knob and hardware.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: UP-6B (Replaces Ducane 20172901)
Weight: 0.3

Igniter electrode assembly to fit Ducane grills. Use on Duc-1 and Duc-2 buners. INcludes collector box, ceramic electrode, and wire.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-9B (Replaces Ducane G4313758)
Weight: 0.3

20” igniter wire with female spade and round connector.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-7B
Weight: 0.02

Universal durable black phenolic lid handle with threaded brass insert. (1/4” x 20 thread). Includes mounting bolt and lockwasher. Made for Ducane but makes a great universal lid handle that can be used on almost any grill.

Part Number: PH-2B (Replaces Ducane G1125350)
Dimensions: 3 1/2
Material: 6.59
Weight: .3

Black knob for rotary igniters

Part Number: 03201 (Replaces Ducane 20173101)
Weight: 0.1

Single LP gas valve.

Part Number: VLV-34 (Replaces Ducane 20175401)
Material: Brass
Weight: 0.30

Brass hood orifice with #72 starter hole and 1/8” x 22 threading for use with valves 37700, 37800, and 38800. Must be drilled to proper drill size.

If you would like us to drill the orifice(s) for you, there is a single $15 fee for this service, which will be added to the order when processed. Please tell us the number of burners in your grill and the total BTUs of your grill (less side burner and rotisserie burner, if any). BTU rating information can usually be found on the grill's CSA certification tag, located somewhere on the grill. Please furnish this, along with any other information you deem relevant, in the Message to CLA box during checkout.

Part Number: 37900
Dimensions: 0 3/4” x 0 1/2”
Material: brass
Weight: 0.1

Cast iron smoker box with six oblong venting holes. Designed to release wood smoke. Make sure this part will fit into your grill before ordering 8 3/8” x 5 1/4” x 1 3/8”.

Part Number: 00150
Dimensions: 5 1/4” x 8 3/8”
Material: cast iron
Weight: 3.90

20” Professional Extra Long Tong.
20” Stainless steel tong with red soft grip rubber inserts. Grip your food on the grill with ease. Manual lock saves on storage space.


Part Number: 40269
Material: stainless steel
Weight: 0.14

Basting brush with angled oak handle. 18” overall length.

Part Number: BB-5
Dimensions: 18
Weight: 0.8

Chrome plated rib/potatoe rack. Spaces up to 6 racks of ribs and 6 potatoes. Fits all grills. 12” x 7 1/4”.


Part Number: RR-2
Material: chrome steel
Weight: 1.0
