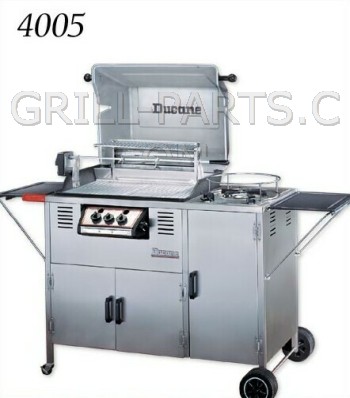

Ducane 4005LPE Grill Parts

U burner support bracket for Ducane model 4005LPE. Replaces OEM# 20175501. Sold indivually. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.

Part Number: CLA-MS0057
Material: stainless steel
Weight: 0.05

C burner support bracket for Ducane model 4005LPE. Replaces OEM# G4162359. Sold indivually. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.

Part Number: CLA-MS0058
Material: stainless steel
Weight: 0.05

Stainless steel left side S burner for Ducane model 4005LPE. Requires DUCHS holdown strap when used with models 1505 and 5005. Use with IG-9B igniter.

Part Number: DUC-1LSS
Dimensions: 14 1/2” x 9 1/4”
Material: 304 Stainless steel
Weight: 4.0

Stainless steel right side S burner for Ducane model 4005LPE. Requires DUCHS holdown strap when used with models 1505 and 5005. Use with IG-9B igniter.

Part Number: DUC-1RSS
Dimensions: 14 1/2” x 9 1/4”
Material: 304 Stainles steel
Weight: 4.0

Stainless steel burner kit for Ducane model 4005LPE. Includes left-hand S burner 124L1, 03758 electrode, wire, and collector box.

Part Number: 13011
Dimensions: 14 3/4” x 9 3/4”
Material: stainless steel
Weight: 1.5

Stainless steel burner kit for Ducane model 4005LPE. Includes right-hand S burner 124R1, 03758 electrode, wire, and collector box.

Part Number: 13021
Dimensions: 14 3/4” x 9 3/4”
Material: stainless steel
Weight: 1.5

Stainless steel Sear Grid set for Ducane model 4005LPE. Replaces Ducane OEM part 20172302.

The stainless steel SEAR GRID is a 2-piece die formed part with domed runners. Each runner traps and collects the heat of the briquettes thus making your grill 30% more effective than other cooking grids. The trapped heat within each runner produces wide sear marks on the meat, thus sealing in the meat’s juices.

The SEAR GRID is made of a high quality stainless steel. Due to the heat of cooking, a discoloration of the SEAR GRID is normal and will not affect the SEAR GRID in any manner.


Part Number: 534S2
Dimension Front-to-Back: 16 1/4”
Dimension Side-to-Side: 24 1/4”
Material: stamped stainless steel
Weight: 4.15

20172503-R LA-VA-GRATE. Stainless steel support rack for supporting ceramic briquettes.

Fits 4005, 5004, and 5005 series grill heads by Ducane. May fit other models.

• Replaces original OEM part# 20172503
• Also known as kit# B29G
• Commercial grade stainless steel

The function of the 20172503-R Lava Grate is to catch and vaporize the juices which are not absorbed by the briquettes while grilling, therefore eliminating the need for a messy and unsightly grease container. For proper operation, the grid must be level and preheated to operating temperature.

For genuine Ducane Pyromid Briquettes for this Lava Grate, see part# 20172202 .

Part Number: 20172503-R (Replaces Ducane 20172503)
Dimension Front-to-Back: 15 3/8”
Dimension Side-to-Side: 24 3/8”
Material: stainless steel
Weight: 5.8

20172202 Ducane Pyromid® briquettes. Bag of 70 high quality pyromid-shaped, flat-top ceramic pieces. These are the same OEM factory briquettes that came with your new Ducane grill

Fits Ducane 1500, 4000 and 5000 series grills, and all models using La-Va-Grate part# 20172502 or 20172503.

Part Number: 20172202
Dimension Front-to-Back: 2”
Dimension Side-to-Side: 2”
Material: ceramic
Weight: 9.75

20172503-KIT LA-VA-GRATE and Pyromid® Briquettes.

Kit includes:
• 20172503-R Stainless steel Lava Grate for supporting ceramic briquettes and lava rock.

  Fits 4000 and 5000 series grill heads by Ducane.

• 20172202 Ducane Pyromid® briquettes. Bag of 70 high quality pyromid-shaped, flat-top ceramic pieces. These are the same OEM factory briquettes that came with your new Ducane grill

Part Number: 20172503-KIT
Dimension Front-to-Back: 15 3/8”
Dimension Side-to-Side: 24 3/8”
Material: stainless steel
Weight: 15.55

Heat Plate/ Flame Tamer not known for Ducane model 4005LPE. Our parts information for this grill model is incomplete, and we really don't know with certainty which heat plate fits this model. It may be that we have the part but don't show it here due to data or other error.

If you know the original OEM part number, try searching for it in the search box at the top of this page.

You can also browse through all of the heat plates we carry for your brand grill. If we don't have the exact fit for your grill, we may have a suitable replacement part. Measure your existing part so you'll know exactly what size is needed.

If you have this grill model and know the number and dimensions of your original heat plates, click here to send an email to our GrillDr that includes this information. We greatly appreciate your help.

Part Number: HP-DUMMY
Weight: 1.0

21” wire for side burner or other applications. One female spade connector, one female round connector.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-T14
Dimensions: 21
Weight: 0.05

Replacement rotisserie electrode with wire, mounting bracket, and ceramic insulator for use with Ducane models with rear rotisserie. Wire connects to spark generator with female round connector. For more information, see our Help Center article: Ignition 101.

Part Number: 01134
Material: ceramic
Weight: 0.1

Universal 3 outlet rotary spark generator. Includes knob.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: UP-8B
Weight: 0.3

20” igniter wire with female spade and round connector.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-7B
Weight: 0.02

Igniter electrode assembly to fit Ducane grills. Use on Duc-1 and Duc-2 buners. INcludes collector box, ceramic electrode, and wire.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-9B
Weight: 0.3

Black knob for rotary igniters

Part Number: 03201
Weight: 0.1

Black faced knob, fits ducane 04 and 05 series grills

Part Number: K-13B
Dimensions: 2
Weight: 0.1

Universal durable black phenolic lid handle with threaded brass insert. (1/4” x 20 thread). Includes mounting bolt and lockwasher. Made for Ducane but makes a great universal lid handle that can be used on almost any grill.

Part Number: PH-2B
Dimensions: 3 1/2
Material: 6.59
Weight: .3

Single LP gas valve.

Part Number: VLV-34
Material: Brass
Weight: 0.30

Brass hood orifice with #72 starter hole and 1/8” x 22 threading for use with valves 37700, 37800, and 38800. Must be drilled to proper drill size.

If you would like us to drill the orifice(s) for you, there is a single $15 fee for this service, which will be added to the order when processed. Please tell us the number of burners in your grill and the total BTUs of your grill (less side burner and rotisserie burner, if any). BTU rating information can usually be found on the grill's CSA certification tag, located somewhere on the grill. Please furnish this, along with any other information you deem relevant, in the Message to CLA box during checkout.

Part Number: 37900
Dimensions: 0 3/4” x 0 1/2”
Material: brass
Weight: 0.1

20” Professional Extra Long Tong.
20” Stainless steel tong with red soft grip rubber inserts. Grip your food on the grill with ease. Manual lock saves on storage space.


Part Number: 40269
Material: stainless steel
Weight: 0.14
