Fiesta EA34555-LP Grill Parts

Fiesta Twin burner EA34555 LP gas BBQ grill with rear rotisserie burner

Highest quality replacement parts for your Fiesta EA34555-LP - Free USA shipping $49 or more* - No Sales Tax*

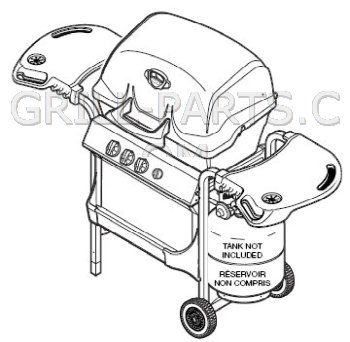

Fiesta EA34555-LP owners manual and diagrams

Click the small images on the right to view Fiesta EA34555-LP exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Fiesta EA34555-LP-4C756444444839-PartsExpS1.gif

Fiesta EA34555-LP-4C756444444839-PartsLstS1.gif

Replacement gas grill parts for Fiesta model: EA34555-LP

This page shows all of the parts we know fit model Fiesta EA34555-LP. We might not show the part you need here but we may still have it, or a functional equivalent. In this case, try the category buttons on the right. For example, if your looking for an ignitor, or other ignition components, and there are none here, click the ignition button to see what we have for Fiesta grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct Fiesta EA34555-LP BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Fiesta model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

EA34555-LP Burners

Click for photos

Stainless steel burner and venturi assembly kit for Fiesta model EA34555-LP. Comes with all necessary gaskets and screws.

Part Number: 19202-79202 (Replaces Fiesta SM202A-12)
Dimensions: 22” x 7 7/8”
Material: stainless steel
Weight: 3.5

Click for photos

Stainless steel H burner for Fiesta model EA34555-LP. Burner consists of two pieces, which are held together by the venturi.

Part Number: 19202
Dimensions: 22” x 7 7/8”
Material: stainless steel
Weight: 2.4

==> All Fiesta Burners.

EA34555-LP Venturis

Click for photos

L-shaped twin venturi. Includes all necessary gaskets and screws/nuts.

Part Number: 79202
Dimensions: 4 1/2” x 2 7/8”
Material: zinc plated steel
Weight: 0.8

Click for photos

Universal Spider Guards. Helps prevent dangerous flashback fires caused by spider webs in venturi tubes.Stainless steel spider guards slip over the air shutter on most venturi tubes to help keep the spiders out. For 3/4” venturi tubes.

Part Number: SG-B
Material: stainless steel
Weight: 0.1

==> All Fiesta Venturis.

EA34555-LP Cooking Grids

Cooking grid not known for Fiesta model EA34555-LP. Our parts information for this grill model is incomplete, and we really don't know with certainty which cooking grid fits this model. It may be that we have the part but don't show it here due to data or other error.

If you know the original OEM part number, try searching for it in the search box at the top of this page.

You can also browse through all of the Fiesta cooking grids we carry. If we don't have the exact fit grid for your grill, we may have a suitable replacement part. Measure your existing part as well as the the grid support area of the grill so you'll know exactly what size grids will fit.

If you have this grill model and know the number and dimensions of your original cooking grids, please share this information with us. Click here to send an email to our GrillDr that includes this information. We greatly appreciate your help.

Part Number: CG-DUMMY
Weight: 1.0

==> All Fiesta Cooking Grids.

EA34555-LP Rock/Briquette Grates

Click for photos

Rock grate for holding lava rock or ceramic briquettes.

Part Number: BG-41
Dimension Front-to-Back: 12”
Dimension Side-to-Side: 19”
Material: carbon steel
Weight: 4.1

==> All Fiesta Rock/Briquette Grates.

EA34555-LP Heat Plates

Click for photos

Stainless steel smart bar replacement for SP55-9 for Fiesta model EA34555-LP.

Note: This is also a replacement for part SP24-9G, which has been discontinued. There is a difference in air hole alignment.

Part Number: CLA-TS0397
Dimension Front-to-Back: 20 3/4”
Dimension Side-to-Side: 10 1/2”
Material: stainless steel
Weight: 2.65

==> All Fiesta Heat Plates.

EA34555-LP Igniter Components

Click for photos

Universal collector box with electrode and wire. Fits most H burners, cast iron and stainless. Mounts to burner using venturi screws. Slotted construction allow universal adjustment of electrode position.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-15B
Weight: 0.3

==> All Fiesta Igniter Components.

EA34555-LP Knobs and Handles

Click for photos

Genuine OEM Fiesta control knob.

Off position D-Value: 6 o'clock
Knob diameter: 2”
Socket diameter: 5/16”
Knob shaft: None (flat)

Part Number: SP7-7
Weight: 0.1

==> All Fiesta Knobs and Handles.

EA34555-LP Heat indicators and Meat Thermometers

Click for photos

LOGO GUAGE FIESTA A/T LID

Part Number: SP23A-30
Weight: 0.5

==> All Fiesta Heat indicators and Meat Thermometers.

EA34555-LP Accessories

Click for photos

Durable 2 5/16” round briquettes

Self-cleaning
Control flare-ups while holding an even heat pattern.
About 53 pieces, covers approximately 275 sq. inches.
Fits all gas grills

Part Number: BQ-5
Weight: 7.2

Click for photos

Natural lava rock processed and screened for uniformity. 7 lb. bag is enough for all full sized grills. Click the photo to find easy steps for installing lava rocks.

Part Number: 45887
Material: pummise
Weight: 7.0

Click for photos

Stainless steel smoker box with cover. For use with all grills. Insert moistened wood chips (not included) for your favorite smoke flavor, 8 3/4” x 3 1/2” x 1 1/2”.

Part Number: SSST
Material: stainless steel
Weight: 1.5

Click for photos

EZ Check Gas level indicator. Accurate from -22° to 104°F. Magnetic back. Works on all sizes of tanks.

Part Number: 00030
Weight: 0.1

Stainless steel straight handle grill brush with replaceable head. Brass bristles and scarper. See part# WB-8RH for replacement grill brush heads. 18 1/2” long.
This part is currently out of stock, but more are already on the way and expected to arrive SPRING 23

Part Number: WB-8
Dimensions: 18 1/2
Material: stainless steel
Weight: 0.8

==> All EA34555-LP Accessories.
