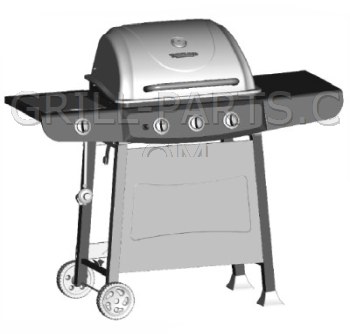

Heartland Outdoors 463722911 Grill Parts

Stainless steel burner for Heartland Outdoors model 463722911.

Part Number: CBP8 (Replaces Heartland Outdoors G312-2600-W1)
Dimensions: 15 3/8
Material: stainless steel
Weight: 1.0

Cooking grid not known for Heartland Outdoors model 463722911. Our parts information for this grill model is incomplete, and we really don't know with certainty which cooking grid fits this model. It may be that we have the part but don't show it here due to data or other error.

If you know the original OEM part number, try searching for it in the search box at the top of this page.

You can also browse through all of the Heartland Outdoors cooking grids we carry. If we don't have the exact fit grid for your grill, we may have a suitable replacement part. Measure your existing part as well as the the grid support area of the grill so you'll know exactly what size grids will fit.

If you have this grill model and know the number and dimensions of your original cooking grids, please share this information with us. Click here to send an email to our GrillDr that includes this information. We greatly appreciate your help.

Part Number: CG-DUMMY
Weight: 1.0

Charbroil Stainless Steel Heat Plate for Heartland Outdoors model 463722911.

Part Number: CBHP8 (Replaces Heartland Outdoors G312-0205-W1)
Dimension Front-to-Back: 15 1/16”
Dimension Side-to-Side: 3 7/8”
Weight: .65

Universal 2 3/4” adaptor wire with a round female end and a male spade end that has a protective cover.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03199C
Weight: 0.05

20” Ignitor adapter wire with female spade connector and male round connector. Used primarily on Ducane models 7100 and 7200 to extend the wire from the 03758 collector box and electrode to the electronic spark generator (igniter).

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03750
Dimensions: 1/16
Weight: 0.05

Electrode with 24.5” wire that has a female spade/flat end. To lengthen the wire use adapter # 03198 and extension wire # 03750.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 04432
Dimensions: 4”
Material: ceramic
Weight: 0.1

Push-Button self-grounding piezo spark generator; requiers 3/4” mounting hole. Primary connector is a round male connector, so connecting wire needs to be female round connector. If needed, see part# 03199C for a short adapter wire that converts flat female spade connectors to female round. Secondary connector is a flat male spade connector used to conduct spark to a secondary electrode, such as a side burner, or used as a ground in some applications. See ground wire part# 03620. For more information, see our article Ignition 101.

Part Number: 03120 (Replaces Heartland Outdoors G206-0301-W1)
Weight: 0.1

Burner mounted electrode for use with 15591 and 15491 burners.

• 39” wire with female spade connector
• Includes adapter wire part 03198 for applications needing male spade connector on electrode.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 04430 (Replaces Heartland Outdoors G311-0005-W1)
Material: ceramic
Weight: 0.1

Universal extention wire, male spade end & female round end.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-46B
Dimensions: 2 1/2
Weight: 0.10

46” Wire with female spade connectors and square plastic connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-30B
Dimensions: 46
Weight: 0.1

16” Universal Ignitor Wire

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-48B
Dimensions: 16
Weight: 0.05

Snap In Piezo Ignitor. Fits Weber Genesis Silver A,B,C and Newer Spirit E310 & E320.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: UP-9B
Weight: 0.2

Round heat indicator.

• Single probe
• 1 13/16” diameter
• Requires 3/8” mounting hole

Part Number: 00018 (Replaces Heartland Outdoors G431-0020-W1)
Dimensions: 1 13/16” x 1 13/16”
Weight: 0.1

Stainless steel smoker box with cover. For use with all grills. Insert moistened wood chips (not included) for your favorite smoke flavor, 8 3/4” x 3 1/2” x 1 1/2”.


Part Number: SSST
Material: stainless steel
Weight: 1.5

12” long wood handle brass bristle grid brush with scraper and leather hang strap.

Part Number: WB-1
Dimensions: 12
Weight: 0.4
