Huntington Rebel 6130-67 Grill Parts

Huntington 6130-67

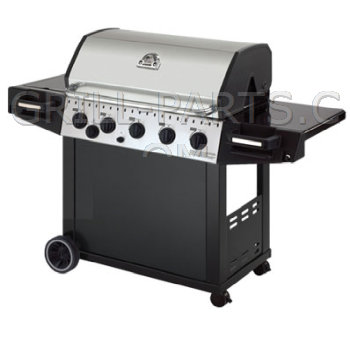

Huntington Rebel 613067 5-Burner natural gas grill

Highest quality replacement parts for your Huntington Rebel 6130-67 - Free USA shipping $49 or more* - No Sales Tax*

Huntington 6130-67 owners manual and diagrams

Diagrams & owners manual not available for grill model# 6130-67. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Replacement grill parts for Huntington Rebel (6130-67)

This page shows all of the parts we know fit model Huntington 6130-67. We might not show the part you need here but we may still have it, or a functional equivalent. In this case, try the category buttons on the right. For example, if your looking for an ignitor, or other ignition components, and there are none here, click the ignition button to see what we have for Huntington grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct Huntington 6130-67 BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Huntington model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

6130-67 Burners

52924-144

Click for photos

Genuine OEM Huntington stainless steel burner replaces original part number 52904-144 (52904-144LP and 52904-144NG) for Huntington model 6130-67. For LP grills, adjust air shutter to about 1/3 opened and for NG adjust about 2/3 open or more as needed.

Part Number: 52924-144
Dimensions: 15 3/4
Material: stainless steel
Weight: 0.8

23000-251

Click for photos

COVER SIDE BURNER BLACK for Huntington model 6130-67.

Part Number: 23000-251
Dimensions: 14 1/4” x 11 3/16”
Weight: 1.80

SIDE BURNER GRID BLK 330/440/550 for Huntington model 6130-67. Grid for side burner. 9” diameter round and has two support prongs. Porcelain coated, glossy finish.

Note: Some owners manuals incorrectly list this part as 53139-98.

Part Number: 53140-981
Weight: .8

==> All Huntington Burners.

6130-67 Cooking Grids

COOKING GRID CAST IRON 330/440/550 (Sold individually; number required varies, check your grill for Huntington model 6130-67.)

Part Number: 52002-181
Dimension Front-to-Back: 17 3/8”
Dimension Side-to-Side: 12 3/4”
Material: cast iron
Weight: 6.75

52007-181

Click for photos

Genuine OEM Huntington cooking grid for Huntington model 6130-67. Porcelain treated, matte finish. (Sold individually; number required varies, check your grill.)

Part Number: 52007-181
Dimension Front-to-Back: 17 3/8”
Dimension Side-to-Side: 6 5/16”
Material: cast iron
Weight: 3.10

==> All Huntington Cooking Grids.

6130-67 Heat Plates

52209-404

Click for photos

Genuine OEM Huntington stainless steel Flav-R-Wave for Huntington model 6130-67.

Part Number: 52209-404
Dimension Front-to-Back: 15 7/8”
Dimension Side-to-Side: 6”
Material: stainless steel
Weight: 1.14

==> All Huntington Heat Plates.

6130-67 Igniter Components

52216-014

Click for photos

COLLECTOR BOX 550 UPPER 430SS

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 52216-014
Dimensions: 28
Weight: 0.2

10342-247

Click for photos

Genuine OEM Huntington electronic push-button 4-spade igniter.

Uses AAA battery (not included)
Requires 3/4” mounting hole

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-247
Weight: 0.5

10342-E13

Click for photos

Genuine OEM Huntington electrode with 14 3/8” connector wire that has a spade female end; use with AA or AAA battery powered ignitors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-E13
Weight: 0.05

10342-T18

Click for photos

Genuine OEM Huntington 32” wire for side burner and other applications. Both ends are female spade connector.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-T18
Dimensions: 32
Weight: 0.05

==> All Huntington Igniter Components.

6130-67 Grease Trays

27249-904

Click for photos

Small grease shield used in-between each burner. Four of these replaces one grease shield # 27245-904. Four of these also replaces one grease shield # 22245-901and five of these replaces one grease shield # 27246-904. Refer to your model number and owner's manual. SOLD INDIVIDUALLY

Part Number: 27249-904
Dimensions: 6 1/2” x 6”
Material: stainless steel
Weight: .35

22009-901

Click for photos

Genuine OEM Huntington Porcelain Grease Pan.

Part Number: 22009-901
Dimensions: 6 1/2” x 5 1/8”
Weight: .45

==> All Huntington Grease Trays.

6130-67 Knobs and Handles

10472-K431

Click for photos

CONTROL KNOB RESIN LRG BLACK -- W/SS BA STRIP

Part Number: 10472-K431
Weight: 0.1

==> All Huntington Knobs and Handles.

6130-67 Regulators and Hoses

10111-K45

Click for photos

Genuine OEM Huntington NG gas hose.

Part Number: 10111-K45
Weight: 2.1

==> All Huntington Regulators and Hoses.

6130-67 Wheels and Castors

10892-7G

Click for photos

Genuine OEM Huntington 7” cart wheel with 3/8” axel hole. Mini hub cap is # 00400251, sold separately.

Part Number: 10892-7G
Weight: .45

51339-401

Click for photos

CASTER BRACKET 440 BLK RESIN

Part Number: 51339-401
Weight: 0.1

10892-23

Click for photos

Rubber castor, 3” w/plate, locking.

Part Number: 10892-23
Weight: 0.66

==> All Huntington Wheels and Castors.

6130-67 Heat indicators and Meat Thermometers

10571-5

Click for photos

Genuine OEM Huntington Heat indicator. About 1 7/8” wide and 1 7/16” high. The threaded stem is about 5/16” diameter and 1 1/8” long.

Part Number: 10571-5
Dimensions: 1 7/8” x 1 7/16”
Weight: 0.1

==> All Huntington Heat indicators and Meat Thermometers.

6130-67 Miscellaneous Repair Parts

S21233

Click for photos

Hinge pin clip.

Part Number: S21233
Weight: 0.01

==> All Huntington Miscellaneous Repair Parts.

6130-67 Hardware

SCREW-PHCP 6-32X1/4 TY-F JS500

Part Number: Y-12835
Weight: 1.0

Y-11231

Click for photos

LID BUMPER

Part Number: Y-11231
Weight: 0.01

==> All Huntington Hardware.

6130-67 Accessories

00150

Click for photos

Cast iron smoker box with six oblong venting holes. Designed to release wood smoke. Make sure this part will fit into your grill before ordering 8 3/8” x 5 1/4” x 1 3/8”.

Part Number: 00150
Dimensions: 5 1/4” x 8 3/8”
Material: cast iron
Weight: 3.90

RR-2

Click for photos

Chrome plated rib/potatoe rack. Spaces up to 6 racks of ribs and 6 potatoes. Fits all grills. 12” x 7 1/4”.

Part Number: RR-2
Material: chrome steel
Weight: 1.0

WB-8RH

Click for photos

Replacement brass bristle brush head for WB-8 brush. Screws included.

Part Number: WB-8RH
Dimensions: 18 1/2
Material: stainless steel
Weight: 0.2

==> All 6130-67 Accessories.
