Kenmore 119.16144210 Grill Parts

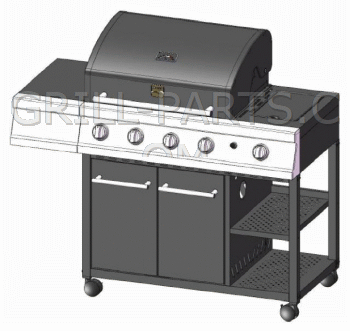

Kenmore 4-Burner LP gas grill with side burner

Highest quality replacement parts for your Kenmore 119.16144210 - Free USA shipping $49 or more* - No Sales Tax*

Kenmore 119.16144210 owners manual and diagrams

Click the small images on the right to view Kenmore 119.16144210 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Kenmore 119.16144210-30083866489844-PartsExpS1.gif

Kenmore 119.16144210-30083866489844-PartsLstS1.gif

Kenmore 119.16144210-30083866489844-PartsLstS2.gif

Replacement grill parts for the Kenmore model: 119.16144210

All of the parts we have for Kenmore 119.16144210 are shown on this page. If the part you need is not shown below, try clicking the appropriate category button on the right side of the page. For example, if your looking for a Flame Tamer/Heat Plate and there are none here, click the Heat Plate button to see all of the Heat Plates we have for Kenmore grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Kenmore 119.16144210 BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Kenmore model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

119.16144210 Burners

Click for photos

Stainless steel burner for Kenmore model 119.16144210.

Part Number: 14421 (Replaces Kenmore MCDSBRE000)
Dimensions: 15 3/4” x 1”
Material: stainless steel
Weight: 0.6

==> All Kenmore Burners.

119.16144210 Cooking Grids

Click for photos

Stainless steel cooking grids for Kenmore model 119.16144210. Sold as a set of three (3).

Part Number: 5S443 (Replaces Kenmore MCDSBRC000)
Dimension Front-to-Back: 18 5/8”
Dimension Side-to-Side: 25 11/16”
Material: stainless steel tubes
Weight: 7.7

==> All Kenmore Cooking Grids.

119.16144210 Heat Plates

Click for photos

Porcelain steel Heat Diffuser for Kenmore model 119.16144210. Sold individually.

Part Number: 91521 (Replaces Kenmore MCDSBRB025)
Dimension Front-to-Back: 16 1/4”
Dimension Side-to-Side: 4 1/8”
Material: porcelain steel
Weight: 1.0

==> All Kenmore Heat Plates.

119.16144210 Igniter Components

Click for photos

46” Wire with female spade connectors and square plastic connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-30B
Dimensions: 46
Weight: 0.1

Click for photos

Battery powered push button igniter.

Has six (6) spade type male connectors.
Uses 1 AA battery (not supplied)
Requires 7/8” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IGEIB6-B (Replaces Kenmore MCDSFID001)
Weight: 0.3

Click for photos

Electrode to Fit Many Import Grills Including some Kenmore, BBQ Pro, Sam's Club, K-Mart, Etc….

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-31B (Replaces Kenmore SE9009)
Weight: .05

Click for photos

20” igniter wire with two (2) female spade connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-18B
Weight: 0.03

==> All Kenmore Igniter Components.

119.16144210 Knobs and Handles

Click for photos

Control knob
* Fits many Home Depot/Charmglow models
* Unique two tone design
* May require a 5/64” Allen wrench to remove the old knob and to install the new knob.

Off position D-Value: 12:00 o'clock
Knob diameter: 2 5/16”
Socket diameter: 5 /16”
Knob shaft: none (flat)

Part Number: K-14B (Replaces Kenmore PLABS0090-001)
Dimensions: 2 1/4
Weight: 0.1

==> All Kenmore Knobs and Handles.

119.16144210 Heat indicators and Meat Thermometers

Click for photos

Heat indicator with a single probe and requires a 5/16” mounting hole. Note, the back side DOES NOT have an alignment pin.

Part Number: 00021 (Replaces Kenmore MCDKCVW000)
Dimensions: 3 5/8” x 1 3/4”
Weight: 0.2

==> All Kenmore Heat indicators and Meat Thermometers.

119.16144210 Accessories

Click for photos

Stainless steel smoker box with cover. For use with all grills. Insert moistened wood chips (not included) for your favorite smoke flavor, 8 3/4” x 3 1/2” x 1 1/2”.

Part Number: SSST
Material: stainless steel
Weight: 1.5

Click for photos

Stainless steel flipper. The ultimate spatula tool, specially curved for perfect flips every time. 18” overall.

Part Number: SF-1
Dimensions: 18
Material: stainless steel
Weight: 0.4

Scrub brushes. Plastic grill scrubber. Cleans all types of cooking grids. Plastic grip handle.

Part Number: WB-7
Dimensions: 6” x 3 1/2”
Weight: 0.2

==> All 119.16144210 Accessories.
