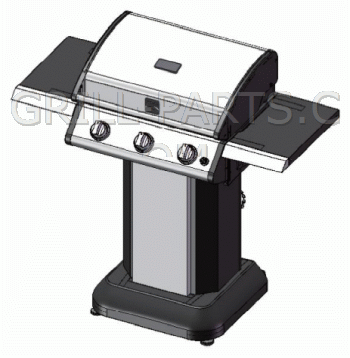

Kenmore 119.16145210 Grill Parts

stainless steel straight pipe burner for Kenmore model 119.16145210.

Part Number: 11621
Dimensions: 12 1/4” x 1”
Material: stainless steel
Weight: 0.7

Cooking grid not known for Kenmore model 119.16145210. Our parts information for this grill model is incomplete, and we really don't know with certainty which cooking grid fits this model. It may be that we have the part but don't show it here due to data or other error.

If you know the original OEM part number, try searching for it in the search box at the top of this page.

You can also browse through all of the Kenmore cooking grids we carry. If we don't have the exact fit grid for your grill, we may have a suitable replacement part. Measure your existing part as well as the the grid support area of the grill so you'll know exactly what size grids will fit.

If you have this grill model and know the number and dimensions of your original cooking grids, please share this information with us. Click here to send an email to our GrillDr that includes this information. We greatly appreciate your help.

Part Number: CG-DUMMY
Weight: 1.0

SET OF THREE/3 PACK Stainless steel heat diffuser for Kenmore model 119.16145210.

Replaces OEM part# S1007-012E-015
• Stainless steel
• Made in USA

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.

Part Number: CLA-TS0213-X3
Dimension Front-to-Back: 11 13/16”
Dimension Side-to-Side: 4 1/4”
Material: stainless steel
Weight: 1.8

Stainless steel heat diffuser for Kenmore model 119.16145210.

Replaces OEM part# S1007-012E-015
• Stainless steel
• Made in USA

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.

Part Number: CLA-TS0213
Dimension Front-to-Back: 11 13/16”
Dimension Side-to-Side: 4 1/4”
Material: stainless steel
Weight: 0.60

Heat Plate for Kenmore Grills for Kenmore model 119.16145210.

Part Number: KENHP6
Dimension Front-to-Back: 11 7/8”
Dimension Side-to-Side: 4 1/8”
Material: stainless steel
Weight: 1.0

Push-button electronic igniter with three (3) spade connectors. Comes with sliver or black cap per availability. Needs (1) AA battery (not included); requires 7/8” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: TS-IG3007
Weight: 0.2

Universal three-outlet battery powered push button ignitor.

• 1.5 volt
• Has three (3) terminals (male spade connector)
• Uses a single AA battery (not included)
• 03610 and 03620 wires are commonly used with this igniter (not included)
• Requires 7/8” mounting hole

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03333
Dimensions: 2 9/16” x 2”
Weight: 0.5

46” Wire with female spade connectors and square plastic connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-30B
Dimensions: 46
Weight: 0.1

Electrode to Fit Many Import Grills Including some Kenmore, BBQ Pro, Sam's Club, K-Mart, Etc….

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-31B
Weight: .05

Control knob
* Fits many Home Depot/Charmglow models
* Unique two tone design
* May require a 5/64” Allen wrench to remove the old knob and to install the new knob.

• Off position D-Value: 12:00 o'clock
• Knob diameter: 2 5/16”
• Socket diameter: 5 /16”
• Knob shaft: none (flat)

Part Number: K-14B
Dimensions: 2 1/4
Weight: 0.1

Heat indicator with a single probe and requires a 5/16” mounting hole. Note, the back side DOES NOT have an alignment pin.

Part Number: 00021
Dimensions: 3 5/8” x 1 3/4”
Weight: 0.2

Cast iron smoker box with six oblong venting holes. Designed to release wood smoke. Make sure this part will fit into your grill before ordering 8 3/8” x 5 1/4” x 1 3/8”.

Part Number: 00150
Dimensions: 5 1/4” x 8 3/8”
Material: cast iron
Weight: 3.90

Chrome plated rib/potatoe rack. Spaces up to 6 racks of ribs and 6 potatoes. Fits all grills. 12” x 7 1/4”.


Part Number: RR-2
Material: chrome steel
Weight: 1.0

Venturi Tube 12” Brush. Recommended by all grill manufacturers. Specially designed flexible brush to clean venturis of spider webs and other obstructions that can cause flashback fires. Stainless steel.

Part Number: VTC-B
Material: stainless steel
Weight: 0.3
