Kenmore 119.16433010 Grill Parts

Kenmore logo

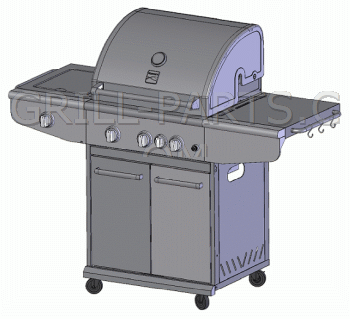

Kenmore 119.16433010



Highest quality replacement parts for your Kenmore 119.16433010 - Free USA shipping $49 or more* - No Sales Tax*



Kenmore 119.16433010 owners manual and diagrams
Click the small images on the right to view Kenmore 119.16433010 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!



Kenmore 119.16433010-30083655989844-PartsExpS1.gif  Kenmore 119.16433010-30083655989844-PartsLstS1.gif  Kenmore 119.16433010-30083655989844-PartsLstS2.gif

Replacement BBQ grill parts for Kenmore model: 119.16433010
This page shows all of the parts we know fit model Kenmore 119.16433010. If the part you need is not shown below, try clicking the appropriate category button on the right side of the page. For example, if your looking for a burner and there are none here, click the burner button to see all the burners we have for Kenmore grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Kenmore 119.16433010 BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Kenmore model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



119.16433010 Burners

SD0024-A / SCTB1
Click for photos
Stainless steel burner for Kenmore model 119.16433010.

Part Number: SCTB1 (Replaces Kenmore SD0024-A)
Dimensions: 15 3/8
Material: stainless steel
Weight: 0.43

$39.38

Qty


==> All Kenmore Burners.






119.16433010 Cooking Grids

CI0018-012 / CG-70P-CI-X2
Click for photos
Cast iron cooking grids for Kenmore model 119.16433010. SET OF TWO (2) panels.
  • Porcelain treated, matte finish
  • Each panel measures 18 3/4” x 11 1/2”
  • Overall dimensions: 18 3/4” x 23”


Part Number: CG-70P-CI-X2 (Replaces Kenmore CI0018-012)
Dimension Front-to-Back: 18 3/4”
Dimension Side-to-Side: 23”
Material: cast iron
Weight: 16.4

$112.80

Qty


63012-UNI-X2
Click for photos

Premium universal cooking grids for Kenmore model 119.16433010. Set of two (2) grids. Porcelain treated cast iron. Matte finish.

Each panel measures:
  • Front-to-Back: 18 3/4”
  • Side-to-Side: 11 1/2”
Total Side-to-Side: 23”

Part Number: 63012-UNI-X2
Dimension Front-to-Back: 18 3/4”
Dimension Side-to-Side: 23”
Material: cast iron
Weight: 15.7

$112.80

Qty


CG-70P-CI
Click for photos
Cast iron cooking grid for Kenmore model 119.16433010. Porcelain treated, matte finish. Sold individually, number required varies by grill model.

Part Number: CG-70P-CI
Dimension Front-to-Back: 18 3/4”
Dimension Side-to-Side: 11 1/2”
Material: cast iron
Weight: 8.2

$64.00

Qty


==> All Kenmore Cooking Grids.






119.16433010 Heat Plates

S1007-012E-016 / SCHP3
Click for photos
Stainless steel heat plate for Kenmore model 119.16433010.

Part Number: SCHP3 (Replaces Kenmore S1007-012E-016)
Dimension Front-to-Back: 16 1/8”
Dimension Side-to-Side: 4 5/8”
Material: stainless steel
Weight: 1.0

$42.48

Qty


91521
Click for photos
Porcelain steel Heat Diffuser for Kenmore model 119.16433010. Sold individually.

Part Number: 91521
Dimension Front-to-Back: 16 1/4”
Dimension Side-to-Side: 4 1/8”
Material: porcelain steel
Weight: 1.0

$24.59

Qty


==> All Kenmore Heat Plates.






119.16433010 Igniter Components

SE9009 / IG-31B
Click for photos
Electrode to Fit Many Import Grills Including some Kenmore, BBQ Pro, Sam's Club, K-Mart, Etc….

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-31B (Replaces Kenmore SE9009)
Weight: .05

$7.10

Qty


ASMB0085-04 / IG-18B
Click for photos
20” igniter wire with two (2) female spade connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-18B (Replaces Kenmore ASMB0085-04)
Weight: 0.03

$4.93

Qty


SE0131B / IGEIB4-B
Click for photos
Battery powered push button igniter.
  • Has four (4) spade type male connectors.
  • Uses 1 AAA battery (not supplied)
  • Requires 3/4” or 13/16” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IGEIB4-B (Replaces Kenmore SE0131B)
Weight: 0.3

$34.08

Qty


SE0078 / IGEIB6-B
Click for photos
Battery powered push button igniter.
  • Has six (6) spade type male connectors.
  • Uses 1 AA battery (not supplied)
  • Requires 7/8” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IGEIB6-B (Replaces Kenmore SE0078)
Weight: 0.3

$31.52

Qty


TS-IG4010
Click for photos
Push-button electronic igniter with four (4) spade connectors. Black cap. Uses one AAA battery (not included). Requires a 3/4” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: TS-IG4010
Weight: 0.2

$18.48

Qty


03380
Click for photos
Universal battery powered push button ignitor.
  • 1.5 volt
  • Has five (5) terminals (male spade connector)
  • Uses a single AA battery (not included))
  • 03610 and 03620 wires are commonly used with this igniter (not included)
  • Requires 7/8” mounting hole
  • Overall dimensions: 2” x 3 3/8” x 3”
  • Some original igniters had an integrated ground wire. Use wire part# 03620 for this purpose.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 03380
Dimensions: 3 5/16” x 2”
Weight: 0.7

$39.86

Qty


IG-30B
Click for photos
46” Wire with female spade connectors and square plastic connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-30B
Dimensions: 46
Weight: 0.1

$7.10

Qty


IG-48B
Click for photos
16” Universal Ignitor Wire

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-48B
Dimensions: 16
Weight: 0.05

$6.00

Qty


==> All Kenmore Igniter Components.






119.16433010 Knobs and Handles

PLABS0090-001 / K-14B
Click for photos
Control knob
* Fits many Home Depot/Charmglow models
* Unique two tone design
* May require a 5/64” Allen wrench to remove the old knob and to install the new knob.
  • Off position D-Value: 12:00 o'clock
  • Knob diameter: 2 5/16”
  • Socket diameter: 5 /16”
  • Knob shaft: none (flat)


Part Number: K-14B (Replaces Kenmore PLABS0090-001)
Dimensions: 2 1/4
Weight: 0.1

$13.57

Qty


==> All Kenmore Knobs and Handles.






119.16433010 Regulators and Hoses

SE0148 / HR-5B
Click for photos
22” LP hoses (2) and new type 1 regulator. 3/8” female flare fittings. For use on grills with side burners. Adequate to 90,000 BTU.

Part Number: HR-5B (Replaces Kenmore SE0148)
Dimensions: 22
Weight: 2.0

$50.85

Qty


==> All Kenmore Regulators and Hoses.






119.16433010 Accessories

SF-1
Click for photos
Stainless steel flipper. The ultimate spatula tool, specially curved for perfect flips every time. 18” overall.

Part Number: SF-1
Dimensions: 18
Material: stainless steel
Weight: 0.4

$15.90

Qty


00030
Click for photos
EZ Check Gas level indicator. Accurate from -22° to 104°F. Magnetic back. Works on all sizes of tanks.

Part Number: 00030
Weight: 0.1

$7.60

Qty


WB-7
Scrub brushes. Plastic grill scrubber. Cleans all types of cooking grids. Plastic grip handle.

Part Number: WB-7
Dimensions: 6” x 3 1/2”
Weight: 0.2

$5.96

Qty


==> All 119.16433010 Accessories.
