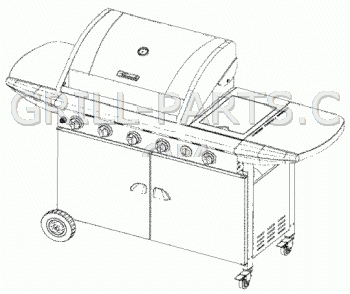

Kenmore 122.16119 Grill Parts

Highest quality replacement parts for your Kenmore 122.16119 - Free USA shipping $49 or more* - No Sales Tax*

Kenmore 122.16119 owners manual and diagrams

Click the small images on the right to view Kenmore 122.16119 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Kenmore 122.16119-384448388030-PartsExpS1.gif

Kenmore 122.16119-384448388030-PartsLstS1.gif

Replacement BBQ grill parts for Kenmore model: 122.16119

This page shows all of the parts we know fit model Kenmore 122.16119. We might not show the part you need here but we may still have it, or a functional equivalent. In this case, try the category buttons on the right. For example, if your looking for an ignitor, or other ignition components, and there are none here, click the ignition button to see what we have for Kenmore grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct Kenmore 122.16119 BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Kenmore model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

122.16119 Burners

Click for photos

Stainless steel burner for Kenmore model 122.16119.

Part Number: CBP6 (Replaces Kenmore 10000250A0)
Dimensions: 14 3/8” x 1”
Material: stainless steel
Weight: 1.0

==> All Kenmore Burners.

122.16119 Cooking Grids

Click for photos

Cast iron cooking grids for Kenmore model 122.16119. Porcelain treated, flat matte finish. Sold as a set of two (2).

Part Number: 61192 (Replaces Kenmore 13000123A0)
Dimension Front-to-Back: 17”
Dimension Side-to-Side: 26 1/2”
Material: matte cast iron
Weight: 12.10

==> All Kenmore Cooking Grids.

122.16119 Heat Plates

Click for photos

Stainless steel Flame Tamer for Kenmore model 122.16119.

Part Number: NGKHP1 (Replaces Kenmore 04003413A0)
Dimension Front-to-Back: 15 1/8”
Dimension Side-to-Side: 4 3/16”
Material: stainless steel
Weight: 1.0

==> All Kenmore Heat Plates.

122.16119 Igniter Components

Click for photos

Burner mounted electrode for use with 15591 and 15491 burners.

39” wire with female spade connector
Includes adapter wire part 03198 for applications needing male spade connector on electrode.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 04430 (Replaces Kenmore 10000175A0)
Material: ceramic
Weight: 0.1

Click for photos

Burner-mounted ceramic electrode, wire, and mounting bracket.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-19B
Weight: 0.1

==> All Kenmore Igniter Components.

122.16119 Accessories

Click for photos

Cast iron smoker box with six oblong venting holes. Designed to release wood smoke. Make sure this part will fit into your grill before ordering 8 3/8” x 5 1/4” x 1 3/8”.

Part Number: 00150
Dimensions: 5 1/4” x 8 3/8”
Material: cast iron
Weight: 3.90

Click for photos

Fish Spatula. Stainless steel fish spatula with genuine rosewood handle. 18 1/2”. 10” spatula width.

Part Number: FS-1
Dimensions: 18 1/2
Material: stainless steel
Weight: 1.0

Click for photos

Chrome plated rib/potatoe rack. Spaces up to 6 racks of ribs and 6 potatoes. Fits all grills. 12” x 7 1/4”.

Part Number: RR-2
Material: chrome steel
Weight: 1.0

18” long wood handle brass bristle grid brush with scraper and leather hang strap.

Part Number: WB-3
Dimensions: 18
Weight: 0.59

==> All 122.16119 Accessories.
