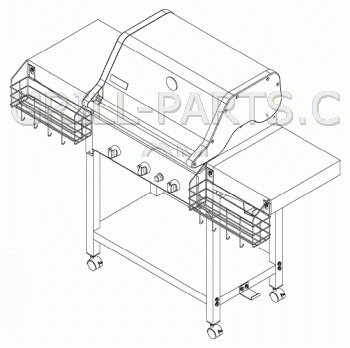

Kenmore 141.15221 Grill Parts

Cast iron burner for Kenmore model 141.15221. Fits Sears/Kenmore premium grills with oval style burners. (Requires 3 to 6 per grill).


Part Number: CIKO (Replaces Kenmore P02001008C)
Dimensions: 12 7/8” x 3 3/8”
Material: cast iron
Weight: 4.2

Commercial 304 grade stainless steel cooking grid with 1/4” diameter rods for Kenmore model 141.15221. Sold individually. Made in USA.

Part Number: CG-53SS (Replaces Kenmore P01602022E)
Dimension Front-to-Back: 14 3/4”
Dimension Side-to-Side: 21 1/2”
Material: Stainless steel
Weight: 5

Premium quality heavy duty stainless steel cooking grid for Kenmore model 141.15221. Our USA-made premium stainless grids are simply the best obtainable. We have them manufactured here in the USA to our specifications and standards, which are high. Of course, they're not available anywhere else.

Unlike the standard issue stainless grids generally found today, which are typically low grade stainless and sometimes hollow, or coated carbon steel, our premium grids are made from solid high quality stainless steel rods. If you're looking for the best, you've found it. Just look at the weight of one of these grids, almost 6 pounds of solid stainless each.

• 304 commercial grade stainless steel
• Large diameter 5/16” solid stainless rods
• Dimensions: 15” x 11 1/8”
• Made in USA.
• Sold individually.

Part Number: CLA-GS0006
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 11 1/8”
Material: stainless steel
Weight: 5.8

Heavy duty 304 grade stainless steel Heat Distribution Plate/Flame Tamer for Kenmore model 141.15221. Sold individually, number required varies. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.

Part Number: CLA-TS0051 (Replaces Kenmore P1743A)
Dimension Front-to-Back: 13 11/16”
Dimension Side-to-Side: 11 1/4”
Material: stainless steel
Weight: 2.75

Collector box and electrode assembly. fits many kenmore models usinf rail style cast iron burners (Command Flame and Command Flame II systems). The collector box is 4”.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-16B (Replaces Kenmore P02608041C)
Dimensions: 4
Weight: 0.2

Battery powered push button igniter.

• Has two (2) spade type male connectors.
• Uses 1 AAA battery (not supplied)
• Requires 3/4” or 13/16” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IGEIB2-B (Replaces Kenmore P02502252C)
Weight: 0.3

Push-button electronic igniter with two (2) spade connectors. Black cap. 1 AAA battery (not included).

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: TS-IG2006
Weight: 0.2

46” Wire with female spade connectors and square plastic connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-30B
Dimensions: 46
Weight: 0.1

16” Universal Ignitor Wire

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-48B
Dimensions: 16
Weight: 0.05

Black control knob to fit Kenmore models.

Part Number: 03430 (Replaces Kenmore P03412331C)
Dimensions: 2 3/16” x 2 3/16”
Material: plastic
Weight: 0.2

Clamp-on brass gas valve with straight outlet. Includes orifice.

• D-Value: 12 o'clock
• Stem diameter: 6mm
• Stem length: 1 3/4”

Includes orifice with #72 starter hole. Must be drilled to proper drill size.

Part Number: 3700C (Replaces Kenmore Y0060093)
Dimensions: 4 15/16” x 2 1/8”
Material: brass
Weight: 0.5

Neoprene valve gasket for clamp-on gas control valves. 19mm.

Part Number: 00019
Dimensions: 0 1/2” x 0 1/4”
Material: neoprene
Weight: 0.01

Brass orifice. 6mm x 3/4” cone shaped orifice with #64 drill size starter hole. For Electec and other clamp-on valves. Must be drilled to proper drill size.

If you would like us to drill the orifice(s) for you, there is a single $15 fee for this service, which will be added to the order when processed. Please tell us the number of burners in your grill and the total BTUs of your grill (less side burner and rotisserie burner, if any). BTU rating information can usually be found on the grill's CSA certification tag, located somewhere on the grill. Please furnish this, along with any other information you deem relevant, in the Message to CLA box during checkout.

Part Number: 31400
Dimensions: 0 3/4” x 0 5/16”
Material: brass
Weight: 0.01

Wundersmoke Maple Chips. These unique maple wood smoking chips add distinctive maple wood flavoring to your food. For use will all grills. One 1lb bag. Comes with reusable puck.

Part Number: BP-7
Weight: 1.0

EZ Check Gas level indicator. Accurate from -22° to 104°F. Magnetic back. Works on all sizes of tanks.

Part Number: 00030
Weight: 0.1

Stainless steel chicken roaster. Commonly called Beer Can roasters.

• The best way to roast poultry on the grill
• For use in barbecues and ovens
• Dishwasher safe
• Includes rack, rack support, and basting brush

Part Number: 41333
Material: stainless steel
Weight: 0.10

Stainless steel straight handle grill brush with replaceable head. Brass bristles and scarper. See part# WB-8RH for replacement grill brush heads. 18 1/2” long.

Part Number: WB-8
Dimensions: 18 1/2
Material: stainless steel
Weight: 0.8
