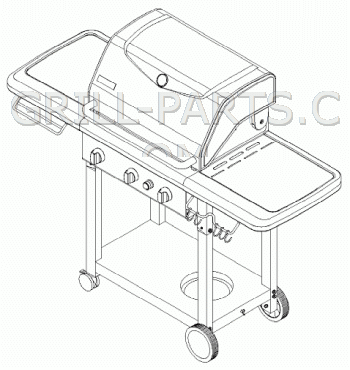

Kenmore 141.16221 Grill Parts

Cast iron burner for Kenmore model 141.16221. Fits Sears/Kenmore premium grills with oval style burners. (Requires 3 to 6 per grill).


Part Number: CIKO (Replaces Kenmore P02001008C)
Dimensions: 12 7/8” x 3 3/8”
Material: cast iron
Weight: 4.2

Commercial 304 grade stainless steel cooking grid with 1/4” diameter rods for Kenmore model 141.16221. Sold individually. Made in USA.

Part Number: CG-53SS (Replaces Kenmore P01602001E)
Dimension Front-to-Back: 14 3/4”
Dimension Side-to-Side: 21 1/2”
Material: Stainless steel
Weight: 5

Premium quality heavy duty stainless steel cooking grid for Kenmore model 141.16221. Our USA-made premium stainless grids are simply the best obtainable. We have them manufactured here in the USA to our specifications and standards, which are high. Of course, they're not available anywhere else.

Unlike the standard issue stainless grids generally found today, which are typically low grade stainless and sometimes hollow, or coated carbon steel, our premium grids are made from solid high quality stainless steel rods. If you're looking for the best, you've found it. Just look at the weight of one of these grids, almost 6 pounds of solid stainless each.

• 304 commercial grade stainless steel
• Large diameter 5/16” solid stainless rods
• Dimensions: 15” x 11 1/8”
• Made in USA.
• Sold individually.

Part Number: CLA-GS0006
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 11 1/8”
Material: stainless steel
Weight: 5.8

Rock grate for holding lava rock or ceramic briquettes.

Part Number: BG-28
Dimension Front-to-Back: 13 5/8”
Dimension Side-to-Side: 22 1/4”
Material: carbon steel
Weight: 4.5

Porcelain steel Flame Tamer for Kenmore model 141.16221. Sold individually.


Part Number: 90171 (Replaces Kenmore P01705002E)
Dimension Front-to-Back: 13 3/4”
Dimension Side-to-Side: 7 3/8”
Material: porcelain steel
Weight: 1.10

Stainless steel heat plate/Flame Tamer for Kenmore model 141.16221. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.


Part Number: CLA-TS0129
Dimension Front-to-Back: 13 3/4”
Dimension Side-to-Side: 7 3/8”
Material: stainless steel
Weight: 1.8

Battery powered push button igniter.

• Has two (2) spade type male connectors.
• Uses 1 AAA battery (not supplied)
• Requires 3/4” or 13/16” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IGEIB2-B (Replaces Kenmore P02502012C)
Weight: 0.3

Push-button electronic igniter with two (2) spade connectors. Black cap. 1 AAA battery (not included).

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: TS-IG2006
Weight: 0.2

46” Wire with female spade connectors and square plastic connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-30B
Dimensions: 46
Weight: 0.1

16” Universal Ignitor Wire

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-48B
Dimensions: 16
Weight: 0.05

Black control knob to fit Kenmore models.

Part Number: 03430 (Replaces Kenmore P03412331C)
Dimensions: 2 3/16” x 2 3/16”
Material: plastic
Weight: 0.2

Straight thru L.P regulator with 28” hose. Adequate to 90,000 BTU.

Part Number: HR-6B (Replaces Kenmore P03601002A)
Dimensions: 28
Weight: 1.50

Clamp-on brass gas valve with straight outlet. Includes orifice.

• D-Value: 12 o'clock
• Stem diameter: 6mm
• Stem length: 1 3/4”

Includes orifice with #72 starter hole. Must be drilled to proper drill size.

Part Number: 3700C (Replaces Kenmore Y0060075)
Dimensions: 4 15/16” x 2 1/8”
Material: brass
Weight: 0.5

Neoprene valve gasket for clamp-on gas control valves. 19mm.

Part Number: 00019
Dimensions: 0 1/2” x 0 1/4”
Material: neoprene
Weight: 0.01

Brass orifice. 6mm x 3/4” cone shaped orifice with #64 drill size starter hole. For Electec and other clamp-on valves. Must be drilled to proper drill size.

If you would like us to drill the orifice(s) for you, there is a single $15 fee for this service, which will be added to the order when processed. Please tell us the number of burners in your grill and the total BTUs of your grill (less side burner and rotisserie burner, if any). BTU rating information can usually be found on the grill's CSA certification tag, located somewhere on the grill. Please furnish this, along with any other information you deem relevant, in the Message to CLA box during checkout.

Part Number: 31400
Dimensions: 0 3/4” x 0 5/16”
Material: brass
Weight: 0.01

High quality, long lasting ceramic briquettes. 59 flat top pyramid-shaped briquettes per box. Placed 1/2” apart, 59 briquetes will cover about 368 square inches. This is an area roughly 15” x 24”.

• Top quality product
• Each briquette measure 2” x 2”
• Self cleaning
• Great heat distibution, retains heat longer
• Can be used on all grills that use briquettes or lava rock
• Use a single layer (multiple layers can reduce temperatures)

NOTE: These high quality ceramic briquetes are available in 59 count, 70 count, and 90 count qantities.

• 59 briquetes covers an area apprimately 15” x 24”
• 70 briquetes covers an area apprimately 17” x 26”
• 90 briquetes covers an area apprimately 17” x 33”

Part Number: CLA-AC0394
Dimensions: 2” x 2”
Material: ceramic
Weight: 7.65

BBQ'er choice porcelain grill briquets. The finest available.

• Self-Cleaning Porcelain Briquettes.
• Made of fired porcelain for even heat transfer.
• Virtually indestructible.
• About 56 pieces covers approximately 310 square inches.
• Made in USA.

NOTE: MHP model TJK requires two (2) bags.

Part Number: BQ-3A
Weight: 4.2

Natural lava rock processed and screened for uniformity. 7 lb. bag is enough for all full sized grills. Click the photo to find easy steps for installing lava rocks.

Part Number: 45887
Material: pummise
Weight: 7.0

Fish Spatula. Stainless steel fish spatula with genuine rosewood handle. 18 1/2”. 10” spatula width.

Part Number: FS-1
Dimensions: 18 1/2
Material: stainless steel
Weight: 1.0

Basting brush with angled oak handle. 18” overall length.

Part Number: BB-5
Dimensions: 18
Weight: 0.8

18” long wood handle brass bristle grid brush with scraper and leather hang strap.

Part Number: WB-3
Dimensions: 18
Weight: 0.59
