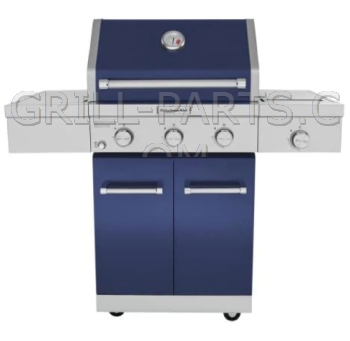

Kitchen Aid 720-0953F Grill Parts

Adjustable universal front-to-back tube burner with top-ported flame holes for Kitchen Aid model 720-0953F. This burner may not work with existing ignition electrodes and back burner cross-overs.

• Variable length burner adjusts from 13 1/2” to 17 1/2”.
• Includes extra hardware and mounting brackets to accommodate almost all grills.
• Comes with complete installation instructions and diagrams.

WARNING: Before ordering this universal burner, please verify that it will work in your grill per the specifications above. If you order this universal burner and it does not work in your grill, please review our Return Policy for ”Ordered Wrong Part.” You will be responsible for all shipping fees.


Part Number: FP-BR1001
Material: stainless steel
Weight: 0.7

Stainless steel burner for Kitchen Aid model 720-0953F.

Part Number: 10811
Dimensions: 16 1/2” x 1”
Material: stainless steel
Weight: 0.7

Stainless steel cooking grid for Kitchen Aid model 720-0953F. Sold as a set of three (3).

Part Number: 5S703
Dimension Front-to-Back: 18 13/16”
Dimension Side-to-Side: 24 3/8”
Material: stainless steel clad wire
Weight: 10.4

Stainless steel Flame Tamer for Kitchen Aid model 720-0953F. Sold individually.

Part Number: 90811
Dimension Front-to-Back: 16 1/2”
Dimension Side-to-Side: 4 1/2”
Material: stainless steel
Weight: 0.8

Ignition module switch for spark generators that accept wired remote (button) trigger switches. Fits our spark generator part numbers 03322, 03332, 03344, 03352, 03356, 03387 and 03388.
Includes:

• Push-button ignition module switch with two male spade connectors on back
• Two 20” wires with female spade connectors
• One plastic mounting nut

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03152
Dimensions: 17 3/4” x 1”
Weight: 0.1

Battery powered ignitor/spark generator for Surefire electronic ignition systems using remote button/trigger.

• 1.5 volt
• Has four(4) spark outlets (male spade connector)
• Has two (2) male spade connectors for trigger (button) part #03152 (sold separately)
• Uses a single AA battery (not included)
• Requires 7/8” mounting hole

NOTE: The battery cap is not a push button. The ignitor is fired by a remote button/switch.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03344
Dimensions: 2” x 2 1/2”
Weight: 0.5

Ground wire required when replacing spark generator for a valve-triggered electrode with a remote switch-triggered spark generator. 03621 plugs into one switch inlet; ring connects to generator neck; switch wire plugs into the other generator switch inlet

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03621
Dimensions: 1 1/8” x 1 1/8”
Weight: 0.1

electrode

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 04433
Dimensions: 4 1/2”
Weight: 0.2

Round heat indicator. Single probe. Requires 13/16” mounting hole.

Part Number: 00745
Dimensions: 3 1/8” x 3 1/8”
Weight: 0.3

Wundersmoke Hickory Chips. These unique hickory wood smoking chips add distinctive hickory wood flavoring to your food. For use will all grills. Comes with reusable puck. One 1lb bag.

Part Number: BP-6
Weight: 1.0

Stainless steel flipper. The ultimate spatula tool, specially curved for perfect flips every time. 18” overall.

Part Number: SF-1
Dimensions: 18
Material: stainless steel
Weight: 0.4

Aluminum foil grilling trays. Package of three.

• Heavy duty aluminum foil
• Re-usable
• Great for grilling delicate foods like fish and veggies

Part Number: 50426
Dimensions: 9” x 13”
Weight: 0.4

Scrub brushes. Plastic grill scrubber. Cleans all types of cooking grids. Plastic grip handle.

Part Number: WB-7
Dimensions: 6” x 3 1/2”
Weight: 0.2
