Lynx Professional L42R-1 Grill Parts

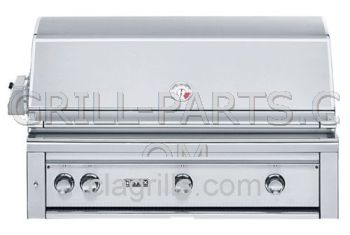

Lynx Professional Series 42" Built-in Grill with Rotisserie

Highest quality replacement parts for your Lynx Professional L42R-1 - Free USA shipping $49 or more* - No Sales Tax*

Lynx L42R-1 owners manual and diagrams

Click the small images on the right to view Lynx L42R-1 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Replacement grill parts to fit Lynx Professional L42R-1

On this page you'll find all of the parts that fit model Lynx L42R-1. We might not show the part you need here but we may still have it, or a functional equivalent. In this case, try the category buttons on the right. For example, if your looking for a cooking grid and there are none here, click the cooking grids button to see all of the cooking grids we have for Lynx grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct Lynx L42R-1 BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Lynx model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

L42R-1 Burners

Click for photos

LX-30485-CI Cast Iron Burner for the Lynx Professional model grills for Lynx model L42R-1.

Fits 30”, 42”, and 54” Lynx Professional and Lynx Premier Grills. May fit other models.

NOTE: Not a Lynx branded product. This is an aftermarket part designed to replace original Lynx part 30485.

Part Number: LX-30485-CI (Replaces Lynx LX-30485)
Dimensions: 17” x 6 1/8”
Material: cast iron
Weight: 11.25

Click for photos

Burner air shutter for Lynx model L42R-1. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.

Part Number: CLA-MS0060
Material: stainless steel
Weight: 0.05

Click for photos

Cast iron burner for Lynx grills with cast brass burners and older DCS models for Lynx model L42R-1.

Part Number: CIDCSLX
Dimensions: 16” x 6 1/4”
Material: cast iron
Weight: 10.0

==> All Lynx Burners.

L42R-1 Cooking Grids

Click for photos

LX-30018-R Premium quality stainless steel cooking grate for Lynx Professional 30”, 42”, and 54” grills for Lynx model L42R-1.

Fits all L30, L42, L54 models from 2002 through 2014.

304 commercial grade stainless steel
Large diameter 3/8” solid stainless rods
Made in USA.
Sold individually.

NOTE: Not a Lynx branded product. This is an aftermarket part designed to replace original Lynx part 30018.

Part Number: LX-30018-R (Replaces Lynx LX-30018)
Dimension Front-to-Back: 21”
Dimension Side-to-Side: 13 1/2”
Material: stainless steel
Weight: 6.0

Click for photos

LX-30019-R Premium quality stainless steel cooking grate for Lynx Professional 42” and 54” grills for Lynx model L42R-1.

Fits all L42 and L54 models from 2002 through 2014.

304 commercial grade stainless steel
Large diameter 3/8” solid stainless rods
Made in USA.
Sold individually.

NOTE: Not a Lynx branded product. This is an aftermarket part designed to replace original Lynx part 30019.

Part Number: LX-30019-R (Replaces Lynx LX-30019)
Dimension Front-to-Back: 21”
Dimension Side-to-Side: 12”
Material: stainless steel
Weight: 6.0

==> All Lynx Cooking Grids.

L42R-1 Rock/Briquette Grates

Click for photos

LX-80015-R Stainless steel Briquette Tray for 30”, 42” and 54” Lynx Professional Series Grills. Fits all 30”, 42” and 54” Lynx models from 2002 through 2011. May fit other models.

Holds 35 ceramic briquettes (sold seperately). See part# BQLYX.
NOTE: See part# LX-80364-R for tray and briquette assembly.

30” grill uses two(2) 80015 trays
42” grill uses two (2) 80015 trays and one (1) 80033 tray
54” grill uses two (2) 80015 trays and two (2) 80033 trays

NOTE: Not a Lynx branded product. This is an aftermarket part designed to replace original Lynx part 80015.

Part Number: LX-80015-R (Replaces Lynx LX-80015)
Dimension Front-to-Back: 19 1/4”
Dimension Side-to-Side: 12 1/4”
Material: stainless steel
Weight: 3.45

Click for photos

LX-80033-R Stainless Briquette Center Tray for 42” and 54” Lynx Professional Grills.

FIts models: L42R, L42PSR, L42PSFR, L54PSR, L54PSFR. May fit other models.

Uses BQLYX briquettes.

NOTE: Not a Lynx branded product. This is an aftermarket part designed to replace original Lynx part 80033.

Part Number: LX-80033-R (Replaces Lynx LX-80033)
Dimension Front-to-Back: 19 1/4”
Dimension Side-to-Side: 10 1/4”
Material: stainless steel
Weight: 3.45

==> All Lynx Rock/Briquette Grates.

L42R-1 Heat Plates

Heat Plate/ Flame Tamer not known for Lynx model L42R-1. Our parts information for this grill model is incomplete, and we really don't know with certainty which heat plate fits this model. It may be that we have the part but don't show it here due to data or other error.

If you know the original OEM part number, try searching for it in the search box at the top of this page.

You can also browse through all of the heat plates we carry for your brand grill. If we don't have the exact fit for your grill, we may have a suitable replacement part. Measure your existing part so you'll know exactly what size is needed.

If you have this grill model and know the number and dimensions of your original heat plates, click here to send an email to our GrillDr that includes this information. We greatly appreciate your help.

Part Number: HP-DUMMY
Weight: 1.0

==> All Lynx Heat Plates.

L42R-1 Accessories

Click for photos

Ceramic briquettes for Lynx and Dynasty Grills with 28 briquettes per box.

Part Number: BQLYX (Replaces Lynx LX-90053)
Dimensions: 2” x 2”
Material: ceramic
Weight: 4.0

Ceramic briquettes 48 pieces. Fits briquette trays 94751, 92571 and and simular trays. Works in all grills designed for briquettes or lava rock. Each briquette measures 2” x 2” x 3/4".

Part Number: 41648 (Replaces Lynx LX-90053)
Dimensions: 2” x 2”
Material: ceramic
Weight: 7.5

Wundersmoke Mesquite Chips. These unique mesquite wood smoking chips add distinctive flavoring to your food. For use will all grills. Comes with reusable puck. One 1lb bag.

Part Number: BP-5
Weight: 1.0

Click for photos

Basting brush with angled oak handle. 18” overall length.

Part Number: BB-5
Dimensions: 18
Weight: 0.8

Click for photos

Replacement brass bristle brush head for WB-8 brush. Screws included.

Part Number: WB-8RH
Dimensions: 18 1/2
Material: stainless steel
Weight: 0.2

==> All L42R-1 Accessories.
