Nexgrill 720-0600 Grill Parts

Highest quality replacement parts for your Nexgrill 720-0600 - Free USA shipping $49 or more* - No Sales Tax*

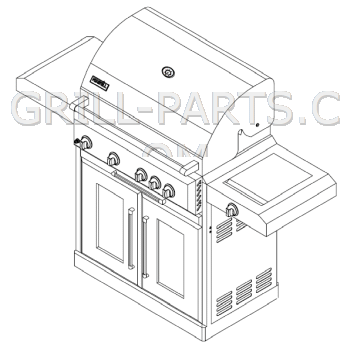

Nexgrill 720-0600 owners manual and diagrams

Click the small images on the right to view Nexgrill 720-0600 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Nexgrill 720-0600-32499939931-PartsExpS1.gif

Replacement BBQ grill parts for Nexgrill model: 720-0600

This page shows all of the parts we know fit model Nexgrill 720-0600. If the part you're shopping for isn't included below, you might find it using the category buttons on the right side of the page. For example, if your looking for a burner and there are none here, click the burner button to see all the burners we have for Nexgrill grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Nexgrill 720-0600 BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Nexgrill model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

720-0600 Burners

Click for photos

304 Stainless steel Infrared rear rotisserie burner with ceramic wafer replacement for Nexgrill model 720-0600 for Nexgrill model 720-0600. For use with both liquid propane (LP) and natural gas grills. 8,000 BTU. Orifice not included. Use old orifice or purchase our orifice part# CLA-VB0245 for LP, or part# CLA-VB0246 for natural gas applications.

Dimensions:

Maximum overall length, including mounting tab on one end: 17”
Maximum width: 3 3/8”
Burner box 15 3/8” x 3 3/8”
Mounting holes: 16 1/8” on center

Part Number: 10000505A0-R (Replaces Nexgrill 10000505A0)
Dimensions: 3 3/8” x 07”
Material: stainless steel and ceramic
Weight: 3.0

Click for photos

Stainless steel burner for Nexgrill model 720-0600.

Part Number: CBP6
Dimensions: 14 3/8” x 1”
Material: stainless steel
Weight: 1.0

==> All Nexgrill Burners.

720-0600 Burner Brackets and Carryovers

Click for photos

Burner support rail (bracket) with crossover tube. Made in USA.

Part Number: CLA-MS0176
Dimensions: 15 1/16”
Material: stainless steel
Weight: 0.70

==> All Nexgrill Burner Brackets and Carryovers.

720-0600 Cooking Grids

Cooking grid not known for Nexgrill model 720-0600. Our parts information for this grill model is incomplete, and we really don't know with certainty which cooking grid fits this model. It may be that we have the part but don't show it here due to data or other error.

If you know the original OEM part number, try searching for it in the search box at the top of this page.

You can also browse through all of the Nexgrill cooking grids we carry. If we don't have the exact fit grid for your grill, we may have a suitable replacement part. Measure your existing part as well as the the grid support area of the grill so you'll know exactly what size grids will fit.

If you have this grill model and know the number and dimensions of your original cooking grids, please share this information with us. Click here to send an email to our GrillDr that includes this information. We greatly appreciate your help.

Part Number: CG-DUMMY
Weight: 1.0

==> All Nexgrill Cooking Grids.

720-0600 Heat Plates

Click for photos

Stainless steel Flame Tamer for Nexgrill model 720-0600.

Part Number: NGKHP1
Dimension Front-to-Back: 15 1/8”
Dimension Side-to-Side: 4 3/16”
Material: stainless steel
Weight: 1.0

==> All Nexgrill Heat Plates.

720-0600 Igniter Components

Click for photos

Burner-mounted ceramic electrode, wire, and mounting bracket.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-19B
Weight: 0.1

==> All Nexgrill Igniter Components.

720-0600 Grease Trays

Click for photos

Stainless steel grease tray (grease slide panel bottom); includes grease cup and grease cup holder. Replacement for OEM # 20001127A0. Made in USA

Part Number: CLA-DS0274 (Replaces Nexgrill 20001127A0)
Dimensions: 8 1/4” x 27 5/8”
Material: stainless steel
Weight: 2.45

==> All Nexgrill Grease Trays.

720-0600 Valves, Orifices, and Manifolds

Click for photos

#63 orifice for infrared burner CLA-BL0229; use on liquid propane (LP) gas grills. Includes brass elbow with 1/4” compression fitting.

Part Number: CLA-VB0245
Dimensions: 3 3/8” x 17 1/4”
Material: stainless steel and ceramic
Weight: 0.3

#55 orifice for infrared burners use on natural Gas grills. Includes brass elbow with 1/4” compression fitting.

Part Number: CLA-VB0246
Dimensions: 3 3/8” x 17 1/4”
Material: stainless steel and ceramic
Weight: 0.3

==> All Nexgrill Valves, Orifices, and Manifolds.

720-0600 Heat indicators and Meat Thermometers

Click for photos

Oval lid heat indicator. Three-hole mount with two threaded studs 1 1/2” offset on center. Requires 3/8” center hole for temperature sensor probe.

Part Number: 22551 (Replaces Nexgrill 05000027A0)
Dimensions: 2 15/16” x 1 7/8”
Weight: 0.2

==> All Nexgrill Heat indicators and Meat Thermometers.

720-0600 Accessories

Click for photos

Venturi Tube 12” Brush. Recommended by all grill manufacturers. Specially designed flexible brush to clean venturis of spider webs and other obstructions that can cause flashback fires. Stainless steel.

Part Number: VTC-B
Material: stainless steel
Weight: 0.3

==> All 720-0600 Accessories.
