Perfect Flame 730-0522 Grill Parts

Perfect Flame logo

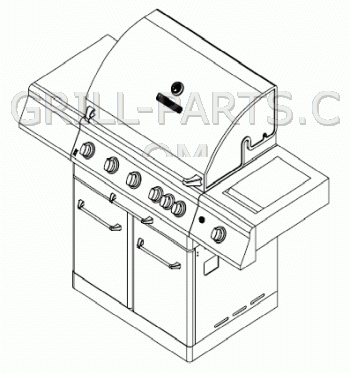

Perfect Flame 730-0522



Highest quality replacement parts for your Perfect Flame 730-0522 - Free USA shipping $49 or more* - No Sales Tax*



Perfect Flame 730-0522 owners manual and diagrams
Click the small images on the right to view Perfect Flame 730-0522 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!



Perfect Flame 730-0522-32599944431-PartsExpS1.gif  Perfect Flame 730-0522-32599944431-PartsExpS2.gif  Perfect Flame 730-0522-32599944431-PartsLstS1.gif

Replacement grill parts for the Perfect Flame model: 730-0522
All of the parts we have for Perfect Flame 730-0522 are shown on this page. If the part you need is not shown below, try clicking the appropriate category button on the right side of the page. For example, if your looking for a Flame Tamer/Heat Plate and there are none here, click the Heat Plate button to see all of the Heat Plates we have for Perfect Flame grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Perfect Flame 730-0522 BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Perfect Flame model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



730-0522 Burners

CBP3
Click for photos
Stainless steel burner for Perfect Flame model 730-0522. Fits premium and designer stainless grills by Charbroil. Includes:
  • Made of high quality 304 stainless steel
  • Spider exclusion screen
  • Ignition electrode mounting holes on both sides of burner
  • Back mounting hole is round, inspect your old burner


Part Number: CBP3
Dimensions: 16 15/16
Material: stainless steel
Weight: 1.0

$42.87

Qty


==> All Perfect Flame Burners.






730-0522 Burner Brackets and Carryovers

CLA-MS0100
Click for photos
Stainless steel burner support bracket. Made in USA.

Part Number: CLA-MS0100
Dimensions: 2 3/4” x 25 1/2”
Material: stainless steel
Weight: 1.45

$43.89

Qty


==> All Perfect Flame Burner Brackets and Carryovers.






730-0522 Cooking Grids

CG-69P-CI
Click for photos
Cast iron cooking grid for Perfect Flame model 730-0522.
  • Sold inividually
  • Porcelain treated, matte finish
  • Number required varies by grill model
  • Each panel measures 19 1/4” x 10 3/8”


Part Number: CG-69P-CI
Dimension Front-to-Back: 19 1/4”
Dimension Side-to-Side: 10 3/8”
Material: cast iron
Weight: 7.10

$60.53

Qty


CLA-GS0005
Click for photos

Premium quality heavy duty stainless steel cooking grid for Perfect Flame model 730-0522. Our USA-made premium stainless grids are simply the best obtainable. We have them manufactured here in the USA to our specifications and standards, which are high. Of course, they're not available anywhere else.

Unlike the standard issue stainless grids generally found today, which are typically low grade stainless and sometimes hollow, or coated carbon steel, our premium grids are made from solid high quality stainless steel rods. If you're looking for the best, you've found it. Just look at the weight of one of these grids, over 6 pounds of solid stainless each.

  • 304 commercial grade stainless steel
  • Large diameter 5/16” solid stainless rods
  • Dimensions: 19 1/4” x 10 1/4”
  • Made in USA.
  • Sold individually.

See part CLA-GS0005-X3 for a more economical 3-pack.



Part Number: CLA-GS0005
Dimension Front-to-Back: 19 1/4”
Dimension Side-to-Side: 10 1/4”
Material: stainless steel
Weight: 6.3

$101.27

Qty


CG-69P-CI-X3
Click for photos
Cast iron cooking grids for Perfect Flame model 730-0522. SET OF THREE (3) panels.
  • Porcelain treated, matte finish
  • Each panel measures 19 1/4” x 10 3/8”
  • Overall dimensions: 19 1/4” x 31 1/8”


Part Number: CG-69P-CI-X3
Dimension Front-to-Back: 19 1/4”
Dimension Side-to-Side: 31 1/8”
Material: cast iron
Weight: 21.3

$159.93

Qty


==> All Perfect Flame Cooking Grids.






730-0522 Heat Plates

CLA-TS0083
Click for photos
Stainless steel Flame Tamer for Perfect Flame model 730-0522. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.

Part Number: CLA-TS0083
Dimension Front-to-Back: 17 1/4”
Dimension Side-to-Side: 5”
Material: stainless steel
Weight: 0.9

$35.15

Qty


==> All Perfect Flame Heat Plates.






730-0522 Igniter Components

TS-IG2006
Click for photos
Push-button electronic igniter with two (2) spade connectors. Black cap. 1 AAA battery (not included).

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: TS-IG2006
Weight: 0.2

$16.46

Qty


IGEIB2-B
Click for photos
Battery powered push button igniter.
  • Has two (2) spade type male connectors.
  • Uses 1 AAA battery (not supplied)
  • Requires 3/4” or 13/16” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IGEIB2-B
Weight: 0.3

$34.08

Qty


IG-19B
Click for photos
Burner-mounted ceramic electrode, wire, and mounting bracket.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-19B
Weight: 0.1

$12.93

Qty


IG-30B
Click for photos
46” Wire with female spade connectors and square plastic connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-30B
Dimensions: 46
Weight: 0.1

$7.10

Qty


IG-48B
Click for photos
16” Universal Ignitor Wire

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-48B
Dimensions: 16
Weight: 0.05

$6.00

Qty


==> All Perfect Flame Igniter Components.






730-0522 Accessories

BP-6
Wundersmoke Hickory Chips. These unique hickory wood smoking chips add distinctive hickory wood flavoring to your food. For use will all grills. Comes with reusable puck. One 1lb bag.

Part Number: BP-6
Weight: 1.0

$9.75

Qty


40259
Click for photos
15” Stainless steel tong.
  • Soft comfort grip
  • Locking mechanism


Part Number: 40259
Dimensions: 15
Material: stainless steel
Weight: 0.14

$9.92

Qty


50426
Click for photos
Aluminum foil grilling trays. Package of three.
  • Heavy duty aluminum foil
  • Re-usable
  • Great for grilling delicate foods like fish and veggies


Part Number: 50426
Dimensions: 9” x 13”
Weight: 0.4

$8.64

Qty


77330
Click for photos
8” Plastic grill brush with scraper.

Part Number: 77330
Weight: 0.3

$3.53

Qty


==> All 730-0522 Accessories.




BBQ Part Categories
























Perfect Flame grill model 730-0522 - Sunday, Jan 26 2025

Return to Perfect Flame grill parts main page



More Perfect Flame grill models we have parts for
241317 | 241318 | 2518SL-LPG | 2518SL-NG | 2518SLN-LPG | 276964L | 276967L | 3019L | 3019L-LPG | 3019L-NG | 720-0335 | 720-0522 | 720-0522CAN | 730-0335 | E3520-LPG | E3520-NG | GAC3615 | GSC3318 | GSC3318N | GST1811 | GST2114 | MH45812 3JYP | PF30LP | PFISLP | SLG2006B | SLG2006BN | SLG2006C | SLG2006CN | SLG2007A | SLG2007B | SLG2007BN | SLG2007D | SLG2007DN | SLG2008A | TT-1001 |



*Orders for Perfect Flame grill model 730-0522 $49 and over ship free to the lower 48 states.
See shipping policy below for more info.
