Sterling 2817-7 Grill Parts

Highest quality replacement parts for your Sterling 2817-7 - Free USA shipping $49 or more* - No Sales Tax*

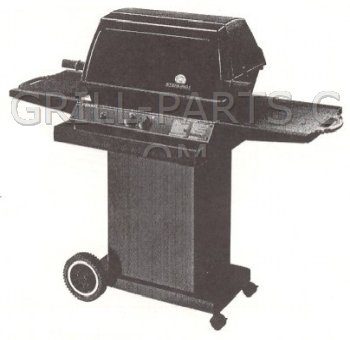

Sterling 2817-7 owners manual and diagrams

Click the small images on the right to view Sterling 2817-7 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Sterling 2817-7-441822233-PartsExpS1.jpg

Sterling 2817-7-441822233-PartsLstS1.jpg

Replacement grill parts for the Sterling model: 2817-7

This page shows all of the parts we know fit model Sterling 2817-7. If you can't find the part you need below, click on the appropriate category button on the right side of the page. For example, if your looking for an ignitor, or other ignition components, and there are none here, click the ignition button to see what we have for Sterling grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct Sterling 2817-7 BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Sterling model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

2817-7 Burners

Click for photos

Genuine OEM Sterling stainless steel burner and venturi assembly for Sterling model 2817-7. Includes burner-mounted igniter electrode and wire part# S15500. Fully assembled.

Part Number: S10017
Dimensions: 8” x 20 1/2”
Material: Stainless steel
Weight: 3.5

==> All Sterling Burners.

2817-7 Cooking Grids

Click for photos

Two level 304 grade stainless steel cooking grid SOLD INDIVIDUALLY

Sold individually
Number required varies, check your grill

for Sterling model 2817-7.

Part Number: S12024
Dimension Front-to-Back: 15 1/4”
Dimension Side-to-Side: 11”
Material: Stainless steel
Weight: 6.3

==> All Sterling Cooking Grids.

2817-7 Heat Plates

Heat Plate/ Flame Tamer not known for Sterling model 2817-7. Our parts information for this grill model is incomplete, and we really don't know with certainty which heat plate fits this model. It may be that we have the part but don't show it here due to data or other error.

If you know the original OEM part number, try searching for it in the search box at the top of this page.

You can also browse through all of the heat plates we carry for your brand grill. If we don't have the exact fit for your grill, we may have a suitable replacement part. Measure your existing part so you'll know exactly what size is needed.

If you have this grill model and know the number and dimensions of your original heat plates, click here to send an email to our GrillDr that includes this information. We greatly appreciate your help.

Part Number: HP-DUMMY
Weight: 1.0

==> All Sterling Heat Plates.

2817-7 Igniter Components

Click for photos

Push button igniter. For single wire for grills with no side burner. Wires not included. Comes in black or grey as available from manufacturer.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-21
Weight: 0.05

Click for photos

Genuine OEM Sterling collector box and electrode assembly. Includes

burner mounted collector box (clip on)
ceramic electrode and 18” wire with round connector and protective sleeve.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: S15500
Weight: 0.1

==> All Sterling Igniter Components.

2817-7 Accessories

Click for photos

Ultimate ceramic grill bricks. 18 ceramic bricks covers 165 sq. inches. Designed to replace existing lava rock and ceramic briquettes.

Self cleaning
Reduces flare-ups
Eliminates cold spots
Lasts longer
Stays hotter longer
Each brick measures 3” x 3” x3/8”

Part Number: 43118
Weight: 2.7

Click for photos

Natural lava rock processed and screened for uniformity. 7 lb. bag is enough for all full sized grills. Click the photo to find easy steps for installing lava rocks.

Part Number: 45887
Material: pummise
Weight: 7.0

Click for photos

Venturi Tube 12” Brush. Recommended by all grill manufacturers. Specially designed flexible brush to clean venturis of spider webs and other obstructions that can cause flashback fires. Stainless steel.

Part Number: VTC-B
Material: stainless steel
Weight: 0.3

==> All 2817-7 Accessories.
