Uniflame GBC956W1NG-C Grill Parts

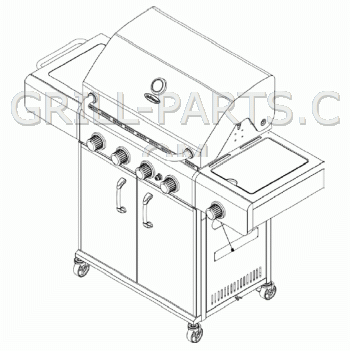

Uniflame GBC956W1-C 4-Burner natural gas grill with side burner

Highest quality replacement parts for your Uniflame GBC956W1NG-C - Free USA shipping $49 or more* - No Sales Tax*

Uniflame GBC956W1NG-C owners manual and diagrams

Click the small images on the right to view Uniflame GBC956W1NG-C exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Uniflame GBC956W1NG-C-35043388EE5844-PartsExpS1.gif

Replacement BBQ grill parts for Uniflame model: GBC956W1NG-C

This page shows all of the parts we know fit model Uniflame GBC956W1NG-C. If you can't find the part you need below, click on the appropriate category button on the right side of the page. For example, if your looking for an ignitor, or other ignition components, and there are none here, click the ignition button to see what we have for Uniflame grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct Uniflame GBC956W1NG-C BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Uniflame model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

GBC956W1NG-C Burners

Click for photos

Stainless steel tube burner for Uniflame model GBC956W1NG-C. Includes

SS tube burner
Electrode mounting bracket
Spider exclusion screen
Adjustable air shutter.

Part Number: 18311 (Replaces Uniflame 55-09-026)
Dimensions: 16 1/8” x 1”
Material: stainless steel
Weight: 0.5

==> All Uniflame Burners.

GBC956W1NG-C Cooking Grids

Click for photos

Cast iron cooking grids for Uniflame model GBC956W1NG-C. Porcelain treated, flat matte finish. Sold as a set of two (2).

Part Number: 61192 (Replaces Uniflame 55-09-258)
Dimension Front-to-Back: 17”
Dimension Side-to-Side: 26 1/2”
Material: matte cast iron
Weight: 12.10

Click for photos

Channel formed U-shaped porcelain steel cooking grids for Uniflame model GBC956W1NG-C. Channel formed means rolled steel stamped into a U-shape; is not solid round rods. Porcelain enameled, glossy finish. Sold as a set of two (2).

Part Number: 59812
Dimension Front-to-Back: 17 3/16”
Dimension Side-to-Side: 27”
Material: stamped porcelain steel
Weight: 7.2

==> All Uniflame Cooking Grids.

GBC956W1NG-C Heat Plates

Click for photos

Stainless steel Heat Distribution Plate / Flame Tamer for Uniflame model GBC956W1NG-C.

Part Number: CHMBHP3 (Replaces Uniflame 55-09-018)
Dimension Front-to-Back: 15 3/8”
Dimension Side-to-Side: 3 15/16”
Material: stainless steel
Weight: .66

Click for photos

SET OF FOUR/4 PACK Stainless steel Heat Distribution Plates for Uniflame model GBC956W1NG-C. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.

Part Number: CLA-TS0135-X4
Dimension Front-to-Back: 15 5/16”
Dimension Side-to-Side: 3 7/8”
Material: stainless steel
Weight: 2.64

Click for photos

Stainless steel Flame Tamer for Uniflame model GBC956W1NG-C.

Part Number: NGKHP1
Dimension Front-to-Back: 15 1/8”
Dimension Side-to-Side: 4 3/16”
Material: stainless steel
Weight: 1.0

==> All Uniflame Heat Plates.

GBC956W1NG-C Igniter Components

Click for photos

Battery powered push button igniter.

Has six (6) spade type male connectors.
Uses 1 AA battery (not supplied)
Requires 7/8” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IGEIB6-B
Weight: 0.3

Click for photos

46” Wire with female spade connectors and square plastic connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-30B
Dimensions: 46
Weight: 0.1

Click for photos

16” Universal Ignitor Wire

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-48B
Dimensions: 16
Weight: 0.05

Click for photos

Burner-mounted ceramic igniter electrode with mounting bracket and hardware.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-20B
Weight: 0.05

==> All Uniflame Igniter Components.

GBC956W1NG-C Accessories

Click for photos

Venturi Tube 12” Brush. Recommended by all grill manufacturers. Specially designed flexible brush to clean venturis of spider webs and other obstructions that can cause flashback fires. Stainless steel.

Part Number: VTC-B
Material: stainless steel
Weight: 0.3

==> All GBC956W1NG-C Accessories.
