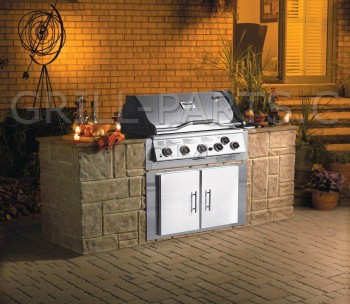

Vermont Castings VCS5007BI



Highest quality replacement parts for your Vermont Castings Signature VCS5007BI - Free USA shipping $49 or more* - No Sales Tax*



Vermont Castings VCS5007BI owners manual and diagrams
Click the small images on the right to view Vermont Castings VCS5007BI exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!



Vermont Castings VCS5007BI-565549926030-PartsExpS1.gif  Vermont Castings VCS5007BI-565549926030-PartsLstS1.gif  Vermont Castings VCS5007BI-565549926030-PartsLstS2.gif

Replacement grill parts for Vermont Castings Signature VCS5007BI
All of the parts we have for Vermont Castings VCS5007BI are shown on this page. If the part you need is not shown below, try clicking the appropriate category button on the right side of the page. For example, if your looking for a Flame Tamer/Heat Plate and there are none here, click the Heat Plate button to see all of the Heat Plates we have for Vermont Castings grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Vermont Castings VCS5007BI BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Vermont Castings model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



VCS5007BI Burners

CLA-MS0227
Click for photos
Burner mounting plate for Vermont Castings model VCS5007BI. This part is used to reinforce the front grill housing so the burner can be mounted to the grill. In some cases, the grill housing has rusted or corroded such that the burner cannot be properly mounted to the front of the grill.
  • Sold individually, number required varies. Use one per burner.
  • Includes mounting bolt and nut
  • Includes extra holes for mounting to grill, if necessary.
  • Comes with complete installation instructions.
For models:
  • CF9080/85/86
  • VCS300/3500/35BI/4000/4005/5000/5005/5010/50BI
  • VCS3507/4007/5007/3507BI/5007BI
Made in USA

Part Number: CLA-MS0227
Dimensions: 3 3/4” x 4 15/16”
Material: stainless steel
Weight: 0.11

$17.92

Qty


03501
Click for photos
Burner mounting plate for Vermont Castings model VCS5007BI. This part is used to reinforce the front grill housing so the burner can be mounted to the grill. In some cases, the grill housing has rusted or corroded such that the burner cannot be properly mounted to the front of the grill.
  • Premium grade stainless steel
  • Includes gasket and mounting screw
  • Comes with complete installation instructions
  • Sold individually.
For models:
  • CF9080/85/86
  • VCS300/3500/35BI/4000/4005/5000/5005/5010/50BI
  • VCS3507/4007/5007/3507BI/5007BI


Part Number: 03501
Dimensions: 3 3/4” x 4”
Material: stainless steel
Weight: 0.16

$25.90

Qty


50000835 / VTB1
Click for photos
Commercial premium grade stainless steel burner for Vermont Castings model VCS5007BI.


Part Number: VTB1 (Replaces Vermont Castings 50000835)
Dimensions: 17
Material: stainless steel
Weight: 1.0

$38.90
CLEARANCE  $24.19
Qty


==> All Vermont Castings Burners.






VCS5007BI Burner Brackets and Carryovers

50001300B / CLA-MS0112
Click for photos
Stainless steel Flash Tube burner support bracket. Made in USA.

Part Number: CLA-MS0112 (Replaces Vermont Castings 50001300B)
Dimensions: 2” x 13 1/4”
Material: stainless steel
Weight: 0.30

$18.93

Qty


==> All Vermont Castings Burner Brackets and Carryovers.






VCS5007BI Cooking Grids

CG-51SS
Click for photos
Cooking Grid 304 Grade Stainless Steel for Vermont Castings model VCS5007BI.225” Rods.

Part Number: CG-51SS
Dimension Front-to-Back: 16 1/2”
Dimension Side-to-Side: 11 1/4”
Material: stainless steel
Weight: 3.50

$47.05

Qty


CG-92P-CI
Click for photos
Cast Iron cooking grid for Vermont Castings model VCS5007BI.

Part Number: CG-92P-CI
Dimension Front-to-Back: 16 1/2”
Dimension Side-to-Side: 11 3/8”
Material: cast iron
Weight: 10

$50.61

Qty


CG-92P-CI-X2
Click for photos
Cast iron cooking grids for Vermont Castings model VCS5007BI. SET OF TWO (2) panels.
  • Porcelain treated, matte finish
  • Each panel measures 16 1/2” x 11 3/8”
  • Overall dimensions: 16 1/2” x 22 3/4”


Part Number: CG-92P-CI-X2
Dimension Front-to-Back: 16 1/2”
Dimension Side-to-Side: 22/4”
Material: cast iron
Weight: 20

$93.28

Qty


CG-51SS-X2
Click for photos
Premium quality stainless steel cooking grids for Vermont Castings model VCS5007BI. SET OF TWO (2). Far superior to the porcelain coated steel grids it replaces.
  • Made in USA
  • 304 commercial grade stainless steel
  • .225 diameter solid stainless rods
  • Each panel measures 16 1/2” x 11 1/4”
  • Overall dimensions: 16 1/2” x 22 1/2”
.

Part Number: CG-51SS-X2
Dimension Front-to-Back: 16 1/2”
Dimension Side-to-Side: 22 1/2”
Material: stainless steel
Weight: 7.0

$85.08

Qty


50001767 / CG-59P-CI
Click for photos
Cast iron cooking grid for Vermont Castings model VCS5007BI. Porcelain treated, matte finish. Sold individually, number required varies by grill model.

Part Number: CG-59P-CI (Replaces Vermont Castings 50001767)
Dimension Front-to-Back: 16 3/8”
Dimension Side-to-Side: 9 1/4”
Material: cast iron
Weight: 5.45

$67.49

Qty


==> All Vermont Castings Cooking Grids.






VCS5007BI Heat Plates

CLA-TS0016-X3
Click for photos
SET OF THREE/3 PACK Stainless steel Flame Tamer for Vermont Castings model VCS5007BI. Sold individually, number required varies. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.

Part Number: CLA-TS0016-X3
Dimension Front-to-Back: 14 1/2”
Dimension Side-to-Side: 7 1/4”
Material: stainless steel
Weight: 3.6

$95.58

Qty


50000777 / CLA-TS0016
Click for photos
Stainless steel Flame Tamer for Vermont Castings model VCS5007BI. Sold individually, number required varies. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.

Part Number: CLA-TS0016 (Replaces Vermont Castings 50000777)
Dimension Front-to-Back: 14 1/2”
Dimension Side-to-Side: 7 1/4”
Material: stainless steel
Weight: 1.3

$37.51

Qty


==> All Vermont Castings Heat Plates.






VCS5007BI Igniter Components

50000431 / IG-20B
Click for photos
Burner-mounted ceramic igniter electrode with mounting bracket and hardware.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-20B (Replaces Vermont Castings 50000431)
Weight: 0.05

$6.70

Qty


==> All Vermont Castings Igniter Components.






VCS5007BI Regulators and Hoses

ASCPL-1
Click for photos
Five piece 3/8” natural gas quick disconnect set includes:
  • Part ASCPL-2 12ft vinyl 3/8” ID Sturgis hose (3/8” inside diameter outside diameter about 1/2”) with solid brass fittings
  • Part ASCPL-3 Sturgis brand 3/8” quick connect brass coupler
  • Hansen & Sturgis dust cover
  • plastic dust plug
  • Plastic 3/8 MPT Snap Tite
  • Suitable up to approximately 60,000 BTU.


Part Number: ASCPL-1
Weight: 3.0

$75.71

Qty


50000198 / ASCPL-2
Click for photos
12ft vinyl 3/8” ID natural gas Sturgis hose (inside diameter 3/8” and outside diameter about 1/2”) with solid brass fittings. Use with brass coupler part# ASCPL-3 (not included). See part# ASCPL-1 for hose and coupler set.

Part Number: ASCPL-2 (Replaces Vermont Castings 50000198)
Weight: 2.5

$46.34

Qty


50000915 / ASCPL-3
Click for photos
Brass 3/8” Sturgis quick connect coupler for use with hose part# ASCPL-2 (sold separately). Also, see part# ASCPL-1 for hose and coupler set.

Part Number: ASCPL-3 (Replaces Vermont Castings 50000915)
Weight: 0.4

$33.61

Qty


==> All Vermont Castings Regulators and Hoses.






VCS5007BI Heat indicators and Meat Thermometers

10571-6
Click for photos
Heat indicator. About 2 3/8” wide and 2” high. The threaded stem is about 5 /16” diameter and 1 1/8” long.

Part Number: 10571-6
Weight: 0.12

$17.76

Qty


==> All Vermont Castings Heat indicators and Meat Thermometers.






VCS5007BI Accessories

40259
Click for photos
15” Stainless steel tong.
  • Soft comfort grip
  • Locking mechanism


Part Number: 40259
Dimensions: 15
Material: stainless steel
Weight: 0.14

$9.92

Qty


77330
Click for photos
8” Plastic grill brush with scraper.

Part Number: 77330
Weight: 0.3

$3.53

Qty


==> All VCS5007BI Accessories.
