Backyard Grill GBC1405WV Grill Parts

Backyard Grill logo



Backyard Grill GBC1405WV

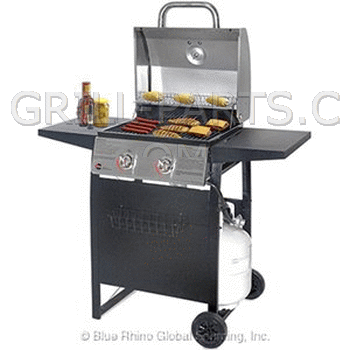

Backyard Grill 2-Burner Outdoor LP Gas Grill



Highest quality replacement parts for your Backyard Grill GBC1405WV - Free USA shipping $49 or more* - No Sales Tax*



Backyard Grill GBC1405WV owners manual and diagrams
Click the small images on the right to view Backyard Grill GBC1405WV exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!



Backyard Grill GBC1405WV-4E6586944430-PartsExpS1.gif

Replacement grill parts for the Backyard Grill model: GBC1405WV
On this page you'll find all of the parts that fit model Backyard Grill GBC1405WV. If the part you need is not shown below, try clicking the appropriate category button on the right side of the page. For example, if your looking for a warming rack and there are none here, click the warming rack button to see all of the racks we have for Backyard Grill grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Backyard Grill GBC1405WV BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Backyard Grill model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



GBC1405WV Burners

55-23-528 / BHGBGT1
Click for photos
BHG Stainless Steel Tube Burner for Backyard Grill model GBC1405WV.

Part Number: BHGBGT1 (Replaces Backyard Grill 55-23-528)
Dimensions: 16 9/16
Material: stainless steel
Weight: 0.85

$34.27

Qty


12411
Click for photos
Stainless steel tube burner for Backyard Grill model GBC1405WV.
    Includes
  • SS tube burner
  • Electrode mounting bracket (not all models use bracket)
  • Spider exclusion screen
  • Adjustable air shutter.


NOTE: Some earlier versions of this burner, which are no longer available, were a bit larger in diameter. Some models may not need the electrode tab.


Part Number: 12411
Dimensions: 16 1/2” x 1”
Material: stainless steel
Weight: 0.6

$35.30
CLEARANCE  $20.15
Qty


==> All Backyard Grill Burners.






GBC1405WV Cooking Grids

CG-DUMMY
Cooking grid not known for Backyard Grill model GBC1405WV. Our parts information for this grill model is incomplete, and we really don't know with certainty which cooking grid fits this model. It may be that we have the part but don't show it here due to data or other error.

If you know the original OEM part number, try searching for it in the search box at the top of this page.

You can also browse through all of the Backyard Grill cooking grids we carry. If we don't have the exact fit grid for your grill, we may have a suitable replacement part. Measure your existing part as well as the the grid support area of the grill so you'll know exactly what size grids will fit.

If you have this grill model and know the number and dimensions of your original cooking grids, please share this information with us. Click here to send an email to our GrillDr that includes this information. We greatly appreciate your help.

Part Number: CG-DUMMY
Weight: 1.0
==> All Backyard Grill Cooking Grids.






GBC1405WV Heat Plates

55-10-045 / UFHP4
Click for photos
Uniflame Heat Plate for Backyard Grill model GBC1405WV.

Part Number: UFHP4 (Replaces Backyard Grill 55-10-045)
Dimension Front-to-Back: 14 3/16”
Dimension Side-to-Side: 3 13/16”
Material: stainless steel
Weight: 0.60

$25.88

Qty


==> All Backyard Grill Heat Plates.






GBC1405WV Igniter Components

55-10-500 / 03120
Click for photos
Push-Button self-grounding piezo spark generator; requiers 3/4” mounting hole. Primary connector is a round male connector, so connecting wire needs to be female round connector. If needed, see part# 03199C for a short adapter wire that converts flat female spade connectors to female round. Secondary connector is a flat male spade connector used to conduct spark to a secondary electrode, such as a side burner, or used as a ground in some applications. See ground wire part# 03620. For more information, see our article Ignition 101.

Part Number: 03120 (Replaces Backyard Grill 55-10-500)
Weight: 0.1

$9.74

Qty


03199C
Click for photos
Universal 2 3/4” adaptor wire with a round female end and a male spade end that has a protective cover.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 03199C
Weight: 0.05

$4.37

Qty


IG-7B
Click for photos
20” igniter wire with female spade and round connector.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-7B
Weight: 0.02

$4.75

Qty


IG-18B
Click for photos
20” igniter wire with two (2) female spade connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-18B
Weight: 0.03

$4.93

Qty


IG-30B
Click for photos
46” Wire with female spade connectors and square plastic connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-30B
Dimensions: 46
Weight: 0.1

$7.10

Qty


IG-48B
Click for photos
16” Universal Ignitor Wire

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-48B
Dimensions: 16
Weight: 0.05

$6.00

Qty


IG-20B
Click for photos
Burner-mounted ceramic igniter electrode with mounting bracket and hardware.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-20B
Weight: 0.05

$6.70

Qty


UP-9B
Click for photos
Snap In Piezo Ignitor. Fits Weber Genesis Silver A,B,C and Newer Spirit E310 & E320.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: UP-9B
Weight: 0.2

$8.38

Qty


==> All Backyard Grill Igniter Components.






GBC1405WV Heat indicators and Meat Thermometers

55-23-534 / 00018
Click for photos
Round heat indicator.
  • Single probe
  • 1 13/16” diameter
  • Requires 3/8” mounting hole


Part Number: 00018 (Replaces Backyard Grill 55-23-534)
Dimensions: 1 13/16” x 1 13/16”
Weight: 0.1

$15.82

Qty


==> All Backyard Grill Heat indicators and Meat Thermometers.






GBC1405WV Accessories

40240
Click for photos
16” Stainless Steel Tong/Turner Combination. 16” multi-use tool with red soft grip rubber inserts. Can be used as a turner, tong or both. Manual lock saves on storage space.

Part Number: 40240
Material: chrome steel
Weight: 0.9

$16.59

Qty


BB-5
Click for photos
Basting brush with angled oak handle. 18” overall length.

Part Number: BB-5
Dimensions: 18
Weight: 0.8

$8.84

Qty


WB-8RH
Click for photos
Replacement brass bristle brush head for WB-8 brush. Screws included.

Part Number: WB-8RH
Dimensions: 18 1/2
Material: stainless steel
Weight: 0.2

$9.45

Qty


==> All GBC1405WV Accessories.
