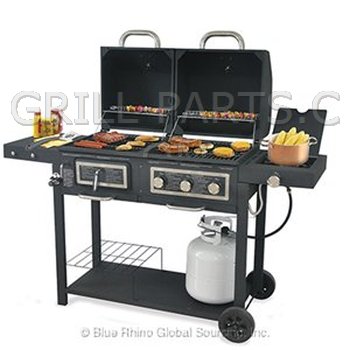

Backyard Grill BY16-101-002-06 Grill Parts

Highest quality replacement parts for your Backyard Grill BY16-101-002-06 - Free USA shipping $49 or more* - No Sales Tax*

Backyard Grill BY16-101-002-06 owners manual and diagrams

Click the small images on the right to view Backyard Grill BY16-101-002-06 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Backyard Grill BY16-101-002-06-38988994493834-PartsExpS1.gif

Replacement grill parts to fit Backyard Grill model: BY16-101-002-06

On this page you'll find all of the parts that fit model Backyard Grill BY16-101-002-06. We might not show the part you need here but we may still have it, or a functional equivalent. In this case, try the category buttons on the right. For example, if your looking for a cooking grid and there are none here, click the cooking grids button to see all of the cooking grids we have for Backyard Grill grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct Backyard Grill BY16-101-002-06 BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Backyard Grill model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

BY16-101-002-06 Burners

Click for photos

stainless steel burner for Backyard Grill model BY16-101-002-06.

Part Number: 19951 (Replaces Backyard Grill 55-24-205)
Dimensions: 14 3/8” x 1”
Material: stainless steel
Weight: 1.0

==> All Backyard Grill Burners.

BY16-101-002-06 Cooking Grids

Click for photos

Cast iron cooking grid for Backyard Grill model BY16-101-002-06. Porcelain treated, matte finish. Sold individually, number required varies by grill model.

Part Number: CG-59P-CI (Replaces Backyard Grill 55-24-206)
Dimension Front-to-Back: 16 3/8”
Dimension Side-to-Side: 9 1/4”
Material: cast iron
Weight: 5.45

==> All Backyard Grill Cooking Grids.

BY16-101-002-06 Heat Plates

Click for photos

Uniflame Heat Plate for Backyard Grill model BY16-101-002-06.

Part Number: UFHP4 (Replaces Backyard Grill 55-24-198)
Dimension Front-to-Back: 14 3/16”
Dimension Side-to-Side: 3 13/16”
Material: stainless steel
Weight: 0.60

==> All Backyard Grill Heat Plates.

BY16-101-002-06 Igniter Components

Click for photos

Burner-mounted ceramic igniter electrode with mounting bracket and hardware.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-20B
Weight: 0.05

==> All Backyard Grill Igniter Components.

BY16-101-002-06 Heat indicators and Meat Thermometers

Click for photos

Round heat indicator.

Single probe
3” diameter
Requires 3/8” mounting hole

Part Number: 00016 (Replaces Backyard Grill 55-24-461)
Dimensions: 3” x 3”
Weight: 0.2

==> All Backyard Grill Heat indicators and Meat Thermometers.

BY16-101-002-06 Accessories

Click for photos

Basting brush with angled oak handle. 18” overall length.

Part Number: BB-5
Dimensions: 18
Weight: 0.8

Click for photos

Replacement brass bristle brush head for WB-8 brush. Screws included.

Part Number: WB-8RH
Dimensions: 18 1/2
Material: stainless steel
Weight: 0.2

==> All BY16-101-002-06 Accessories.
