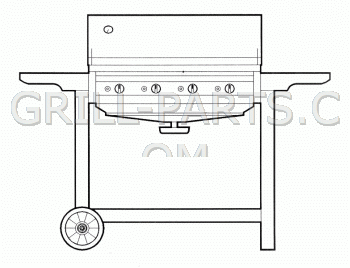

Bakers & Chefs GQ-5001D Grill Parts

Cast stainless steel burner for Bakers & Chefs model GQ-5001D. Tired of changing out rusted cast iron burners? Far superior to the cast iron and brass versions, this burner will probably outlast your grill. Designed to replace cast iron and brass burners of same design.

NOTE: This burner is equiped with an air intake adjustable control shutter (not shown in photos) and with an air intake control screw for regulating the air/gas mixture into the burner. Natural gas applications require more air (more open screw) than lquid propane (LP). If necessary, adjust screw to get a yellow-tipped blue flame.

Part Number: 23301-CSS
Dimensions: 16” x 2 7/16”
Material: cast stainless steel
Weight: 3.2

Cast iron burner for Bakers & Chefs model GQ-5001D.

Part Number: CIT
Dimensions: 15 3/4” x 2 7/8”
Material: cast iron
Weight: 4.2

Premium quality heavy duty stainless steel cooking grid for Bakers & Chefs model GQ-5001D. Our USA-made premium stainless grids are simply the best obtainable. We have them manufactured here in the USA to our specifications and standards, which are high. Of course, they're not available anywhere else.

Unlike the standard issue stainless grids generally found today, which are typically low grade stainless and sometimes hollow, or coated carbon steel, our premium grids are made from solid high quality stainless steel rods. If you're looking for the best, you've found it. Just look at the weight of one of these grids, over 6 pounds of solid stainless each.

• 304 commercial grade stainless steel
• Large diameter 5/16” solid stainless rods
• Dimensions: 19 1/4” x 10 1/4”
• Made in USA.
• Sold individually.

See part CLA-GS0005-X3 for a more economical 3-pack.

Part Number: CLA-GS0005
Dimension Front-to-Back: 19 1/4”
Dimension Side-to-Side: 10 1/4”
Material: stainless steel
Weight: 6.3

Premium quality stainless steel cooking grid for Bakers & Chefs model GQ-5001D. Our USA-made premium stainless grids are simply the best obtainable. We have them manufactured here in the USA to our specifications and standards, which are high. Of course, they're not available anywhere else.

Unlike the standard issue stainless grids generally found today, which are typically low grade stainless and sometimes hollow, or coated carbon steel, our premium grids are made from solid high quality stainless steel rods. If you're looking for the best, you've found it.

• 304 commercial grade stainless steel
• 1/4” diameter solid stainless rods
• Dimensions: 18 7/8” x 10”
• Made in USA.
• Sold individually.

Part Number: CLS9151
Dimension Front-to-Back: 18 7/8”
Dimension Side-to-Side: 10”
Material: solid stainless steel
Weight: 4.0

Cast iron cooking grid for Bakers & Chefs model GQ-5001D.

• Sold inividually
• Porcelain treated, matte finish
• Number required varies by grill model
• Each panel measures 19 1/4” x 10 3/8”

Part Number: CG-69P-CI
Dimension Front-to-Back: 19 1/4”
Dimension Side-to-Side: 10 3/8”
Material: cast iron
Weight: 7.10

Cast iron cooking grids for Bakers & Chefs model GQ-5001D. SET OF THREE (3) panels.

• Porcelain treated, matte finish
• Each panel measures 19 1/4” x 10 3/8”
• Overall dimensions: 19 1/4” x 31 1/8”

Part Number: CG-69P-CI-X3
Dimension Front-to-Back: 19 1/4”
Dimension Side-to-Side: 31 1/8”
Material: cast iron
Weight: 21.3

Replacement steel Flame Tamer for Bakers & Chefs model GQ-5001D. For many models, can also be used to replace ceramic flame tamers and the rack that holds them. Made in USA.

Part Number: CLA1721
Dimension Front-to-Back: 16 7/8”
Dimension Side-to-Side: 9 3/4”
Material: carbon steel
Weight: 3.5

Stainless steel Flame Tamer for Bakers & Chefs model GQ-5001D. For many models, can also be used to replace ceramic flame tamers and the rack that holds them. Made in USA.

Part Number: CLA2721
Dimension Front-to-Back: 16 3/4”
Dimension Side-to-Side: 9 3/4”
Material: stainless steel
Weight: 2.4

Push-button electronic igniter with four (4) spade connectors. Black cap. Uses one AAA battery (not included). Requires a 3/4” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: TS-IG4010
Weight: 0.2

21” wire for side burner or other applications. One female spade connector, one female round connector.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-T14
Dimensions: 21
Weight: 0.05

Stainless steel collector box and ceramic electrode with round connector. Includes mounting nuts and washer.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-17B
Weight: 0.11

Battery powered push button igniter.

• Has four (4) spade type male connectors.
• Uses 1 AAA battery (not supplied)
• Requires 3/4” or 13/16” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IGEIB4-B
Weight: 0.3

20” igniter wire with female spade and round connector.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-7B
Weight: 0.02

46” Wire with female spade connectors and square plastic connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-30B
Dimensions: 46
Weight: 0.1

16” Universal Ignitor Wire

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-48B
Dimensions: 16
Weight: 0.05

Black control knob (Some originals may have been chrome).

• Off position D-Value: 12 o'clock
• Knob diameter: 2 3/16”
• Socket diameter: 6mm
• Knob shaft: None

Part Number: 03430
Dimensions: 2 3/16” x 2 3/16”
Material: plastic
Weight: 0.2

Neoprene valve gasket for clamp-on gas control valves. 19mm.

Part Number: 00019
Dimensions: 0 1/2” x 0 1/4”
Material: neoprene
Weight: 0.01

Clamp-on brass valve with 45° gas outlet.

• D-Value is 6 o'clock
• Stem diameter: 8mm (about 5/16”)
• Orifice included
• Orifice pre-drilled to #59. For LP, this is approximately 11,654 BTU per burner.

Part Number: 3742C
Dimensions: 4 3/8” x 1 5/8”
Material: brass
Weight: 0.5

Wundersmoke Maple Chips. These unique maple wood smoking chips add distinctive maple wood flavoring to your food. For use will all grills. One 1lb bag. Comes with reusable puck.

Part Number: BP-7
Weight: 1.0

EZ Check Gas level indicator. Accurate from -22° to 104°F. Magnetic back. Works on all sizes of tanks.

Part Number: 00030
Weight: 0.1

Stainless steel chicken roaster. Commonly called Beer Can roasters.

• The best way to roast poultry on the grill
• For use in barbecues and ovens
• Dishwasher safe
• Includes rack, rack support, and basting brush

Part Number: 41333
Material: stainless steel
Weight: 0.10

12” long wood handle brass bristle grid brush with scraper and leather hang strap.

Part Number: WB-1
Dimensions: 12
Weight: 0.4
