Brinkmann Pro Series 1470 810-1470-0 Grill Parts

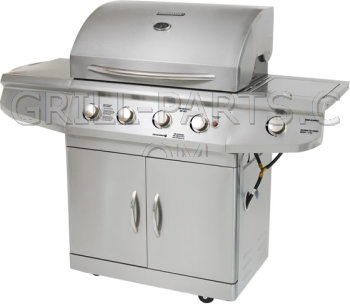

Brinkmann 4-Burner Stainless Steel Gas Grill

Highest quality replacement parts for your Brinkmann Pro Series 1470 810-1470-0 - Free USA shipping $49 or more* - No Sales Tax*

Brinkmann 810-1470-0 owners manual and diagrams

Click the small images on the right to view Brinkmann 810-1470-0 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Brinkmann 810-1470-0-31899862999839-PartsExpS1.gif

Replacement grill parts for Brinkmann Pro Series 1470 (810-1470-0)

All of the parts we have for Brinkmann 810-1470-0 are shown on this page. If you can't find the part you need below, click on the appropriate category button on the right side of the page. For example, if your looking for a heat indicator and there are none here, click the heat indicator button to see all we have for Brinkmann grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct Brinkmann 810-1470-0 BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Brinkmann model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

810-1470-0 Burners

Click for photos

Adjustable universal front-to-back tube burner with top-ported flame holes for Brinkmann model 810-1470-0. This burner may not work with existing ignition electrodes and back burner cross-overs.

Variable length burner adjusts from 13 1/2” to 17 1/2”.
Includes extra hardware and mounting brackets to accommodate almost all grills.
Comes with complete installation instructions and diagrams.

WARNING: Before ordering this universal burner, please verify that it will work in your grill per the specifications above. If you order this universal burner and it does not work in your grill, please review our Return Policy for ”Ordered Wrong Part.” You will be responsible for all shipping fees.

Part Number: FP-BR1001
Material: stainless steel
Weight: 0.7

Click for photos

Stainless steel burner for OEM # 154-9520-0 for Brinkmann model 810-1470-0.

Part Number: BMTB3
Dimensions: 15 5/16
Material: stainless steel
Weight: .70

Click for photos

stainless steel burner for Brinkmann model 810-1470-0.

Part Number: CTB2 (Replaces Brinkmann 812-7140-0)
Dimensions: 16 1/4
Material: stainless steel
Weight: 1.0

==> All Brinkmann Burners.

810-1470-0 Burner Brackets and Carryovers

Click for photos

Stainless steel cross over tube. Channels gas between burners.

Part Number: BMCO4
Dimensions: 2 3/8” x 7 9/16”
Material: stainless steel
Weight: 0.13

Click for photos

Stainless steel burner cross-over tube.

Part Number: 09423 (Replaces Brinkmann 600-9400-3)
Dimensions: 7 5/8” x 2 3/8”
Material: stainless steel
Weight: 0.2

==> All Brinkmann Burner Brackets and Carryovers.

810-1470-0 Cooking Grids

Click for photos

Cast iron cooking grid for Brinkmann model 810-1470-0. Porcelain treated, matte finish. Sold individually, number required varies by grill model.

Part Number: CG-67P-CI
Dimension Front-to-Back: 17 5/8”
Dimension Side-to-Side: 10 3/8”
Material: cast iron
Weight: 6.95

Click for photos

Cast iron cooking grid for Brinkmann model 810-1470-0. Porcelain treated, matte finish. Fits Many Brinkman, Grill King, Kenmore, Master Forge and Other Import Grills. Sold individually, number required varies.

Part Number: CG-73P-CI
Dimension Front-to-Back: 17 5/8”
Dimension Side-to-Side: 8 3/4”
Material: cast iron
Weight: 5.55

==> All Brinkmann Cooking Grids.

810-1470-0 Heat Plates

Click for photos

SET OF FOUR/4 PACK Stainless steel Heat Distribution Plates for Brinkmann model 810-1470-0. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.

Part Number: CLA-TS0135-X4
Dimension Front-to-Back: 15 5/16”
Dimension Side-to-Side: 3 7/8”
Material: stainless steel
Weight: 2.64

Click for photos

Stainless steel Heat Distribution Plate / Flame Tamer for Brinkmann model 810-1470-0.

Part Number: CHMBHP3
Dimension Front-to-Back: 15 3/8”
Dimension Side-to-Side: 3 15/16”
Material: stainless steel
Weight: .66

==> All Brinkmann Heat Plates.

810-1470-0 Igniter Components

Click for photos

Collector box with ceramic electrode and wire.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-22B
Weight: 0.3

==> All Brinkmann Igniter Components.

810-1470-0 Heat indicators and Meat Thermometers

Click for photos

Oval lid heat indicator. Mounts to grill with single 1.25” long threaded temperature probe in center.

Part Number: 072-6800-0 (Replaces Brinkmann 072-7231-0)
Dimensions: 2 15/16” x 1 7/8”
Material: stainless steel
Weight: 0.2

==> All Brinkmann Heat indicators and Meat Thermometers.

810-1470-0 Accessories

Wundersmoke Hickory Chips. These unique hickory wood smoking chips add distinctive hickory wood flavoring to your food. For use will all grills. Comes with reusable puck. One 1lb bag.

Part Number: BP-6
Weight: 1.0

Click for photos

Stainless steel flipper. The ultimate spatula tool, specially curved for perfect flips every time. 18” overall.

Part Number: SF-1
Dimensions: 18
Material: stainless steel
Weight: 0.4

Click for photos

Aluminum foil grilling trays. Package of three.

Heavy duty aluminum foil
Re-usable
Great for grilling delicate foods like fish and veggies

Part Number: 50426
Dimensions: 9” x 13”
Weight: 0.4

Scrub brushes. Plastic grill scrubber. Cleans all types of cooking grids. Plastic grip handle.

Part Number: WB-7
Dimensions: 6” x 3 1/2”
Weight: 0.2

==> All 810-1470-0 Accessories.
