Brinkmann 810-7420-S Grill Parts

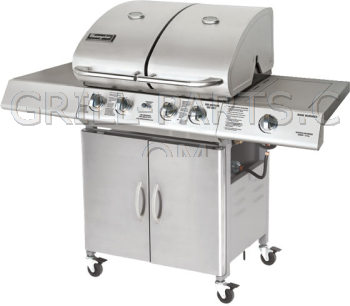

Charmglow 4 Burner Stainless Steel Gas Grill

Highest quality replacement parts for your Brinkmann 810-7420-S - Free USA shipping $49 or more* - No Sales Tax*

Brinkmann 810-7420-S owners manual and diagrams

Diagrams & owners manual not available for grill model# 810-7420-S. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Replacement grill parts for Brinkmann model: 810-7420-S

All of the parts we have for Brinkmann 810-7420-S are shown on this page. If you can't find the part you need below, click on the appropriate category button on the right side of the page. For example, if your looking for a heat indicator and there are none here, click the heat indicator button to see all we have for Brinkmann grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct Brinkmann 810-7420-S BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Brinkmann model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

810-7420-S Burners

Click for photos

Adjustable universal front-to-back tube burner with top-ported flame holes for Brinkmann model 810-7420-S. This burner may not work with existing ignition electrodes and back burner cross-overs.

Variable length burner adjusts from 13 1/2” to 17 1/2”.
Includes extra hardware and mounting brackets to accommodate almost all grills.
Comes with complete installation instructions and diagrams.

WARNING: Before ordering this universal burner, please verify that it will work in your grill per the specifications above. If you order this universal burner and it does not work in your grill, please review our Return Policy for ”Ordered Wrong Part.” You will be responsible for all shipping fees.

Part Number: FP-BR1001
Material: stainless steel
Weight: 0.7

Click for photos

Premium grade 304 stainless burner for Brinkmann model 810-7420-S.

Part Number: CTB3 (Replaces Brinkmann 154-6430-0)
Dimensions: 15 7/8
Material: stainless steel
Weight: 1.0

==> All Brinkmann Burners.

810-7420-S Cooking Grids

Cooking grid not known for Brinkmann model 810-7420-S. Our parts information for this grill model is incomplete, and we really don't know with certainty which cooking grid fits this model. It may be that we have the part but don't show it here due to data or other error.

If you know the original OEM part number, try searching for it in the search box at the top of this page.

You can also browse through all of the Brinkmann cooking grids we carry. If we don't have the exact fit grid for your grill, we may have a suitable replacement part. Measure your existing part as well as the the grid support area of the grill so you'll know exactly what size grids will fit.

If you have this grill model and know the number and dimensions of your original cooking grids, please share this information with us. Click here to send an email to our GrillDr that includes this information. We greatly appreciate your help.

Part Number: CG-DUMMY
Weight: 1.0

==> All Brinkmann Cooking Grids.

810-7420-S Heat Plates

Click for photos

SET OF THREE/3 PACK Stainless steel Heat Distribution Plates/Flame Tamers for Brinkmann model 810-7420-S. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.e.

Part Number: CLA-TS0156-X3
Dimension Front-to-Back: 16 15/16”
Dimension Side-to-Side: 3 15/16”
Material: stainless steel
Weight: 2.1

Click for photos

SET OF FOUR/4 PACK Stainless steel Heat Distribution Plates/Flame Tamers for Brinkmann model 810-7420-S. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.e.

Part Number: CLA-TS0156-X4
Dimension Front-to-Back: 16 15/16”
Dimension Side-to-Side: 3 15/16”
Material: stainless steel
Weight: 2.8

Click for photos

Stainless steel heat distribution plate for Brinkmann model 810-7420-S.

Part Number: BMHP1 (Replaces Brinkmann 600-7310-T)
Dimension Front-to-Back: 16 3/4”
Dimension Side-to-Side: 3 7/8”
Material: stainless steel
Weight: 0.7

==> All Brinkmann Heat Plates.

810-7420-S Igniter Components

Click for photos

Push-button electronic igniter with three (3) spade connectors. Comes with sliver or black cap per availability. Needs (1) AA battery (not included); requires 7/8” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: TS-IG3007 (Replaces Brinkmann 119-4400-5)
Weight: 0.2

Click for photos

Collector box with ceramic igniter electrode and wire.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-21B (Replaces Brinkmann 600-7541-B)
Weight: 0.2

==> All Brinkmann Igniter Components.

810-7420-S Heat indicators and Meat Thermometers

Click for photos

Oval lid heat indicator. Three-hole mount with two threaded studs 1 1/2” offset on center. Requires 3/8” center hole for temperature sensor probe.

Part Number: 22551 (Replaces Brinkmann 072-7310-0)
Dimensions: 2 15/16” x 1 7/8”
Weight: 0.2

==> All Brinkmann Heat indicators and Meat Thermometers.

810-7420-S Accessories

Wundersmoke Hickory Chips. These unique hickory wood smoking chips add distinctive hickory wood flavoring to your food. For use will all grills. Comes with reusable puck. One 1lb bag.

Part Number: BP-6
Weight: 1.0

Click for photos

15” Stainless steel tong.

Soft comfort grip
Locking mechanism

Part Number: 40259
Dimensions: 15
Material: stainless steel
Weight: 0.14

Click for photos

Aluminum foil grilling trays. Package of three.

Heavy duty aluminum foil
Re-usable
Great for grilling delicate foods like fish and veggies

Part Number: 50426
Dimensions: 9” x 13”
Weight: 0.4

==> All 810-7420-S Accessories.
