Broil King Crown 70 949-77 Grill Parts

Broil King logo

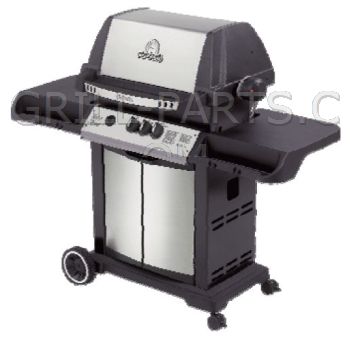

Broil King 949-77



Highest quality replacement parts for your Broil King Crown 70 949-77 - Free USA shipping $49 or more* - No Sales Tax*



Broil King 949-77 owners manual and diagrams
Click the small images on the right to view Broil King 949-77 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!



Broil King 949-77-306002233-PartsExpS1.gif  Broil King 949-77-306002233-PartsExpS1.jpg  Broil King 949-77-306002233-PartsLstS1.gif  Broil King 949-77-306002233-PartsLstS1.jpg  Broil King 949-77-306002233-PartsLstS2.gif

Replacement BBQ grill parts for Broil King Crown 70 949-77
On this page you'll find all of the parts that fit model Broil King 949-77. If the part you're shopping for isn't included below, you might find it using the category buttons on the right side of the page. For example, if your looking for a warming rack and there are none here, click the warming rack button to see all of the racks we have for Broil King grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Broil King 949-77 BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Broil King model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



949-77 Burners

10390-T501
Click for photos
Genuine OEM Broil King stainless steel Infinity burner assembly for Broil King model 949-77. This burner assembly does not include the electrodes. Includes:
  • One stainless steel Infinity burner
  • Twin venturi with spider exclusion screens


Part Number: 10390-T501
Dimensions: 8” x 20”
Material: Stainless steel
Weight: 3.2

$74.30

Qty


S13005A
Click for photos
Genuine OEM Broil King stainless steel rotisserie burner assembly for Broil King model 949-77.
    Includes:
  • 26 3/16” SS rotisserie burner with deflector (part# S13005)
  • Burner-mounted electrode, gas collector box, and 45” wire
  • Completely assembled


Part Number: S13005A
Dimensions: 26 3/16”
Weight: 1.10

$34.40

Qty


==> All Broil King Burners.






949-77 Cooking Grids

10225-T436
Click for photos
Genuine OEM Broil King reversible heavy cast iron cooking grid SOLD INDIVIDUALLY for Broil King model 949-77.
  • Sold individually
  • Number required varies, check your grill
  • Porcelain treated, flat matte finish
  • Pointed side is designed for perfect sear marks
  • Grooved side captures juices for continuous basting

Note: See part 10225-E404 for a stainless steel version of this grid.



Part Number: 10225-T436
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 12 3/4”
Material: Cast iron
Weight: 7.6

$49.30

Qty


10225-E404
Click for photos
Genuine OEM Broil King stainless steel cooking grid for Broil King model 949-77. SOLD INDIVIDUALLY. Number required varies, check your grill to be sure.

Part Number: 10225-E404
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 12 3/4”
Material: Stainless steel
Weight: 5.10

$84.73

Qty


==> All Broil King Cooking Grids.






949-77 Heat Plates

10222-T425
Click for photos
Genuine OEM Broil King stainless steel Flav-R-Wave heat plate for Broil King model 949-77. Also replaces porcelain-steel part# 10222-T424, which has been discontinued by the manufacturer.

Part Number: 10222-T425
Dimension Front-to-Back: 11 1/4”
Dimension Side-to-Side: 23”
Material: Stainless steel
Weight: 3.0

$49.60

Qty


==> All Broil King Heat Plates.






949-77 Heat Shields

10184-R80
Click for photos
Radiation shield.

Part Number: 10184-R80
Dimensions: 9 1/4” x 20 3/4”
Material: stainless steel
Weight: 1.72

$19.68

Qty


==> All Broil King Heat Shields.






949-77 Igniter Components

10342-244
Click for photos
Electronic push-button 1-spade igniter.
  • Uses AAA battery (not included)
  • Requires 3/4” mounting hole
  • Also replaces part 10342-248

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 10342-244
Weight: 0.3

$16.95

Qty


10342-T301
Click for photos
Genuine OEM Broil King collector box and electrode assembly. Includes:
  • burner mounted box with mounting screw
  • ceramic electrode and 17” wire with round connector and protective sleeve
  • Use with burners 10390-T401 (14102) and 10390-T501 (14212)

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 10342-T301
Weight: 0.05

$10.95

Qty


==> All Broil King Igniter Components.






949-77 Grease Trays

S15115
Click for photos
Genuine OEM Broil King disposable grease pans. Package of 10. Each measures 4.75”x6”x1”.

Part Number: S15115
Dimensions: 4 3/4” x 6”
Material: aluminum
Weight: 0.25

$15.13

Qty


==> All Broil King Grease Trays.






949-77 Knobs and Handles

10472-K431
Click for photos
CONTROL KNOB RESIN LRG BLACK -- W/SS BA STRIP

Part Number: 10472-K431
Weight: 0.1

$5.15

Qty


10239-390
Click for photos
Phenolic handle stand-off for left hand side.

Part Number: 10239-390
Weight: 0.1

$2.23

Qty


10239-391
Click for photos
Phenolic handle stand-off for right hand side.

Part Number: 10239-391
Weight: 0.1

$2.23

Qty


==> All Broil King Knobs and Handles.






949-77 Regulators and Hoses

10111-K45
Click for photos
Genuine OEM Broil King NG gas hose.

Part Number: 10111-K45
Weight: 2.1

$88.64

Qty


==> All Broil King Regulators and Hoses.






949-77 Wheels and Castors

10892-7G
Click for photos
Genuine OEM Broil King 7” cart wheel with 3/8” axel hole. Mini hub cap is # 00400251, sold separately.

Part Number: 10892-7G
Weight: .45

$13.19

Qty


10892-15
Click for photos
Genuine OEM Broil King caster wheel; approximately 2 3/8” diameter.

Part Number: 10892-15
Weight: 0.35

$7.23

Qty


==> All Broil King Wheels and Castors.






949-77 Warming Racks

10225-E390
Click for photos
Genuine OEM Broil King chrome steel warming rack.

Part Number: 10225-E390
Dimensions: 10 1/4” x 23 5/8”
Material: Nickel/Chrome
Weight: 3.10

$51.12

Qty


==> All Broil King Warming Racks.






949-77 Heat indicators and Meat Thermometers

10571-6
Click for photos
Genuine OEM Broil King Heat indicator. About 2 3/8” wide and 2” high. The threaded stem is about 5 /16” diameter and 1 1/8” long.

Part Number: 10571-6
Weight: 0.12

$17.76

Qty


==> All Broil King Heat indicators and Meat Thermometers.






949-77 Miscellaneous Repair Parts

S21233
Click for photos
Hinge pin clip.

Part Number: S21233
Weight: 0.01

$1.08

Qty


S21362
Click for photos
REAR BURNER SPRING

Part Number: S21362
Weight: 1.0

$1.08

Qty


S21420
Click for photos
Push nut 3/8

Part Number: S21420
Weight: 0.1

$2.23

Qty


==> All Broil King Miscellaneous Repair Parts.






949-77 Cart Parts

10184-E78A
Click for photos
Genuine OEM Broil King End Cap, door. Left hand side, with magnet.

Part Number: 10184-E78A
Weight: 0.36

$6.15

Qty


10184-E76
Click for photos
END CAP DOOR BOTTOM LEFT A

Part Number: 10184-E76
Weight: .25

$5.73

Qty


10184-E79A
Click for photos
Genuine OEM Broil King End Cap, door. RIght hand side, with magnet.

Part Number: 10184-E79A
Weight: 0.36

$6.15

Qty


10184-E77
Click for photos
END CAP DOOR BOTTOM RIGHT A

Part Number: 10184-E77
Weight: .25

$5.73

Qty


==> All Broil King Cart Parts.






949-77 Shelves

10184-E461
Click for photos
SHELF SUPPORT LH BLK

Part Number: 10184-E461
Weight: 1.0

$7.02

Qty


==> All Broil King Shelves.






949-77 Accessories

WB-1
12” long wood handle brass bristle grid brush with scraper and leather hang strap.

Part Number: WB-1
Dimensions: 12
Weight: 0.4

$10.90

Qty


==> All 949-77 Accessories.
