Broil-Mate 4559-7 Grill Parts

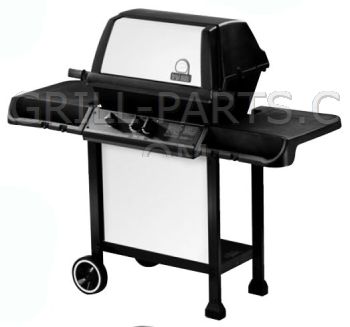

Broil-Mate 4559-7

Highest quality replacement parts for your Broil-Mate 4559-7 - Free USA shipping $49 or more* - No Sales Tax*

Broil-Mate 4559-7 owners manual and diagrams

Click the small images on the right to view Broil-Mate 4559-7 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Broil-Mate 4559-7-464400233-PartsExpS1.gif

Broil-Mate 4559-7-464400233-PartsLstS1.gif

Broil-Mate 4559-7-464400233-PartsLstS2.gif

Replacement grill parts for the Broil-Mate model: 4559-7

All of the parts we have for Broil-Mate 4559-7 are shown on this page. We might not show the part you need here but we may still have it, or a functional equivalent. In this case, try the category buttons on the right. For example, if your looking for a heat indicator and there are none here, click the heat indicator button to see all we have for Broil-Mate grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct Broil-Mate 4559-7 BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Broil-Mate model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

4559-7 Burners

S10017

Click for photos

Genuine OEM Broil-Mate stainless steel burner and venturi assembly for Broil-Mate model 4559-7. Includes burner-mounted igniter electrode and wire part# S15500. Fully assembled.

Part Number: S10017
Dimensions: 8” x 20 1/2”
Material: Stainless steel
Weight: 3.5

==> All Broil-Mate Burners.

4559-7 Cooking Grids

S12024

Click for photos

Two level 304 grade stainless steel cooking grid SOLD INDIVIDUALLY

Sold individually
Number required varies, check your grill

for Broil-Mate model 4559-7.

Part Number: S12024
Dimension Front-to-Back: 15 1/4”
Dimension Side-to-Side: 11”
Material: Stainless steel
Weight: 6.3

==> All Broil-Mate Cooking Grids.

4559-7 Heat Plates

10222-T425

Click for photos

Genuine OEM Broil-Mate stainless steel Flav-R-Wave heat plate for Broil-Mate model 4559-7. Also replaces porcelain-steel part# 10222-T424, which has been discontinued by the manufacturer.

Part Number: 10222-T425
Dimension Front-to-Back: 11 1/4”
Dimension Side-to-Side: 23”
Material: Stainless steel
Weight: 3.0

==> All Broil-Mate Heat Plates.

4559-7 Igniter Components

10342-244

Click for photos

Electronic push-button 1-spade igniter.

Uses AAA battery (not included)
Requires 3/4” mounting hole
Also replaces part 10342-248

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-244
Weight: 0.3

S15500

Click for photos

Genuine OEM Broil-Mate collector box and electrode assembly. Includes

burner mounted collector box (clip on)
ceramic electrode and 18” wire with round connector and protective sleeve.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: S15500
Weight: 0.1

==> All Broil-Mate Igniter Components.

4559-7 Grease Trays

S15111

Click for photos

Stainless steel wire grease cup holder for mini bucket #S15112 which has been discontinued and replaced with mini bucket # 4673-FC. This wire holder can also be used with tin cans for easy disposal of grease.

Part Number: S15111
Material: stainless steel
Weight: 0.02

==> All Broil-Mate Grease Trays.

4559-7 Knobs and Handles

10239-7

Click for photos

Triangular handle washer. 1/8 in thick. Made of heat resistant compressed material.

Part Number: 10239-7
Dimensions: 1 1/2” x 1 1/4”
Weight: 0.05

==> All Broil-Mate Knobs and Handles.

4559-7 Regulators and Hoses

10111-K45

Click for photos

Genuine OEM Broil-Mate NG gas hose.

Part Number: 10111-K45
Weight: 2.1

==> All Broil-Mate Regulators and Hoses.

4559-7 Wheels and Castors

10892-7G

Click for photos

Genuine OEM Broil-Mate 7” cart wheel with 3/8” axel hole. Mini hub cap is # 00400251, sold separately.

Part Number: 10892-7G
Weight: .45

==> All Broil-Mate Wheels and Castors.

4559-7 Warming Racks

CLA-WS0192

Click for photos

Premium grade stainless steel warming rack. This rack made to replace part numbers S12205, S12206, and S12207, which are no longer available from the manufacturer. Made in USA

Part Number: CLA-WS0192
Dimensions: 10 1/2” x 23 1/8”
Material: stainless steel
Weight: 4.8

==> All Broil-Mate Warming Racks.

4559-7 Heat indicators and Meat Thermometers

10571-6

Click for photos

Genuine OEM Broil-Mate Heat indicator. About 2 3/8” wide and 2” high. The threaded stem is about 5 /16” diameter and 1 1/8” long.

Part Number: 10571-6
Weight: 0.12

==> All Broil-Mate Heat indicators and Meat Thermometers.

4559-7 Miscellaneous Repair Parts

S21233

Click for photos

Hinge pin clip.

Part Number: S21233
Weight: 0.01

Y-6616

Click for photos

Bolt

Part Number: Y-6616
Weight: 0.02

==> All Broil-Mate Miscellaneous Repair Parts.

4559-7 Shelves

10184-E461

Click for photos

SHELF SUPPORT LH BLK

Part Number: 10184-E461
Weight: 1.0

==> All Broil-Mate Shelves.

4559-7 Accessories

FS-1

Click for photos

Fish Spatula. Stainless steel fish spatula with genuine rosewood handle. 18 1/2”. 10” spatula width.

Part Number: FS-1
Dimensions: 18 1/2
Material: stainless steel
Weight: 1.0

BRGG

Click for photos

Universal Grid Lifting Tool

Part Number: BRGG
Weight: 1.0

WB-3

18” long wood handle brass bristle grid brush with scraper and leather hang strap.

Part Number: WB-3
Dimensions: 18
Weight: 0.59

==> All 4559-7 Accessories.
