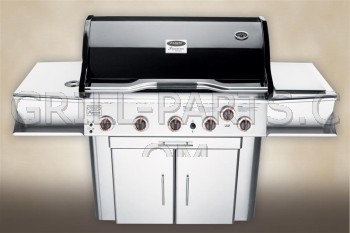

Vermont Castings Signature VCS5017 Grill Parts

Burner mounting plate for Vermont Castings model VCS5017. This part is used to reinforce the front grill housing so the burner can be mounted to the grill. In some cases, the grill housing has rusted or corroded such that the burner cannot be properly mounted to the front of the grill.

• Sold individually, number required varies. Use one per burner.
• Includes mounting bolt and nut
• Includes extra holes for mounting to grill, if necessary.
• Comes with complete installation instructions.

For models:

• CF9080/85/86
• VCS300/3500/35BI/4000/4005/5000/5005/5010/50BI
• VCS3507/4007/5007/3507BI/5007BI

Made in USA

Part Number: CLA-MS0227
Dimensions: 3 3/4” x 4 15/16”
Material: stainless steel
Weight: 0.11

Burner mounting plate for Vermont Castings model VCS5017. This part is used to reinforce the front grill housing so the burner can be mounted to the grill. In some cases, the grill housing has rusted or corroded such that the burner cannot be properly mounted to the front of the grill.

• Premium grade stainless steel
• Includes gasket and mounting screw
• Comes with complete installation instructions
• Sold individually.

For models:

• CF9080/85/86
• VCS300/3500/35BI/4000/4005/5000/5005/5010/50BI
• VCS3507/4007/5007/3507BI/5007BI

Part Number: 03501
Dimensions: 3 3/4” x 4”
Material: stainless steel
Weight: 0.16

Commercial premium grade stainless steel burner for Vermont Castings model VCS5017.


Part Number: VTB1 (Replaces Vermont Castings 50003100)
Dimensions: 17
Material: stainless steel
Weight: 1.0

Stainless steel Flash Tube burner support bracket. Made in USA.

Part Number: CLA-MS0112 (Replaces Vermont Castings 50001300B)
Dimensions: 2” x 13 1/4”
Material: stainless steel
Weight: 0.30

Cast iron cooking grid for Vermont Castings model VCS5017. Porcelain treated, matte finish. Sold individually, number required varies by grill model.

Part Number: CG-59P-CI (Replaces Vermont Castings 50001767)
Dimension Front-to-Back: 16 3/8”
Dimension Side-to-Side: 9 1/4”
Material: cast iron
Weight: 5.45

SET OF THREE/3 PACK Stainless steel Flame Tamer for Vermont Castings model VCS5017. Sold individually, number required varies. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.

Part Number: CLA-TS0016-X3
Dimension Front-to-Back: 14 1/2”
Dimension Side-to-Side: 7 1/4”
Material: stainless steel
Weight: 3.6

Stainless steel Flame Tamer for Vermont Castings model VCS5017. Sold individually, number required varies. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.

Part Number: CLA-TS0016 (Replaces Vermont Castings 50000777)
Dimension Front-to-Back: 14 1/2”
Dimension Side-to-Side: 7 1/4”
Material: stainless steel
Weight: 1.3

Universal two outlet rotary spark generator. Includes knob and hardware.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: UP-6B (Replaces Vermont Castings 50000111)
Weight: 0.3

Burner-mounted ceramic igniter electrode with mounting bracket and hardware.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-20B (Replaces Vermont Castings 50000431)
Weight: 0.05

Stainless steel grease tray. Made in USA.

NOTE: Please measure your old grease tray to insure you're ordering the correct part. Vermont Castings made these in several lengths, two of which we currently offer.

Part Number: CLA-DG0068 (Replaces Vermont Castings 50002157)
Dimensions: 8 1/2” x 33 3/4”
Material: stainless steel
Weight: 4.4

Five piece 3/8” natural gas quick disconnect set includes:

• Part ASCPL-2 12ft vinyl 3/8” ID Sturgis hose (3/8” inside diameter outside diameter about 1/2”) with solid brass fittings
• Part ASCPL-3 Sturgis brand 3/8” quick connect brass coupler
• Hansen & Sturgis dust cover
• plastic dust plug
• Plastic 3/8 MPT Snap Tite
• Suitable up to approximately 60,000 BTU.

Part Number: ASCPL-1
Weight: 3.0

Brass 3/8” Sturgis quick connect coupler for use with hose part# ASCPL-2 (sold separately). Also, see part# ASCPL-1 for hose and coupler set.

Part Number: ASCPL-3
Weight: 0.4

12ft vinyl 3/8” ID natural gas Sturgis hose (inside diameter 3/8” and outside diameter about 1/2”) with solid brass fittings. Use with brass coupler part# ASCPL-3 (not included). See part# ASCPL-1 for hose and coupler set.

Part Number: ASCPL-2 (Replaces Vermont Castings 50000198)
Weight: 2.5

Heat indicator. About 2 3/8” wide and 2” high. The threaded stem is about 5 /16” diameter and 1 1/8” long.

Part Number: 10571-6
Weight: 0.12

Wundersmoke Maple Chips. These unique maple wood smoking chips add distinctive maple wood flavoring to your food. For use will all grills. One 1lb bag. Comes with reusable puck.

Part Number: BP-7
Weight: 1.0

Stainless steel flipper. The ultimate spatula tool, specially curved for perfect flips every time. 18” overall.

Part Number: SF-1
Dimensions: 18
Material: stainless steel
Weight: 0.4

EZ Check Gas level indicator. Accurate from -22° to 104°F. Magnetic back. Works on all sizes of tanks.

Part Number: 00030
Weight: 0.1

Stainless steel chicken roaster. Commonly called Beer Can roasters.

• The best way to roast poultry on the grill
• For use in barbecues and ovens
• Dishwasher safe
• Includes rack, rack support, and basting brush

Part Number: 41333
Material: stainless steel
Weight: 0.10

Scrub brushes. Plastic grill scrubber. Cleans all types of cooking grids. Plastic grip handle.

Part Number: WB-7
Dimensions: 6” x 3 1/2”
Weight: 0.2
