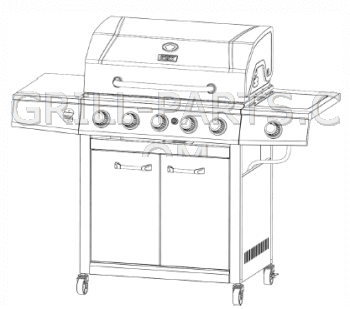

Backyard Grill GBC1460W Grill Parts

Highest quality replacement parts for your Backyard Grill GBC1460W - Free USA shipping $49 or more* - No Sales Tax*

Backyard Grill GBC1460W owners manual and diagrams

Click the small images on the right to view Backyard Grill GBC1460W exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Backyard Grill GBC1460W-4E658639931-PartsExpS1.gif

Replacement grill parts to fit Backyard Grill model: GBC1460W

On this page you'll find all of the parts that fit model Backyard Grill GBC1460W. If the part you need is not shown below, try clicking the appropriate category button on the right side of the page. For example, if your looking for a warming rack and there are none here, click the warming rack button to see all of the racks we have for Backyard Grill grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Backyard Grill GBC1460W BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Backyard Grill model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

GBC1460W Burners

Stainless steel burner for Backyard Grill model GBC1460W.

Part Number: 19981 (Replaces Backyard Grill 55-23-014)
Dimensions: 17 7/16” x 1”
Material: stainless steel
Weight: 0.6

==> All Backyard Grill Burners.

GBC1460W Cooking Grids

Click for photos

Cast iron cooking grids for Backyard Grill model GBC1460W. Porcelain enameled, glossy finish. Sold as a set of three (3).

Part Number: 61593 (Replaces Backyard Grill 55-22-327)
Dimension Front-to-Back: 16 1/4”
Dimension Side-to-Side: 29 5/8”
Material: gloss cast iron
Weight: 11.3

==> All Backyard Grill Cooking Grids.

GBC1460W Heat Plates

Click for photos

UniFlame Grills Stainless Steel Heat Plate for Backyard Grill model GBC1460W.

Part Number: UFHP2 (Replaces Backyard Grill 55-10-156)
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 3 3/4”
Material: stainless steel
Weight: 1.0

==> All Backyard Grill Heat Plates.

GBC1460W Igniter Components

Click for photos

Battery powered push button igniter.

Has six (6) spade type male connectors.
Uses 1 AA battery (not supplied)
Requires 7/8” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IGEIB6-B (Replaces Backyard Grill 55-10-526)
Weight: 0.3

Click for photos

46” Wire with female spade connectors and square plastic connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-30B
Dimensions: 46
Weight: 0.1

Click for photos

Burner-mounted ceramic igniter electrode with mounting bracket and hardware.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-20B
Weight: 0.05

==> All Backyard Grill Igniter Components.

GBC1460W Grease Trays

Click for photos

Stainless steel grease tray; has drip hole and includes grease cup and grease cup holder. Made in USA.

Part Number: CLA-DS0248 (Replaces Backyard Grill 55-11-017)
Dimensions: 15” x 28 9/16”
Material: stainless steel
Weight: 4.5

==> All Backyard Grill Grease Trays.

GBC1460W Heat indicators and Meat Thermometers

Click for photos

Oval lid heat indicator. Mounts to grill with single 1.25” long threaded temperature probe in center.

Part Number: 072-6800-0 (Replaces Backyard Grill 55-09-146)
Dimensions: 2 15/16” x 1 7/8”
Material: stainless steel
Weight: 0.2

==> All Backyard Grill Heat indicators and Meat Thermometers.

GBC1460W Accessories

Click for photos

Stainless steel flipper. The ultimate spatula tool, specially curved for perfect flips every time. 18” overall.

Part Number: SF-1
Dimensions: 18
Material: stainless steel
Weight: 0.4

Scrub brushes. Plastic grill scrubber. Cleans all types of cooking grids. Plastic grip handle.

Part Number: WB-7
Dimensions: 6” x 3 1/2”
Weight: 0.2

==> All GBC1460W Accessories.
